48 18-09-2007 122770 06

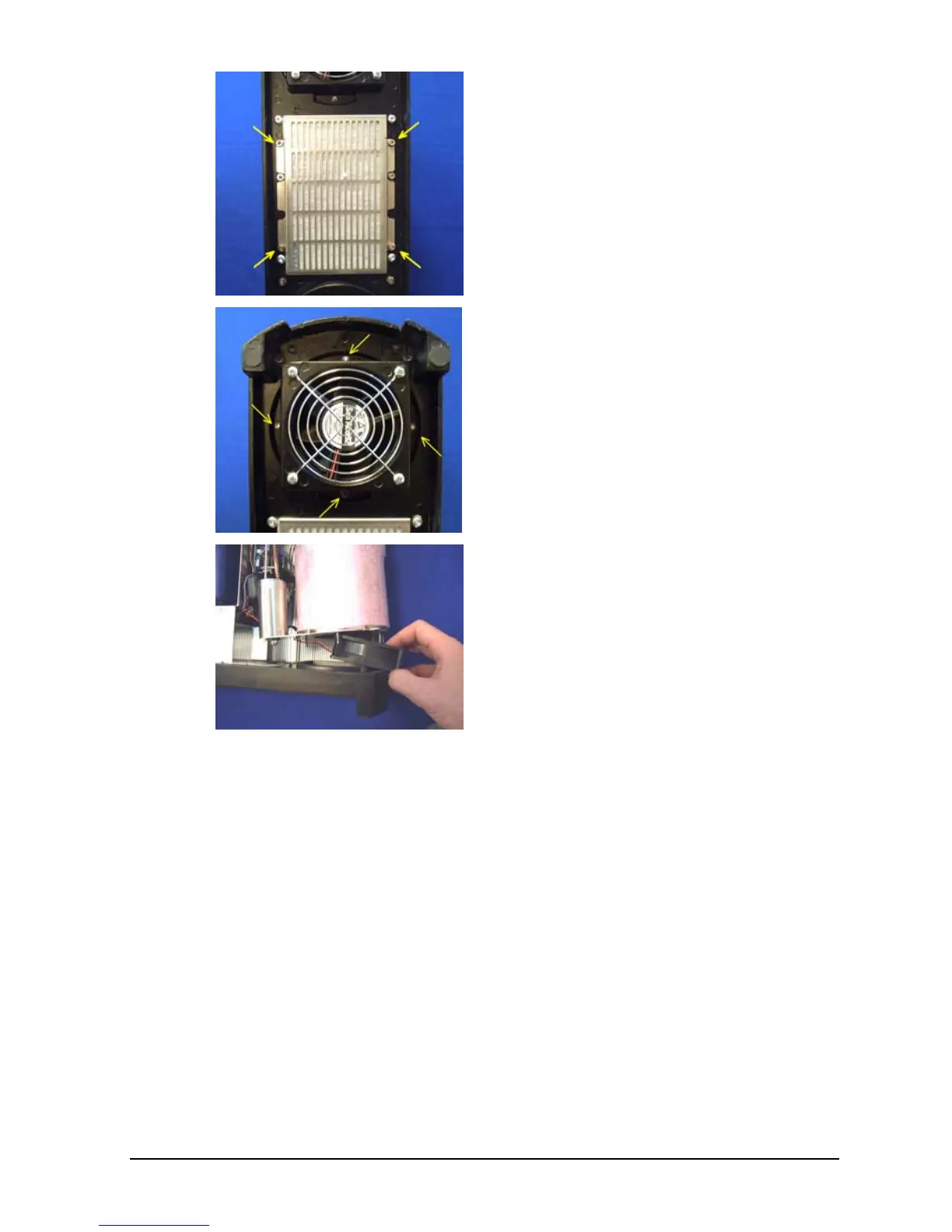

Remove the air filter by loosening
the 4 screws holding it.
If the air filter is dirty, replace it.
Now loosen the 4 nuts holding the
Stirling engine.
Lift the Stirling engine as little as
possible to slide out the fan, max.
5cm.
H. Removal of Transformer
(Exploded views, pos. 11)
First follow steps A through D followed by retraction of the
two aluminium plates as described in the guidelines above.
