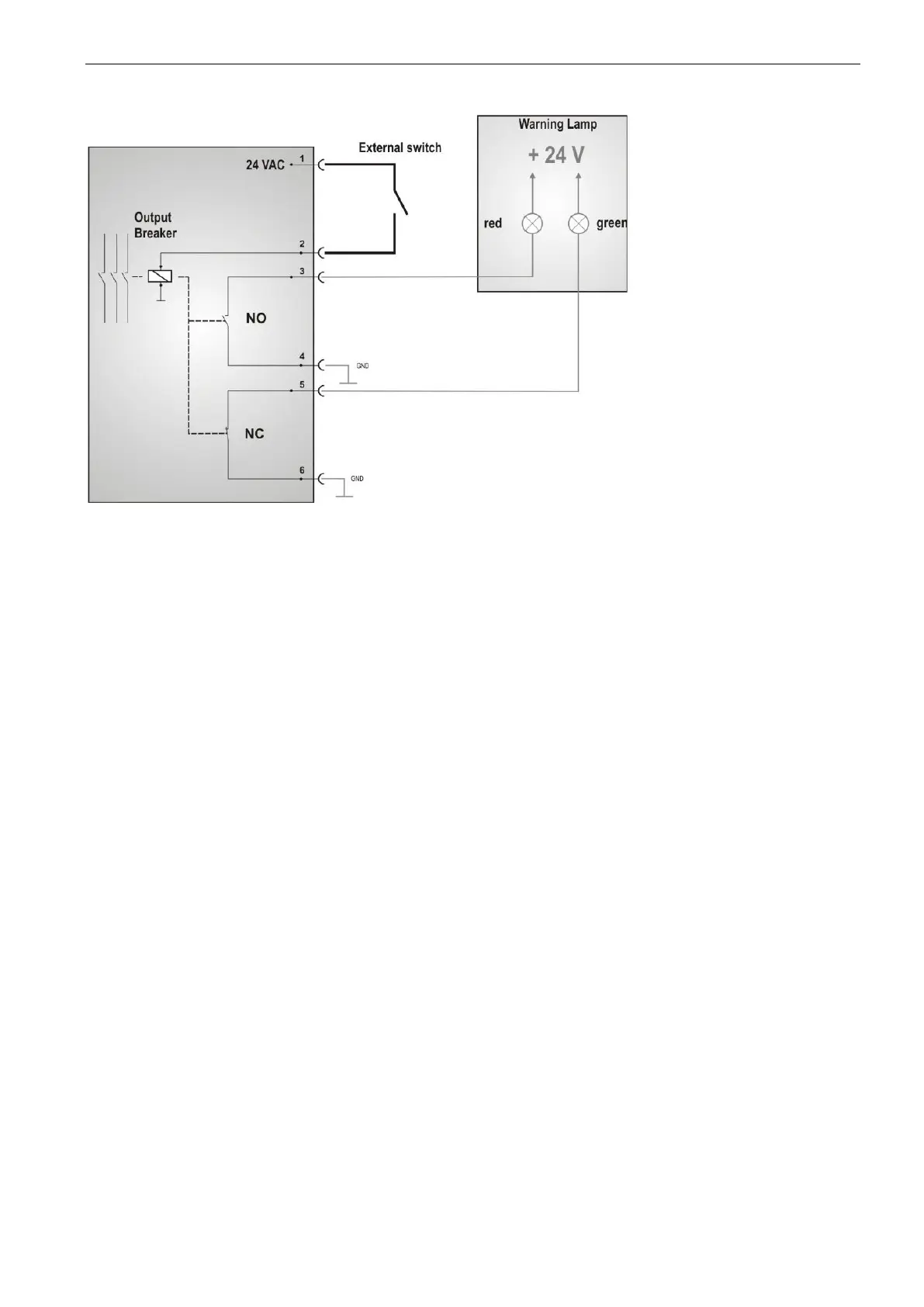

Possible connection diagram for external switch and warning lamp using
The external switch closes the 24 VAC control signal to the output breaker. In parallel two auxiliary relays are
connected that indicate the status of the output breaker.
