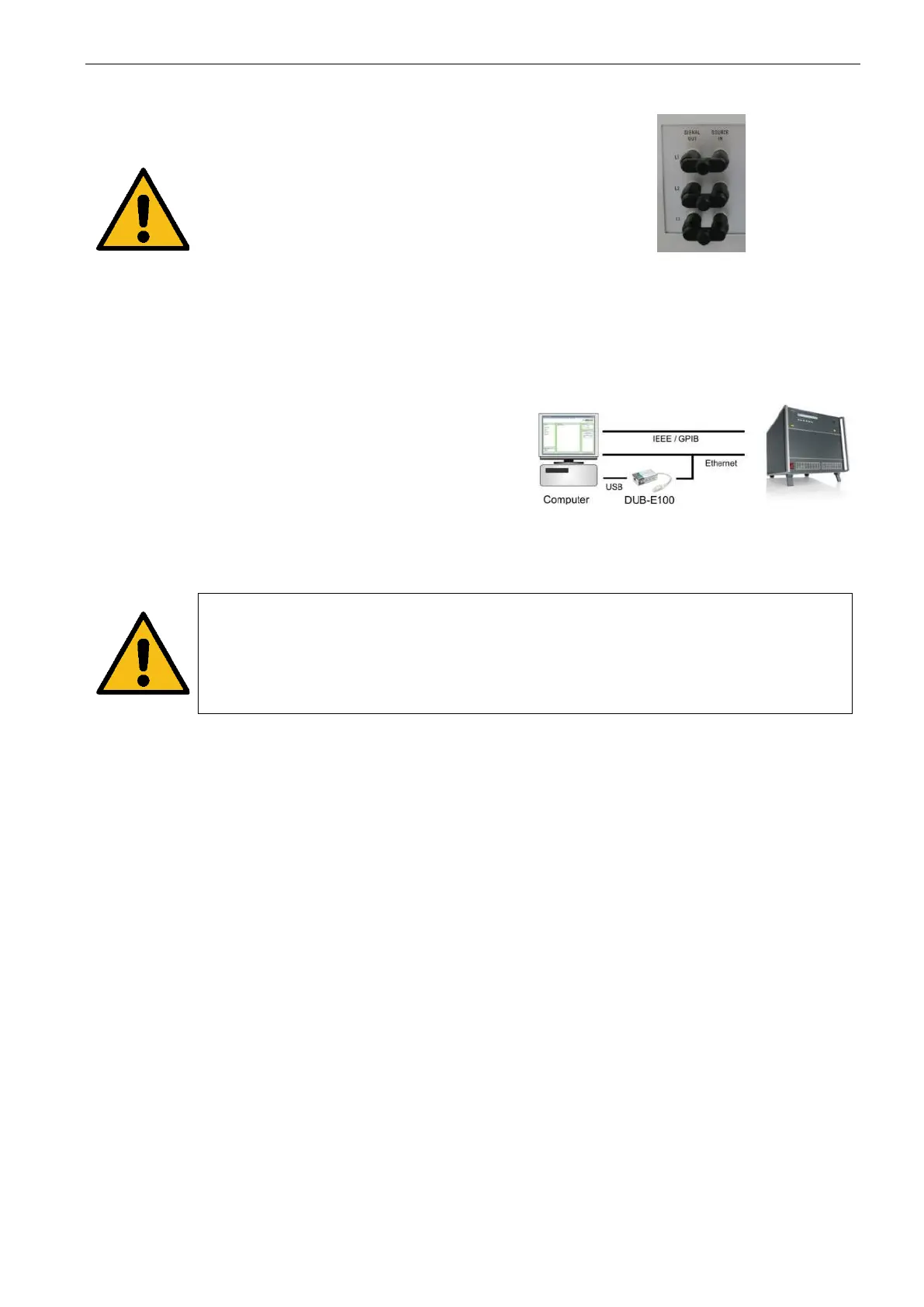

3.6.9. Control cable wiring
Note
1. Signal control cable
Make sure that the bridges for L1, L2, L3
SIGNAL OUT to SOURCE IN
are connected.
2. Computer – NetWave control cable
There are two solutions to connect the computer to the
NetWave.
- Ethernet connection
- IEEE connection
Connection to
Standalone equipment
- Ethernet
- USB via USB-Ethernet adapter (direct
cable)
Rack with other equipment
– IEEE 488 / GPIB
Note
Ethernet cables
Check the correct cable wiring when using ethernet cables.
- Direct => normal straight cable
- USB-Ethernet Adapter => direct cable
