AMETEK CTs NetWave

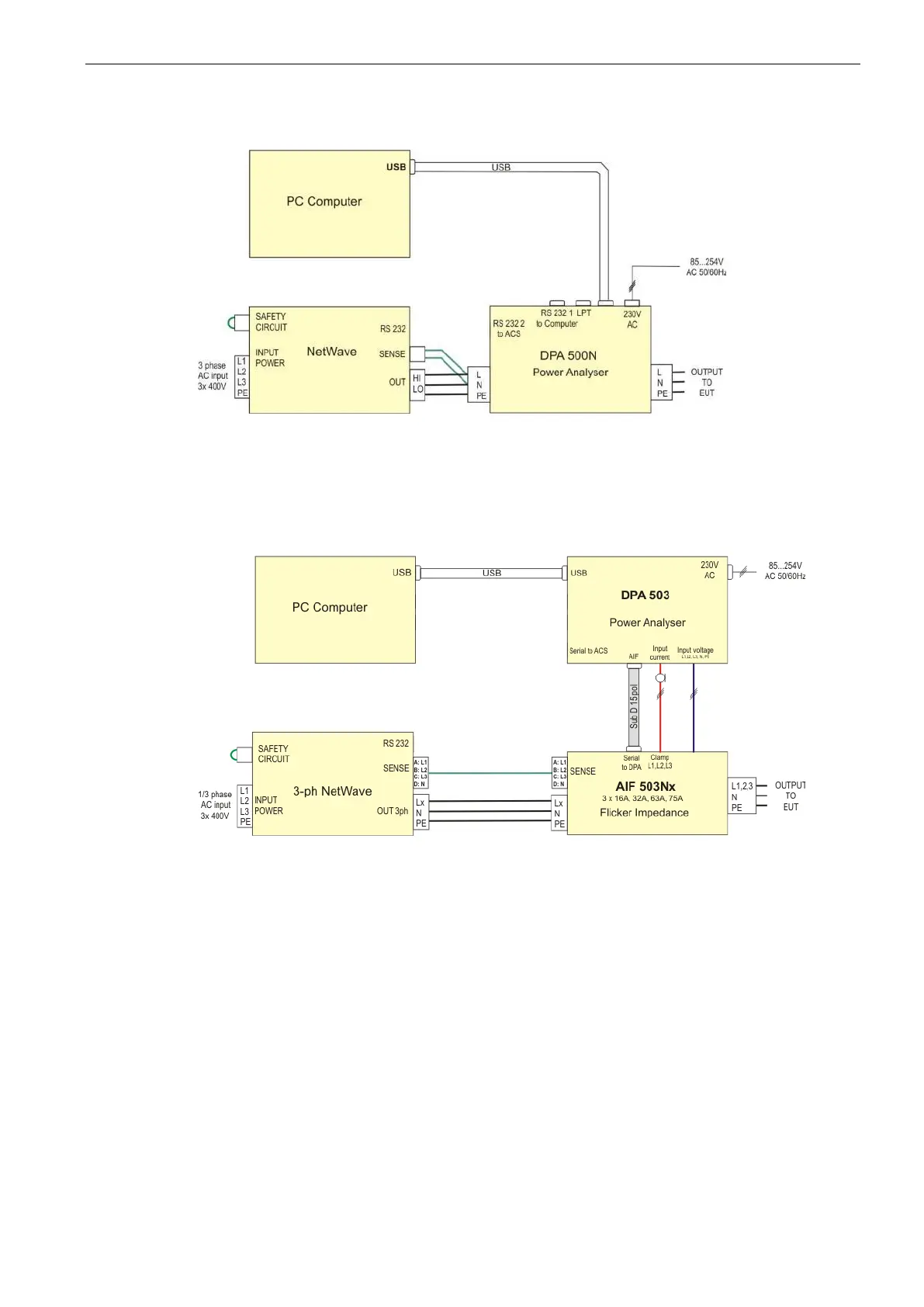

3.6.15. Power cable wiring for Harmonic and Flicker Application
1-phase system
Example for the cabling with using the DPA 500N Harmonic and Flicker analyzer.
3-phase system
Example for the cabling with using DPA 503 Harmonic and Flicker analyzer.
