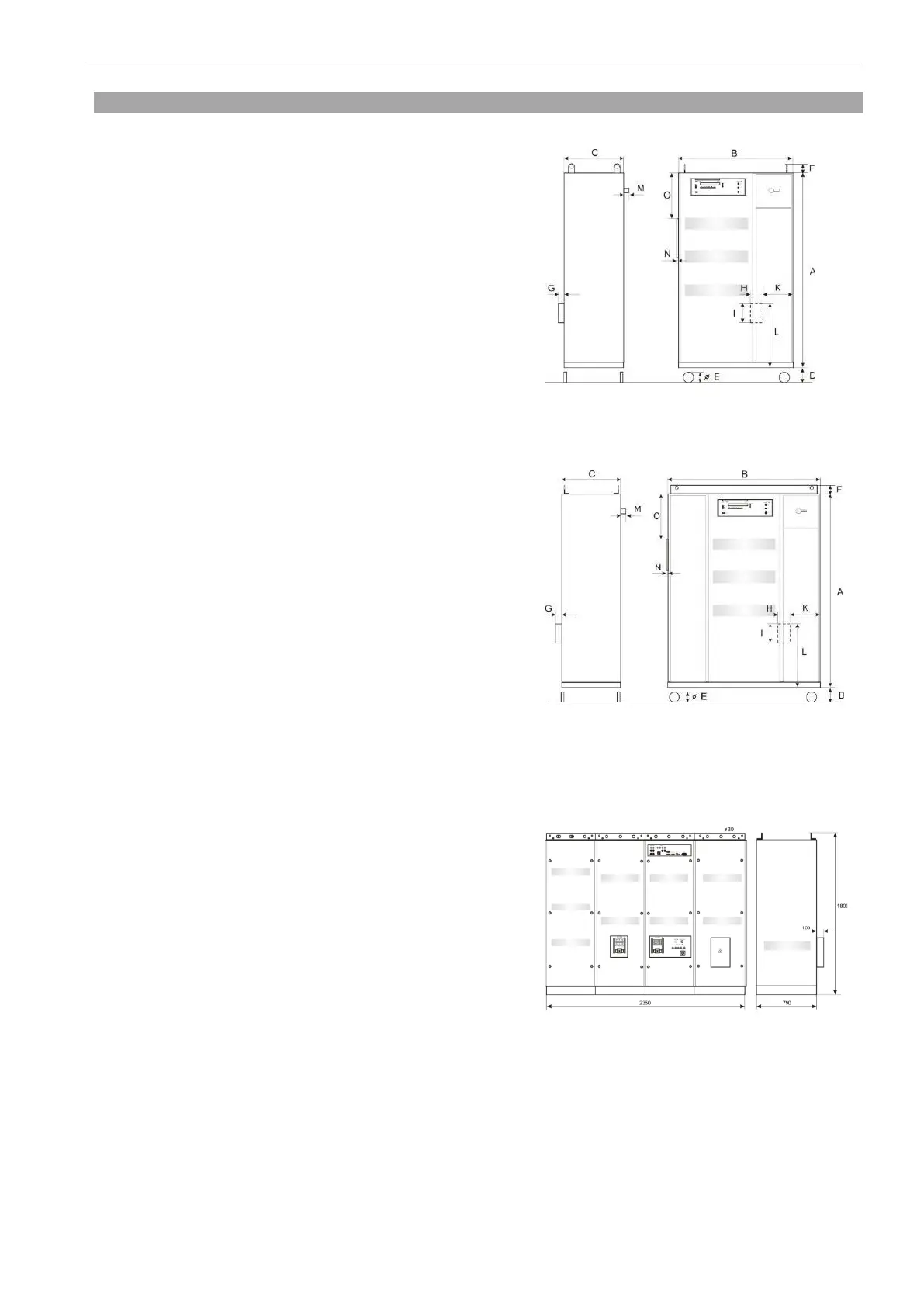

Dimension
NetWave 20.x / 30.x recovery
A height (rolls+crane support) 1560 (1784) 1560 (1784)
B width 930 1210
C deep (over all C+G+M) 630 (755) 630 (755)
D height with rolls 154 154
E rolls diameter 125 125
F crane support (removable) 70 80
G Power IN 85 85
H width power IN 130 130
I height power IN 170 170
K dist. power IN 345 345
L dist. power IN 490 490
M main switch 40 40
N air IN distance h na 25
O air in distance na 230
NetWave 60.x / 67.x recovery
A height (rolls+crane support) 1800 (2080) 1800 (2080)
B width 1205 1615
C deep (over all C+G+M) 800 (970) 800 (970)
D height with rolls 200 200
E rolls diameter 160 160
F crane support (removable) 80 80
G Power IN 100 100
H width power IN 200 200
I height power IN 300 300
K dist. power IN 215 215
L dist. power IN 785 785
M main switch 70 70
N air IN distance h 25 25
O air in distance 430 430
NetWave 90.x / 108.x recovery
A height (crane support) 1800 (1880) 1800 (1880)
B width 1810 2410
C deep (over all C+G+M) 970 970
F crane support (removable) 80 80
= => not relevant data for the standards can be changed by the manufacturer <= =
