AMETEK CTs NetWave

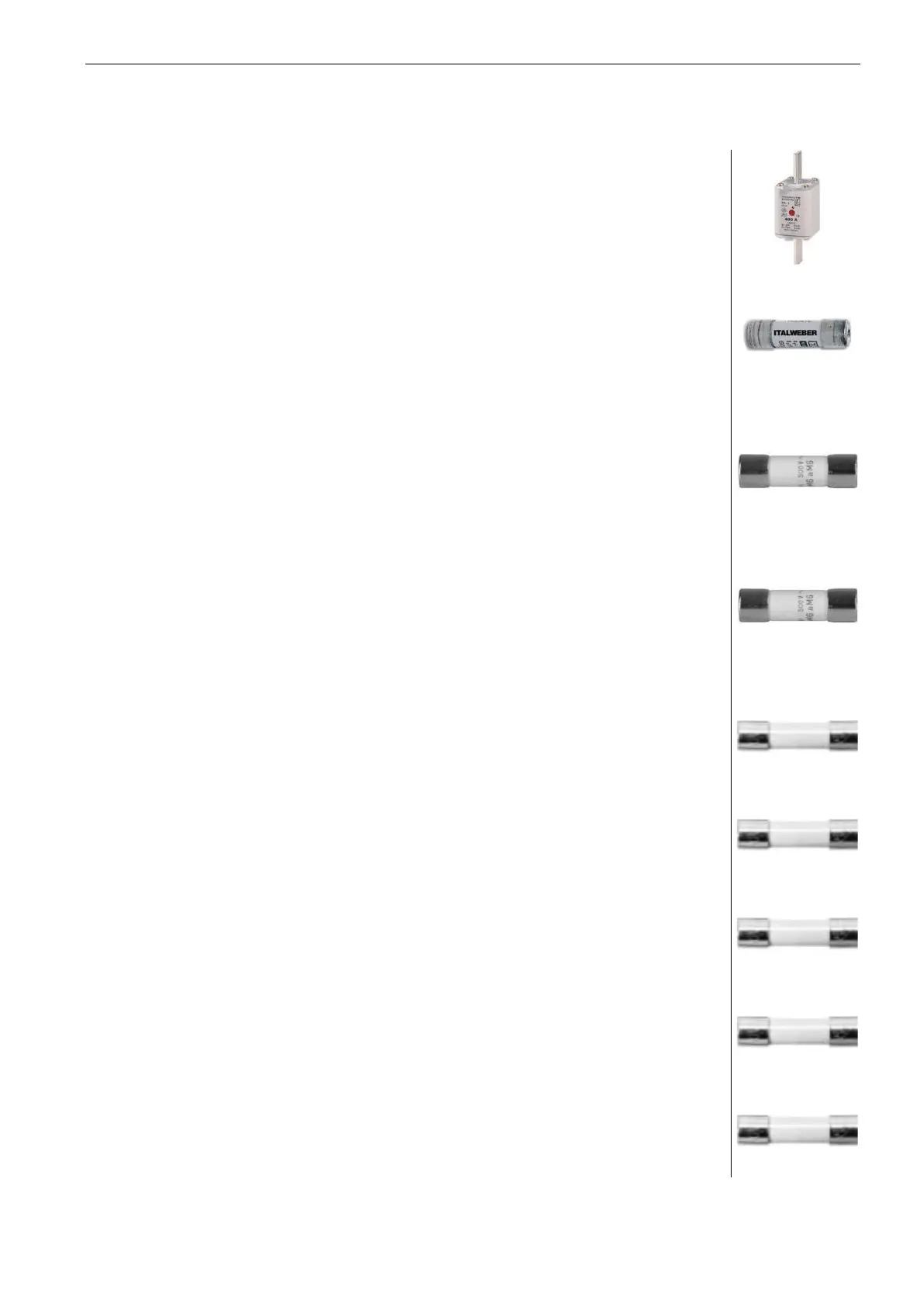

8.5.4. Fuses NetWave 60.x / 67.x
The fuses are located at the rear side of the NetWave behind the cover. For replace the user must open the
screws at the cover.
F1…F3 Fuses for General Input Line R, S, T
Rated voltage: 500 V
Rated current : 160 A
Type : HN00 gL / gG ITALWEBER 0364-160
Breaking capacity: >100 kA
F4 – F 12 Fuses for Line Inverter phase unit R, S, T
Rated voltage: 400 V
Rated current : 50 A slow blow
Dimension : 14 x51mm
Type : SCH14 gG ITALWEBER 1431050
Breaking capacity: >120kA
14x51 mm
F13 – F 21 Fuses for Charge resistor
Rated voltage: 500 V
Rated current : 1 A slow blow
Dimension : 10 x 38 mm
Type : aM Legrand
Breaking capacity: >100 kA
10x38 mm
F22 – F 23 Fuses for Input Auxiliary Transformer
Rated voltage: 500 V
Rated current : 4 A slow blow
Dimension : 10 x 38 mm
Type : aM Wimex
Breaking capacity: >120 kA
10x38 mm
F24 – F 25 Fuses for Output Auxiliary Transformer
Rated voltage: 250 V
Rated current : WGT 5 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F26 – F 27 Fuses for Controller
Rated voltage: 250 V
Rated current : WGT 3.15 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F28 – F 35 Fuses for Auxiliary Supply Inverter Phase R, S, T and Fan
Rated voltage: 250 V
Rated current : WGT 2.5 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F36 – F 37 Fuses for optional Equipment
Rated voltage: 250 V
Rated current : WGT 5 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F38 – F 39 Fuses for Safety Circuit
Rated voltage: 250 V
Rated current : WGT 1 A slow blow
Dimension : 5 x 20 mm
5x20 mm
