AMETEK CTs NetWave
9. Accessories and options
9.1. Opt-1 NWB / Opt-3 NWB (NetWave Measure Board)
1 Phase Systems
- Built-in 2 channels measuring board 16 Bit resolution 100 kS/s
Input voltage 500 V unipolar or bipolar
Input current 150 A unipolar or bipolar
3 Phase Systems
- Built-in 6channels measuring board 16 Bit resolution 200 kS/s
Input voltage 500 V unipolar or bipolar
Input current 220 A unipolar or bipolar
Part-NO.
Name
Description
NetWaves
105352
Opt-1 NWB
(1 Phase)
Built-in 2 channel measurement board for voltage
and current (internal measurements)
NetWave 3,
NetWave 5
NetWave 7, 7.2, 7.3
106268
Opt-3 NWB
(3 Phase)
Built-in 6 channel (3-phase) measurement board
for voltage and current, remote controlled per
USB interface
NetWave 20.x
NetWave 30.x
NetWave 60.x
NetWave 67.x
NetWave 90.x
NetWave 108.x

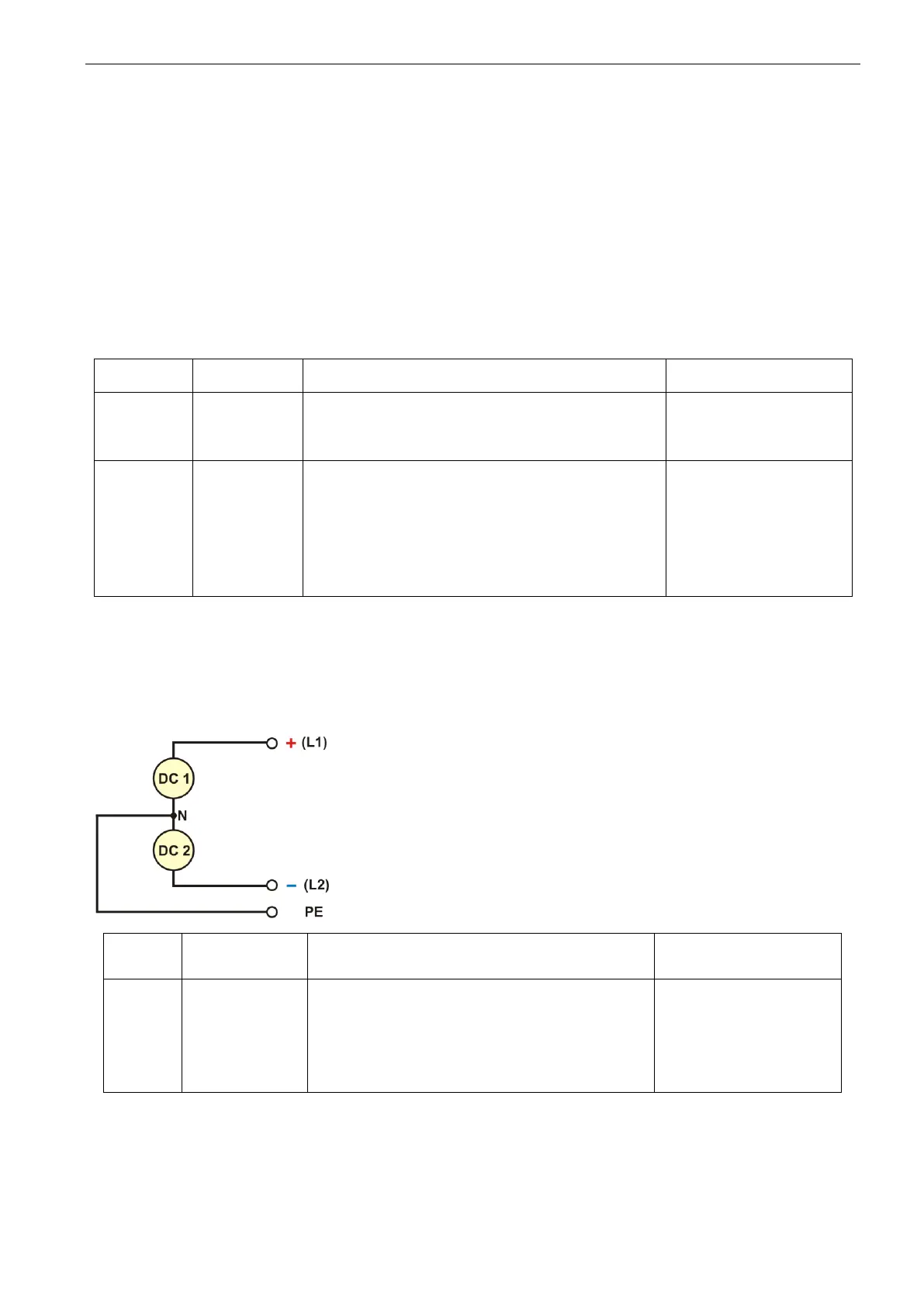

9.2. Opt-3 DC-EVR (3 phase systems)
With this option it is possible to double the DC voltage range by using two phases simultaneously. The phase
1 is used for +DC and the phase 2 is used for –DC pole. The using of this function is only supported by
net.control software.
The following extended voltages can be reached :
NetWave 20, 30, 60, 67 :
425 VDC → 850 VDC
NetWave 20.2, 30.2, 60.2, 67.2, 90.2 :
500 VDC → 1’000 VDC
NetWave 20.3, 30.3, 60.3, 67.3, 90.3, 108.3 :
560 VDC → 1’120 VDC
Part-
NO.
Name
Description
NetWaves
112732
Opt-3 DC-EVR
Double DC voltage range, using two phases
simultaneously, available only for 3-phase
NetWaves
NetWave 20.x
NetWave 30.x
NetWave 60.x
NetWave 90.x
NetWave 108.x
9.3. Opt-3 MultiSource (3 phase systems)
With this option it is possible to put 3 single NetWave in multi-source configuration to get one NetWave with
enhanced combined AC power. See more information on chapter 8.4.
