AMETEK CTs NetWave
3.6.13. NetWave 7.x with DPA and AT1-NetWaveStep-Up transformer
The AT1- NetWave Step-Up transformer will expand the voltage from 300 V to 400.
Therefore, it is necessary to enter the transformer ratio 1.333 in the device setup of the NetWave

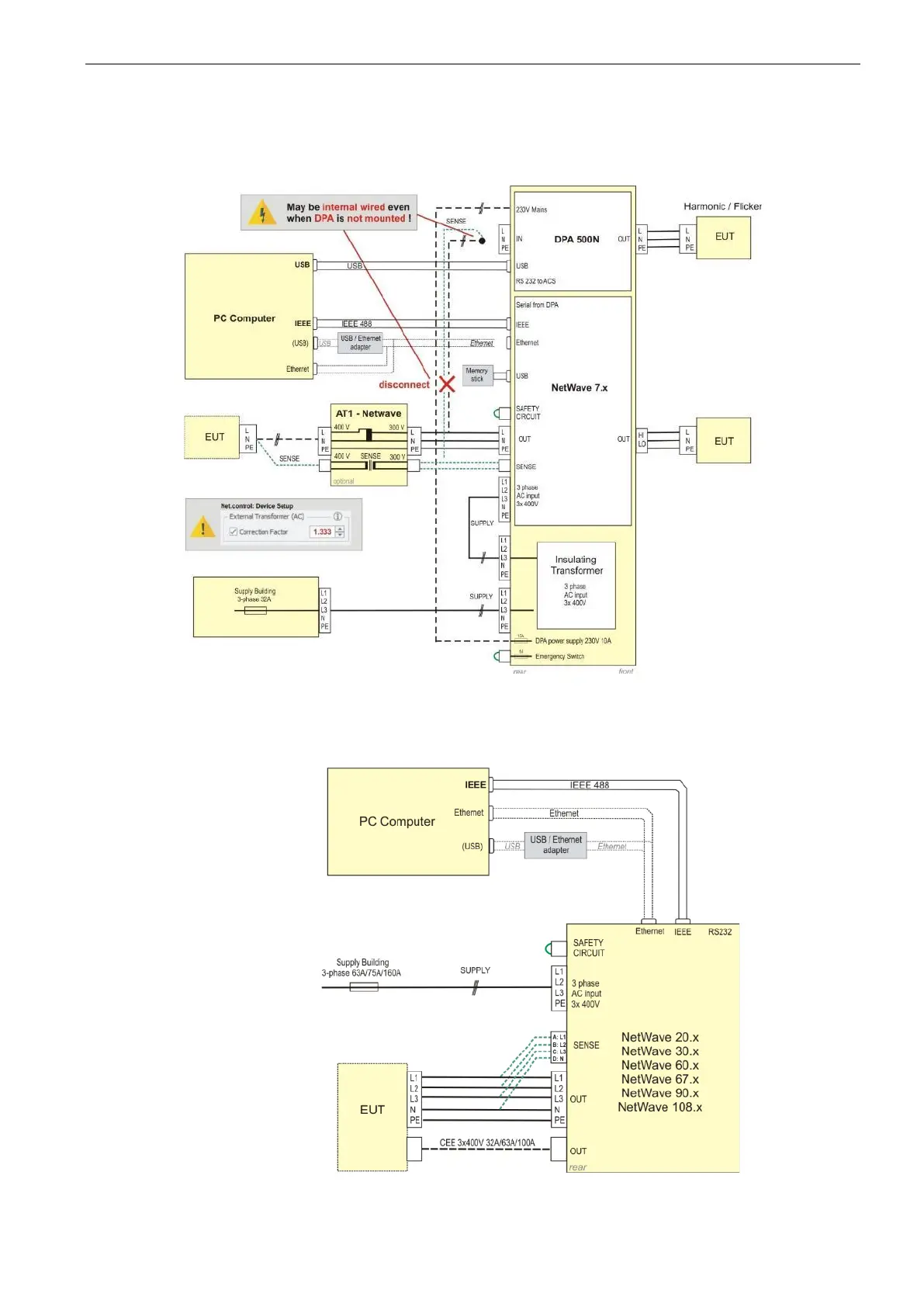

Cabling NetWave 7.x with AT1- NetWave Step-Up transformer and optional DPA 500N
3.6.14. NetWave 3-phase 20.x / 30.x / 60.x / 67.x / 90.x / 108.x system cabling
Cabling NetWave 20.x / 30.x / 60.x / 67.x / 90.x / 108.x
