AMETEK CTs NetWave

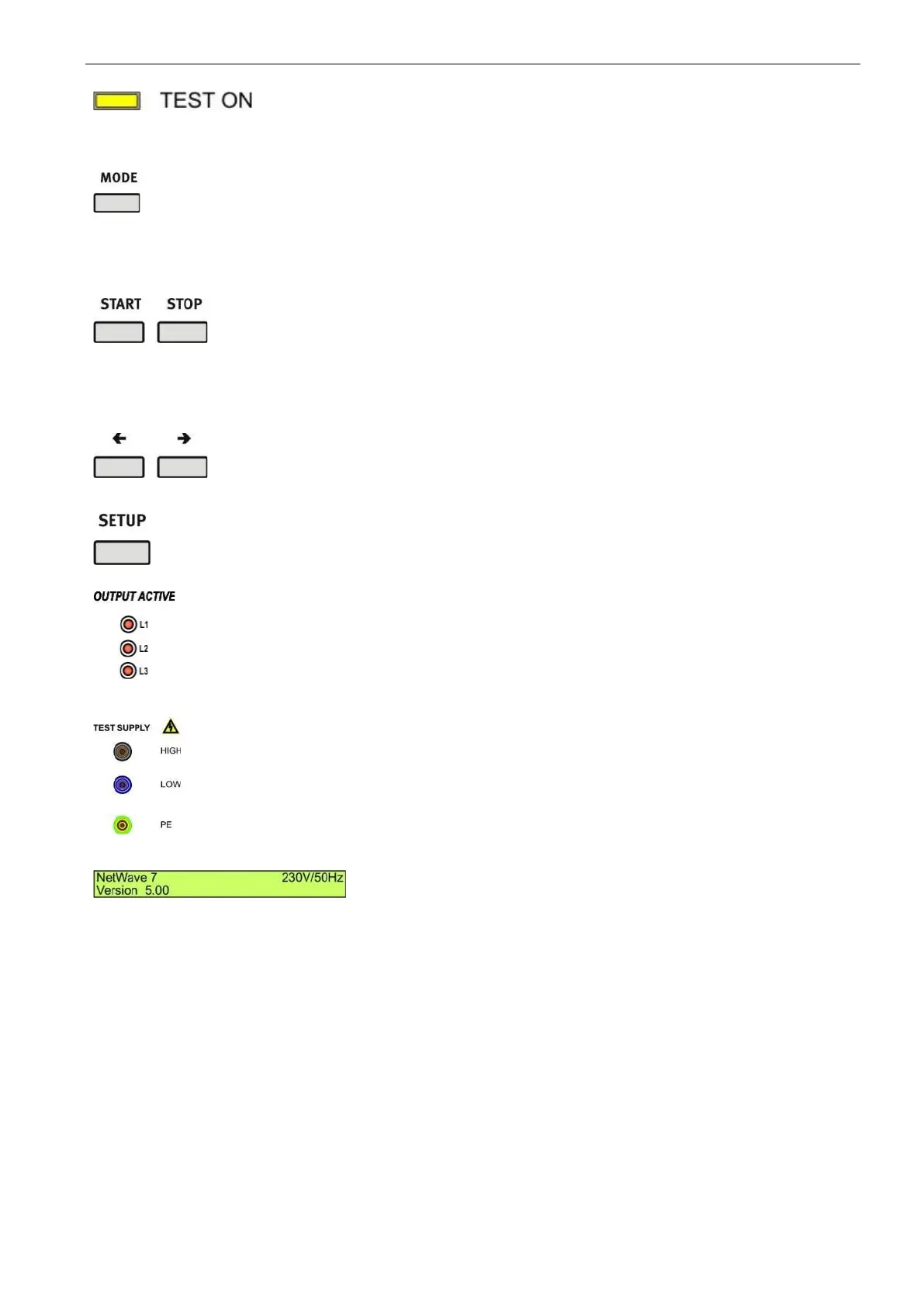

4. Test ON
Pressing this button will enable the output voltage
- TEST ON => LED is on
- TEST OFF => LED is off
5. Mode
Pressing this button will cyclic rotate the main menus.
- Wave Generator
- Measurement U / I
- Wave Manager
6. Start
7. Stop
Start and Stop button for measuring and running
arbitrary waves.
START: Starts or continue.
STOP : Stops a measuring or a running arbitrary
waves.
2
nd
STOP : Exit of the play or setup change function
8. Cursor key "

" "
→
"
Cursor Key with the following function
- Scrolling in the menus
- Setting the values up / down
9. Setup
Menu button for the device configuration menu.
See Chapter
Setup Menu
10. LED output active channel L1 to L3
LED display for indicate the active output channels.
Depends of extension 1 or 3 phase’s model.
L1: Single phase model.
L1, L2, L3: 3-phase model. Any other combinations are
possible with the 3-phase model
11. Test supply output
The test supply output to the EUT is located at the front
side and in parallel at the rear side.
Output Voltage:
AC up to 300 Vrms
DC up to  425 V
12. Display
LCD display 2 x 40 characters
