4.2 COPYING WELD SCHEDULES FROM THE MODEL 217
WDR LIBRARY TO AN EXTERNAL MEMORY DEVICE

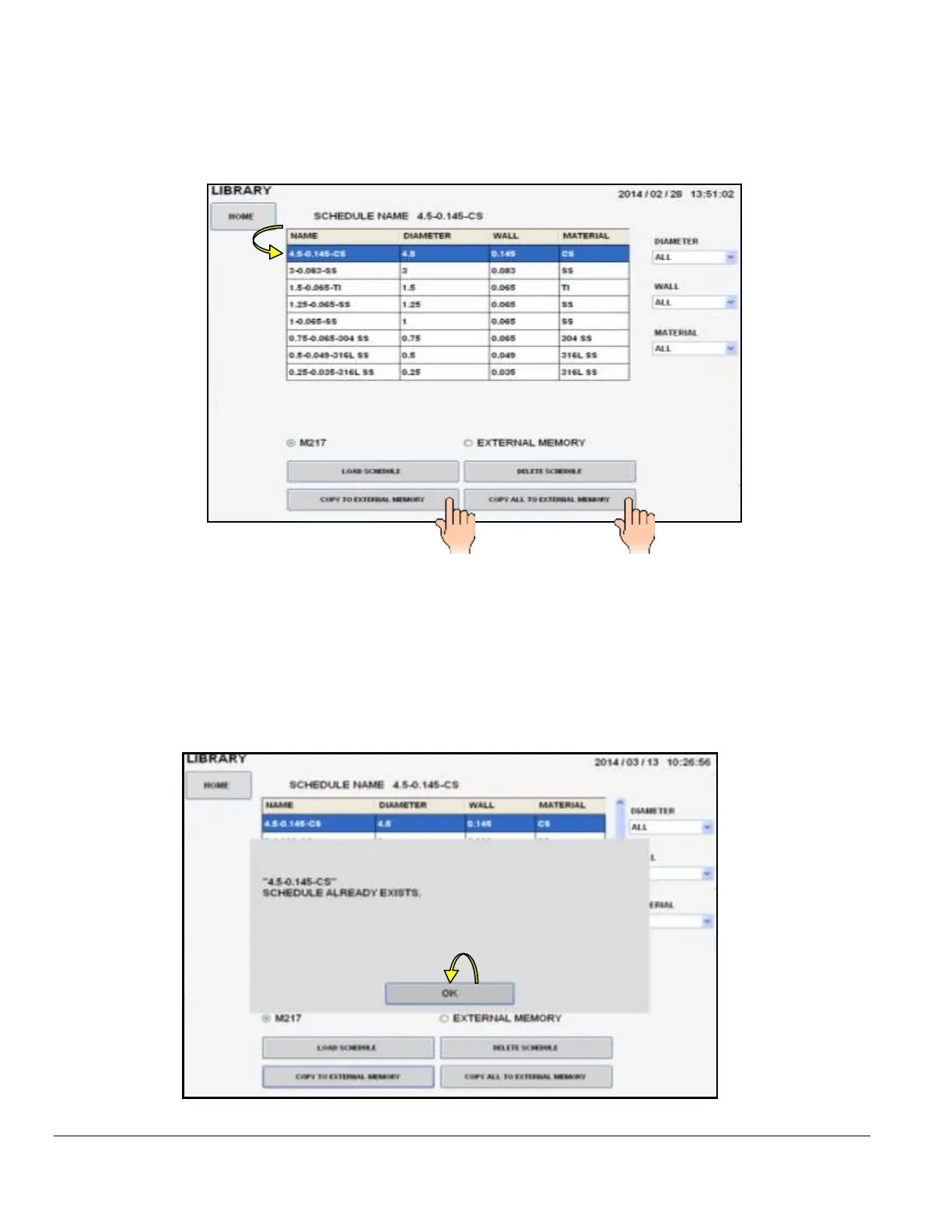

1. Open LIBRARY. Insert the external memory device into the Model 217 WDR USB port.
2. Select (highlight) one weld schedule to be copied to the external memory device.
3.Touch COPY TO EXTERNAL MEMORY to copy that one weld schedule, or touch
COPY ALL TO EXTERNAL MEMORY if you want the entire Model 217 WDR
library copied to the external memory device.
Note: Should the weld schedule(s) you are trying to copy from the Model 217 WDR library
already exist in the external memory device the following screen be displayed:
