M O D E L 2 1 7 W D R
O P E R A T O R ’ S M A N U A L
35

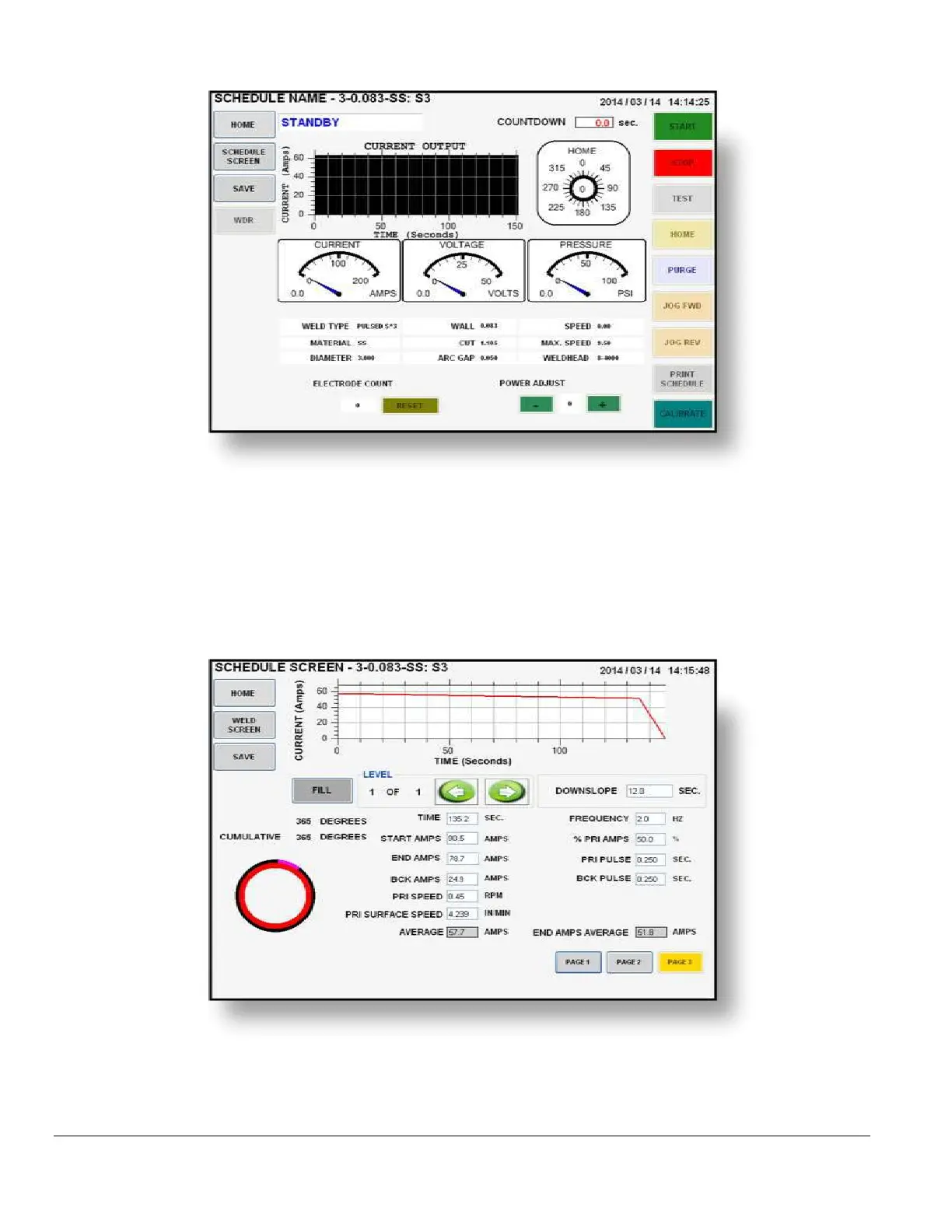

6. The Model 217 WDR is now loaded with the weld schedule and is in
STANDBY mode,
ready to weld.
7. Below is an example of an S^3 (pronounced S cubed) weld, it is named for the three S’s
defining the weld (Single Slope, Single pass). It is a linear reduction of current from a
START AMPS to an END AMPS with a LOW AMP PULSATION for an AVERAGE AMP
OUTPUT.
