10
USER’S MANUAL
AMIKO MINI COMBO EXTRA
AMIKO IMPULSE T2C
AMIKO MINI HD265
AMIKO MIRA WIFI

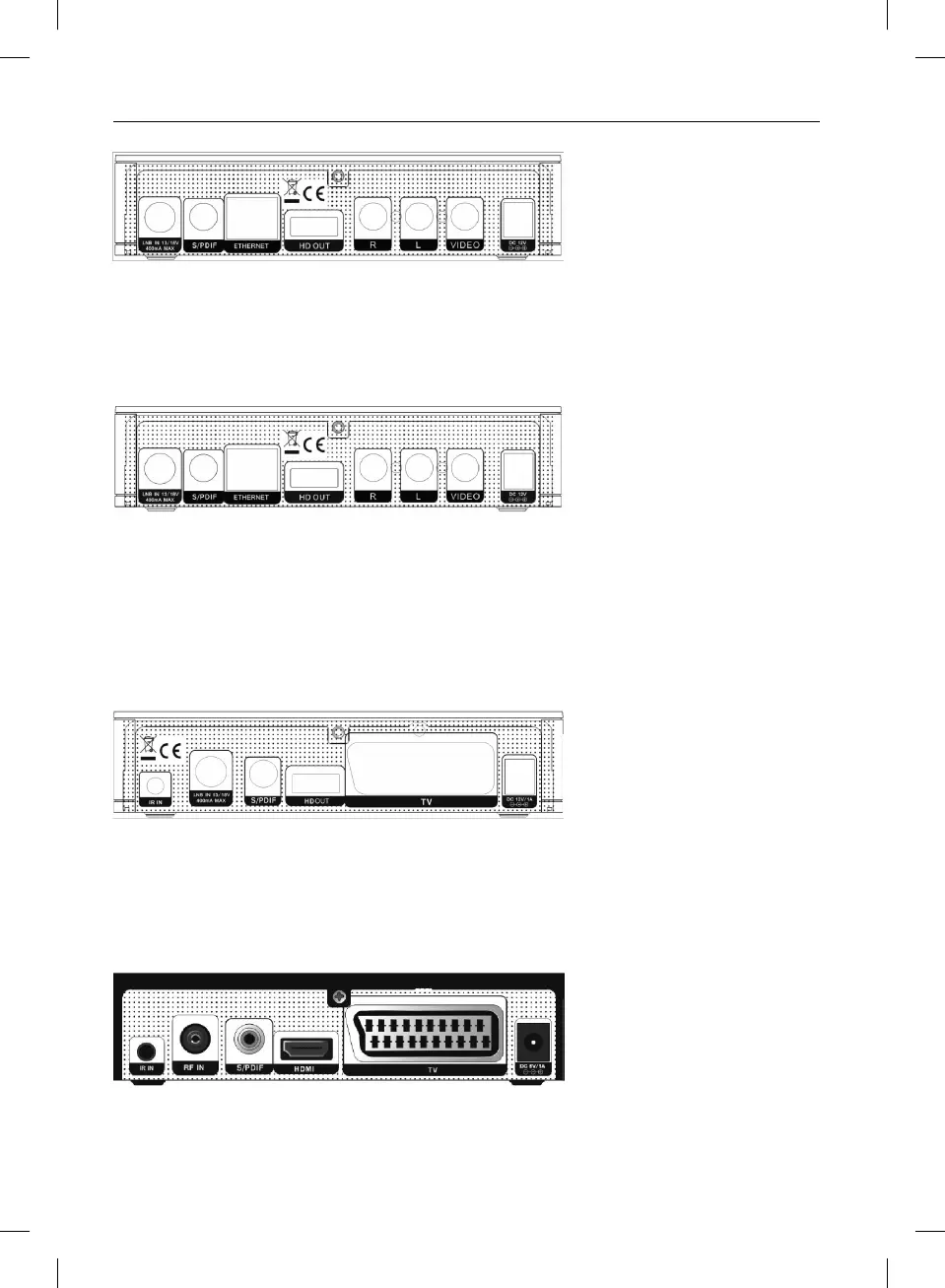

Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
HD OUT: Audio and Video output socket for TV set with HDMI Input Jack only.
Ethernet: Network port, you can get a new software updates from this port.
RCA: This RCA connector is used to connect TV using AV cable.
DC 12V: This is used to connect an external 12V adapter.
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
RF IN: This port is to connect the coaxial cable from Terrestrial/Cable Antenna.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
HD OUT: Audio and Video output socket for TV set with HDMI Input Jack only.
RS 232: This is used to connect your receiver to a computer through a serial cable.
Ethernet: Network port, you can get a new software updates from this port.
AV OUT: This RCA connector is used to connect TV using RCA cable.
IR IN: Connect an External IR-Sensor (Infrared).
DC 12V: This is used to connect an external 12V adapter.
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
HD OUT: Audio and Video output socket for TV set with HDMI Input Jack only.
TV: This SCART connector is used to connect TV using SCART cable.
IR IN: Connect an External IR-Sensor (Infrared).
DC 12V: This is used to connect an external 12V adapter.
DC 5V:This is used to connect an external 5V adapter.
TV: This is used to connect your TV through SCART cable.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
RF IN: This port is to connect the coaxial cable from Terrestrial/Cable Antenna.
AV OUT: This RCA connector is used to connect TV using RCA cable.
