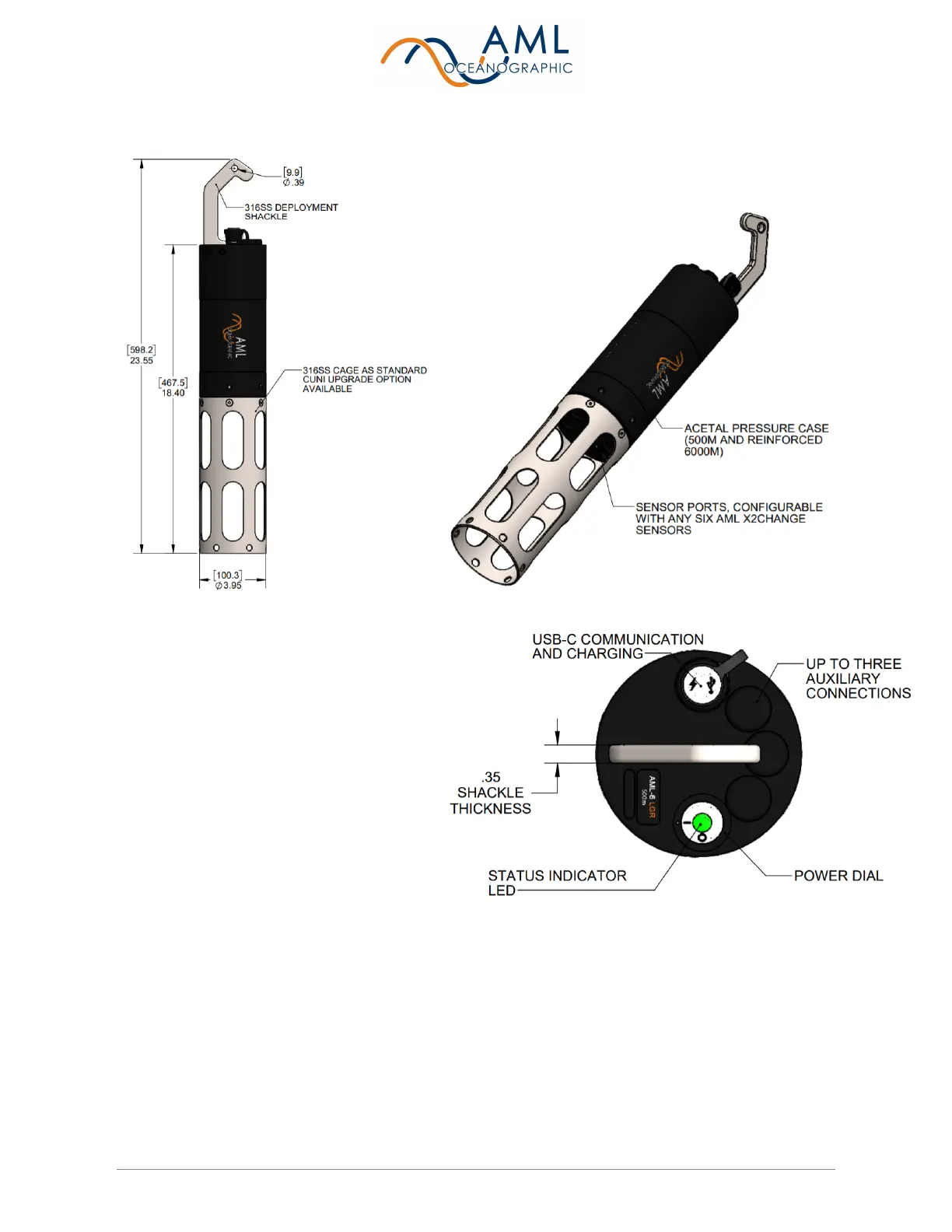

Figure 2 depicts a typical AML-6 LGR.
Figure 2: A typical AML-6 LGR. The
instrument shown here is representative only
and may differ from the Reader’s instrument.
By default, both the AML-3 and AML-6
LGR instruments come equipped with a shackle, a USB-C connector, a power switch, and a
status indicator LED. The shackle has a hole coincident with the axis of the instrument to
facilitate suspension during deployment. It is recommended the instruments be deployed
vertically with the shackle end up. The AML-6 LGR shackle is also hook shaped to provide
secure handling by a user.
