M7225 User’s Guide
36
Chapter 6 – Communications Cradles

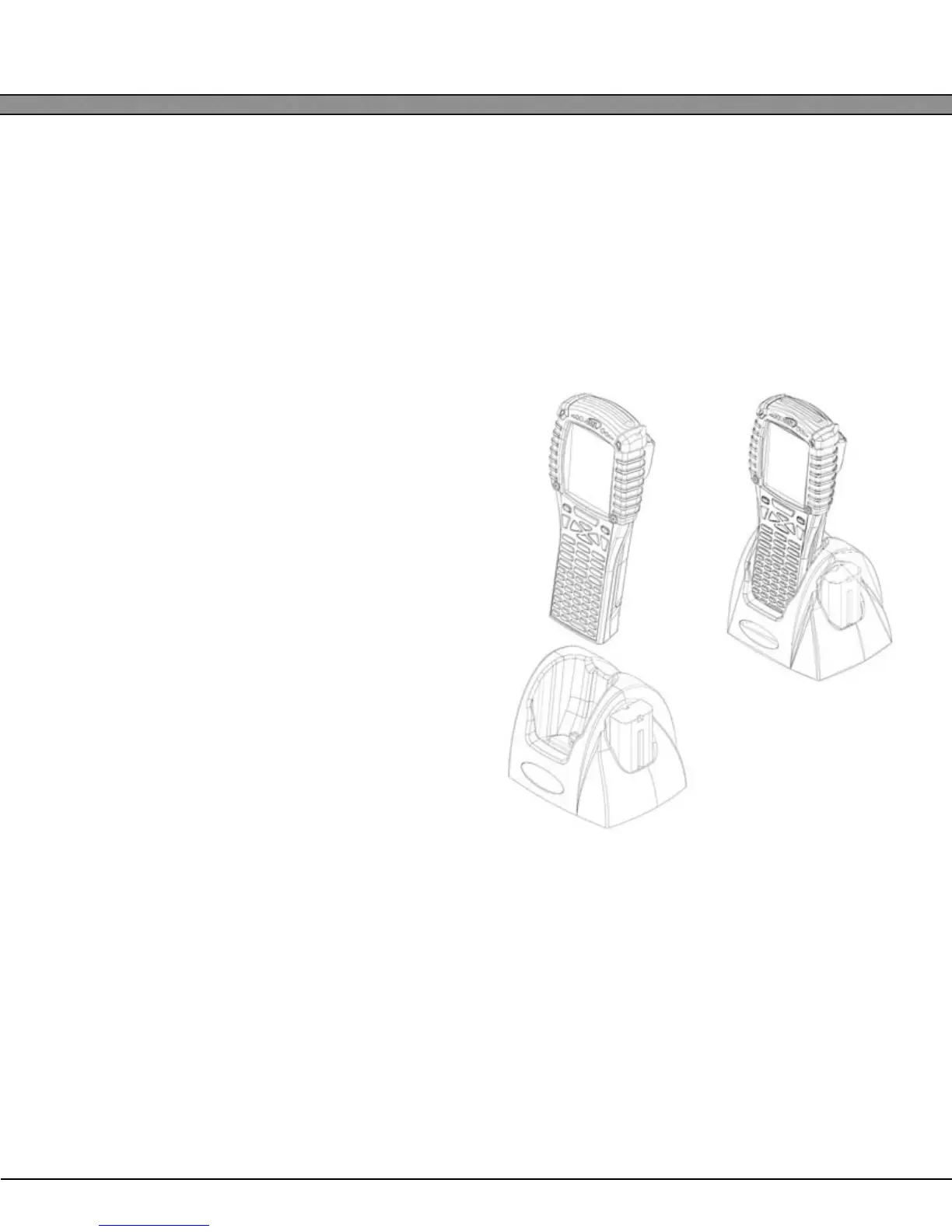

The M7225 Hand-held Computer has an optional charging and communications cradle, ACC-7225. The cradle
automatically charges the M7225 batteries while it is resting in the cradle. The cradle also includes an extra slot
to charge a spare main battery pack. The M7225 cradle can accommodate the M7225 with or without the
optional trigger handle. Furthermore, the M7225 is backwards compatible with the ACC-5925 charging cra-
dle for situations where the additional communication ports of the ACC-7225 are not needed.
ACC-7225 Features
Automatic battery charging
10/100 Ethernet
2 x USB Host
1 x USB Slave (Device)
3 Indicator LEDs
Spare battery charging slot
ACC-5925 Features*
Automatic battery charging
1 x USB Slave (Device)
3 Indicator LEDs
Spare battery charging slot
*WARNING: THE M7225 DOES NOT BRING OUT RS-232
TO THE CRADLE. DO NOT CONNECT THE ACC-5925’S
RS-232 PORT WHEN USING THE ACC-5925 FOR CHARG-
ING THE M7225. DAMAGE TO THE M7225 CAN RESULT.
