12
side (with tryke upside down) of the red bracket must rest between
tryke frame and black basket plate.
g.) Install two (2) of the 15mm hex head screws but do not tighten yet.
h.) Flip tryke over so it is now right side up.

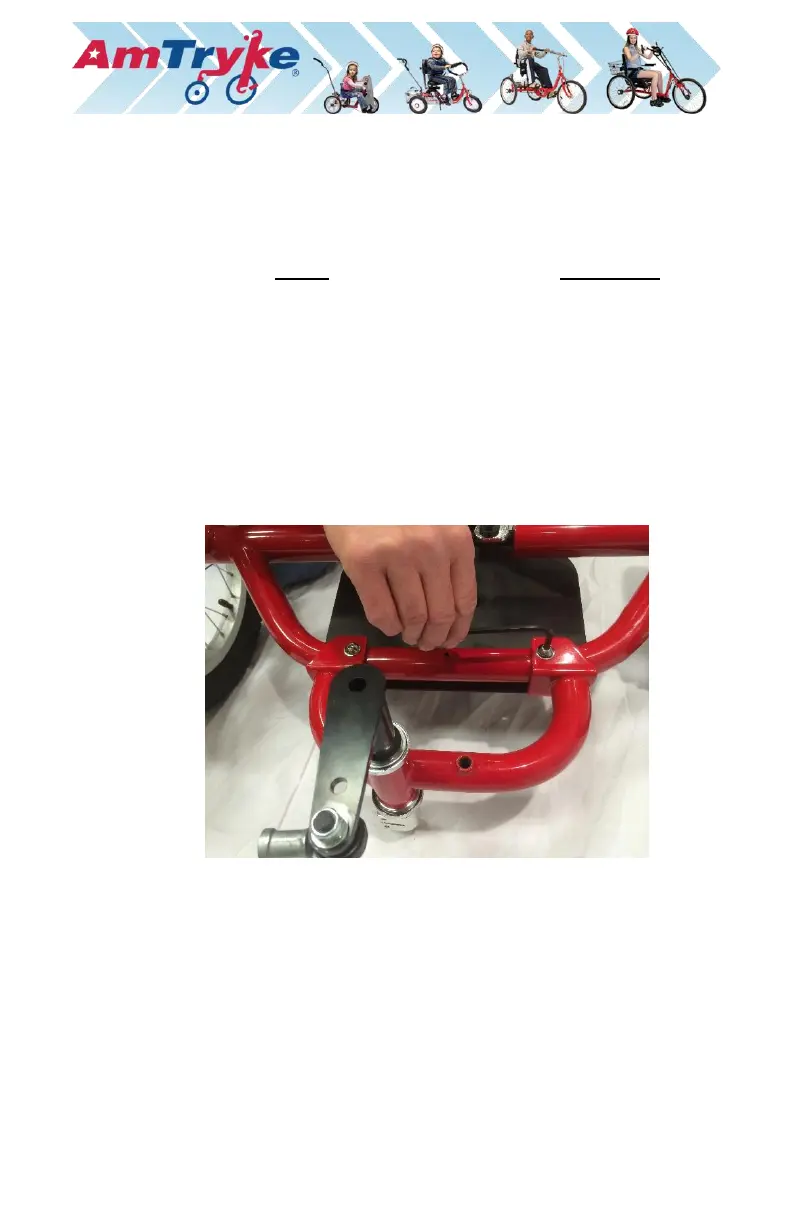

i.) Now you can install the basket and the red rear steering assembly. The
red bracket goes on top of the rear frame holes and underneath the
black basket plate.
j.) Position the basket and loosely install the Phillips head screw in the
rear center hole. Do not tighten yet.
k.) Place two (2) washers over the bracket holes.
l.) Lay the silver basket bracket over the basket and center over the two
sets of washers. Re-install the 25mm hex head screws and one washer
through the silver bars. Get all bolts and screws started by hand first.
Once all are correctly installed; and started, you can tighten the whole
assembly.
8. Install Steering Control Arm
a.) If your control arm is two-pieced, connect the two red steering control
arm sections by using the two small Allen bolts followed by locknuts as
seen in picture below.
