Select a location for the faucet or dispensing device. There may already be an extra, capped hole
in your sink’s ledge for a sprayer, soap dispenser or extra faucet that can be used for mounting
the faucet. If you are removing the connected sprayer, it will need to be sealed properly. (See
local plumbing store for assistance.) For eSpring™ Faucet, if a new hole is needed, it must be
between 1¼” (32mm) and 1½” (38mm) in diameter, less than 3 15/16” (100mm) the sink basin and
at least 1¼” (32mm) from the wall. Before drilling, make sure there is sucient clearance below
the sink or countertop to accommodate the faucet and allow connections to be made to the
eSpring™ Pro Water Purier.
Note: For solid countertops, it is recommended to use a very sharp bi-blade hole saw and
start by making a pilot hole. If you have a porcelain/ceramic sink or a tile countertop,
it is recommended to seek professional assistance for proper drilling.
WARNING : Due to the possibility of shock or electrocution, use extreme care when
operating an electric power drill or other power tools around the sink. Avoid contact
with water or moisture at all times.
Installation of the eSpring™ Auxiliary Faucet

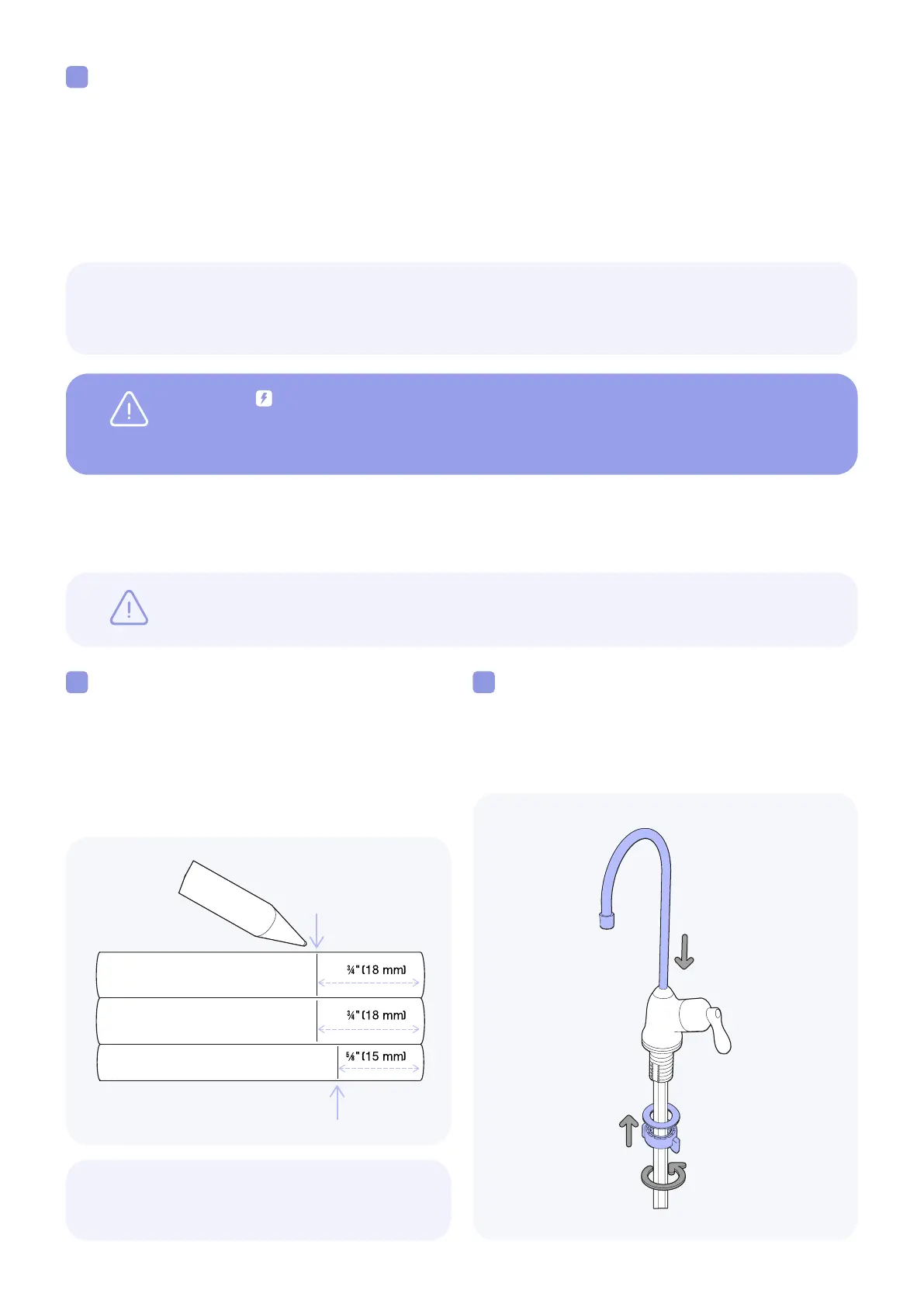

Mark the Faucet Tubing
a. Lay the RED, GREEN and BLUE tubes.
Use a pen to mark them at the arrows.
b. Use a ruler to measure and mark one-
by-one a line at ¾” (18mm) and ⅝” (15mm)
or at the arrow.
Press Faucet spout into the main body and
screw spout cap onto the faucet body top.
Unscrew to remove the wing nut and metal
washer while keeping the rubber washer
against the faucet body.
1 2
IMPORTANT: REVIEW ALL INSTRUCTIONS TO MAKE YOU HAVE ALL PARTS AND
TOOLS PRIOR TO INSTALLATION.
17
4
Note: These marks will show you when
the tubes are fullyinserted in
following steps to avoid leaks.
RED
GREEN
BLUE
