Enova DGX DXLink™ Twisted Pair 4K Boards
102
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Example of Typical Setup with DXLink Twisted Pair 4K Transmitter and Receiver
A typical system setup for a source and a destination is illustrated below and shows an Enova DGX 1600 with DXLink Twisted Pair
4K Input and Output Boards used in conjunction with compatible Transmitters and Receivers for transport of HDMI signals.
This type of setup also supports DVI-D signals with the use of a cable adapter.
The Transmitter receives an HDMI signal and an embedded digital audio signal from a source device. Both the video and embedded
audio are transmitted over twisted pair cable to the RJ-45 connector on the DXLink Twisted Pair 4K Input Board. The signal is
routed through the desired DXLink Twisted Pair 4K Output connector to the Receiver, which in turn sends the HDMI signal with
embedded audio on to a destination device. Audio received on the Transmitter can be output on the Receiver’s stereo audio port.
TIP: For systems with special requirements – Before installing in the final location, place the equipment close together, so a PC for
control and the destination monitor can be seen simultaneously if adjustments are necessary. Adjustments can be made using the
System Configuration interface (see page 163).
Functions of DXLink Transmitters and Receivers
The diagram in FIG. 53 shows the functions of DXLink Transmitters and Receivers and the example descriptions contain the device
HDCP key count when used in conjunction with DXLink Boards in an Enova DGX Digital Media Switcher.

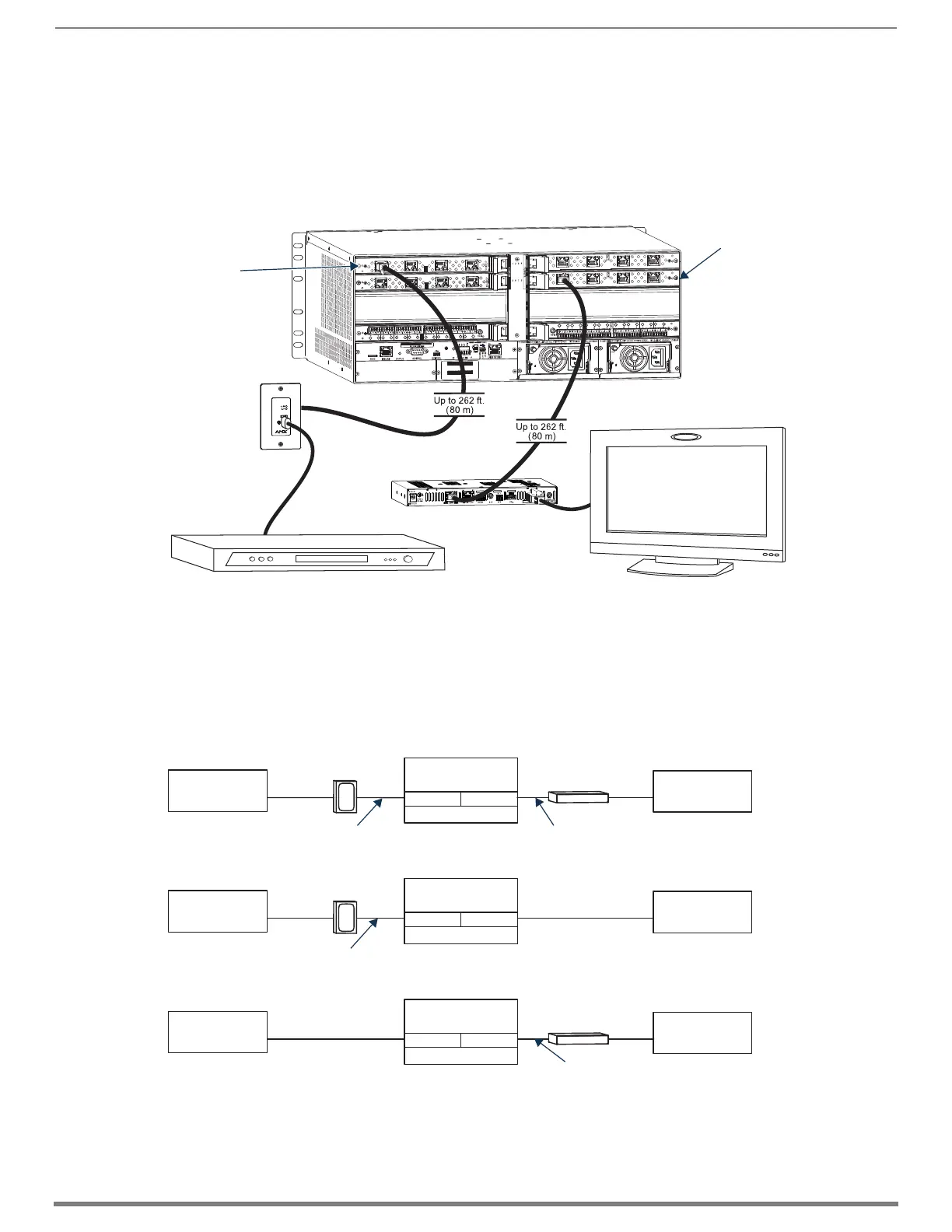

FIG. 52
DXLink Twisted Pair 4K Boards used in conjunction with Transmitter and Receiver
FIG. 53 Repeater and source functions of Enova DGX with Transmitters and Receivers
AC
DC
FLT
AC
DC
FLT
DXLink Twisted Pair
Input Board
4K HDMI Decor
Wallplate Transmitter
Source Device
4K HDMI Receiver Module
DXLink Twisted Pair
Output Board
Destination Device
Acts like sink
Destination
Destination
Destination
Source
Source
Source
Example C
Example B
Example A
HDMI cable
HDMI
cable
HDMI
cable
HDMI
cable
HDMI
cable
HDMI cable
RX acts like a sink
TX acts like a sink
TX acts like a sink
RX acts like a sink
Enova DGX
Enova DGX
Enova DGX
HDMI In
DXLink Out
DXLink In
DXLink In
DXLink Out
HDMI Out
Twisted Pair cable
Twisted Pair cable
Twisted Pair cable
Twisted Pair cable
Example A: When a Receiver acts like a source, its key does not count. Source device sees 1 key (Transmitter).
Example B: When a Transmitter acts like a sink, the source device sees 1 key (Transmitter).
Example C: When a source device is connected directly to a switcher, the source sees 1 key (switcher input).
