AMX DGX800-ENC User Manual

Switching, Configuration, and Status
175
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers

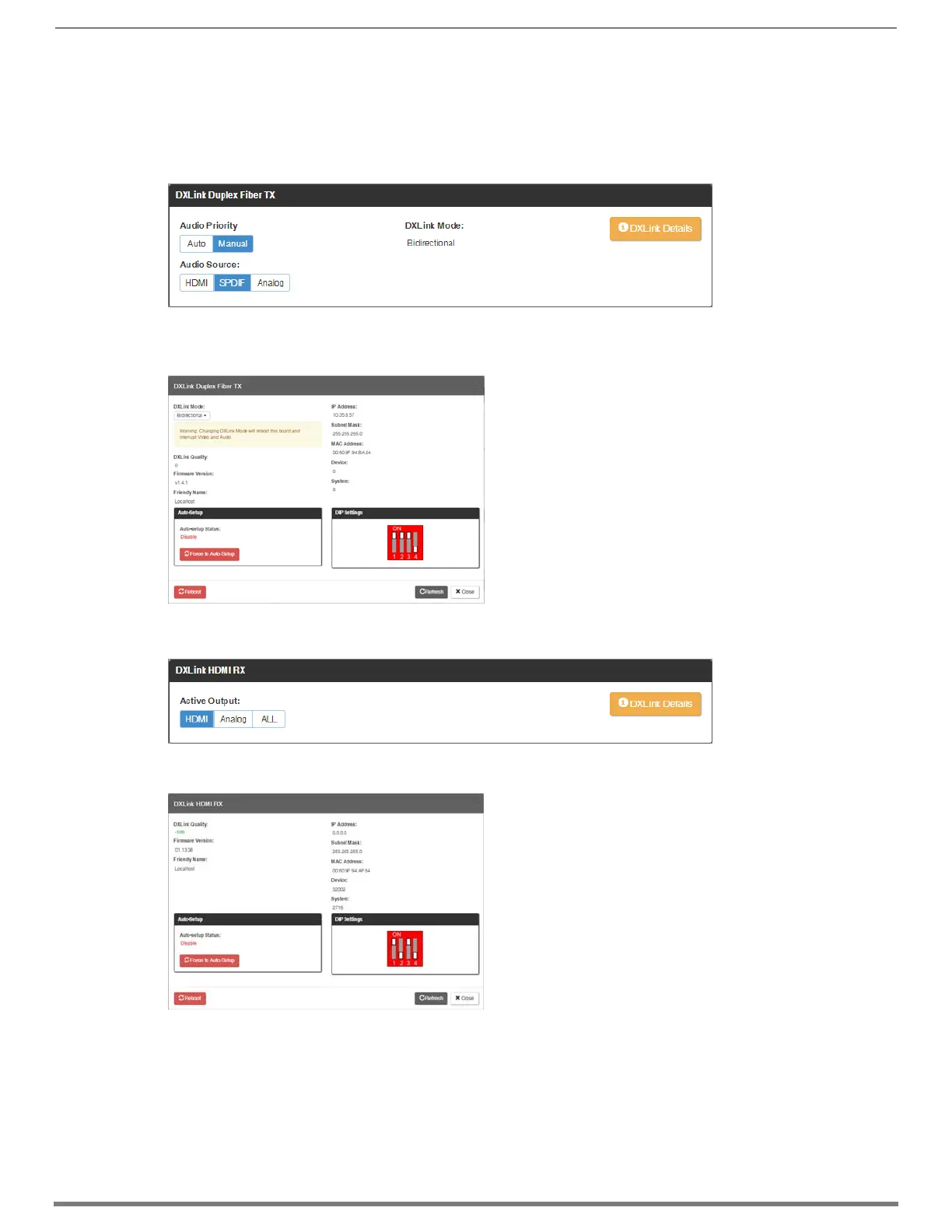

DXLink Audio Settings
DXLink specific audio settings display when a DXLink Twisted Pair or DXLink Fiber Transmitter or Receiver (or other DXLink
equipment) is connected to the selected input or output. These settings display in addition to the normal audio settings for the
input or output described in the previous section. The Audio tabbed view must be selected.
DXLink (Twisted Pair or Fiber) Transmitter (for selected audio input)
Audio Priority – click either the Auto or Manual button.
Audio Source – click either the HDMI, SPDIF, or Analog button
DXLink Details button – click to display additional settings for the DXLink Transmitter.
DXLink (Twisted Pair or Fiber) Receivers (for selected audio output)
Active Output – click either the HDMI, Analog, or All button.
DXLink Details button – click to display additional settings for the DXLink Receiver.
EDID Configuration
NOTE: Because signals routed through HDMI, DVI, DXLink Twisted Pair, and DXLink Fiber Boards in an Enova DGX 100 Series Switcher
normally produce a quality image, you will not need the information in this section unless the installation has special EDID
requirements.
A default EDID (Extended Display Identification Data) is stored on the input boards and/or Transmitters. This EDID, which gets
presented to the source, includes all necessary timings, audio and video format support, and preferred resolutions for best
performance.
TX Settings:
DXLink Quality – green = good; red = poor; number
indicates degree or lack of quality
Firmware Version – current version
Friendly Name – current name
IP Address – for auto-setup, displays integrated
Master’s IP address
Subnet Mask – current setting
D. P. S. – current setting
MAC Address – current setting
Auto-Setup – Status (Enable/Disable) and Force
to Auto-setup button
DIP Settings – indicates settings on DIP switch
Reboot button – reboots TX
Refresh button – updates status of TX settings
RX Settings:
DXLink Quality – green = good; red = poor; number
indicates degree or lack of quality
Firmware Version – current version
Friendly Name – current name
IP Address – for auto-setup, displays integrated
Master’s IP address
Subnet Mask – current setting
D. P. S. – current setting
MAC Address – current setting
Auto-Setup – Status (Enable/Disable) and Force to
Auto-Setup button
DIP Settings – indicates settings on DIP switch
Reboot button – reboots RX
Refresh button – updates status of RX settings
