Control Panel Operation
226
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
3. Locate Adjust Audio by scrolling with the Control Dial.
4. Press the Select Key.
The Adjust Audio submenu appears.
5. Press the Select Key again to choose Output Volume.
The panel is in Output Volume Mode (all Input Keys are turned off, and the available Output Keys turn blue).
6. Press the Output Key that corresponds to the output to be adjusted.

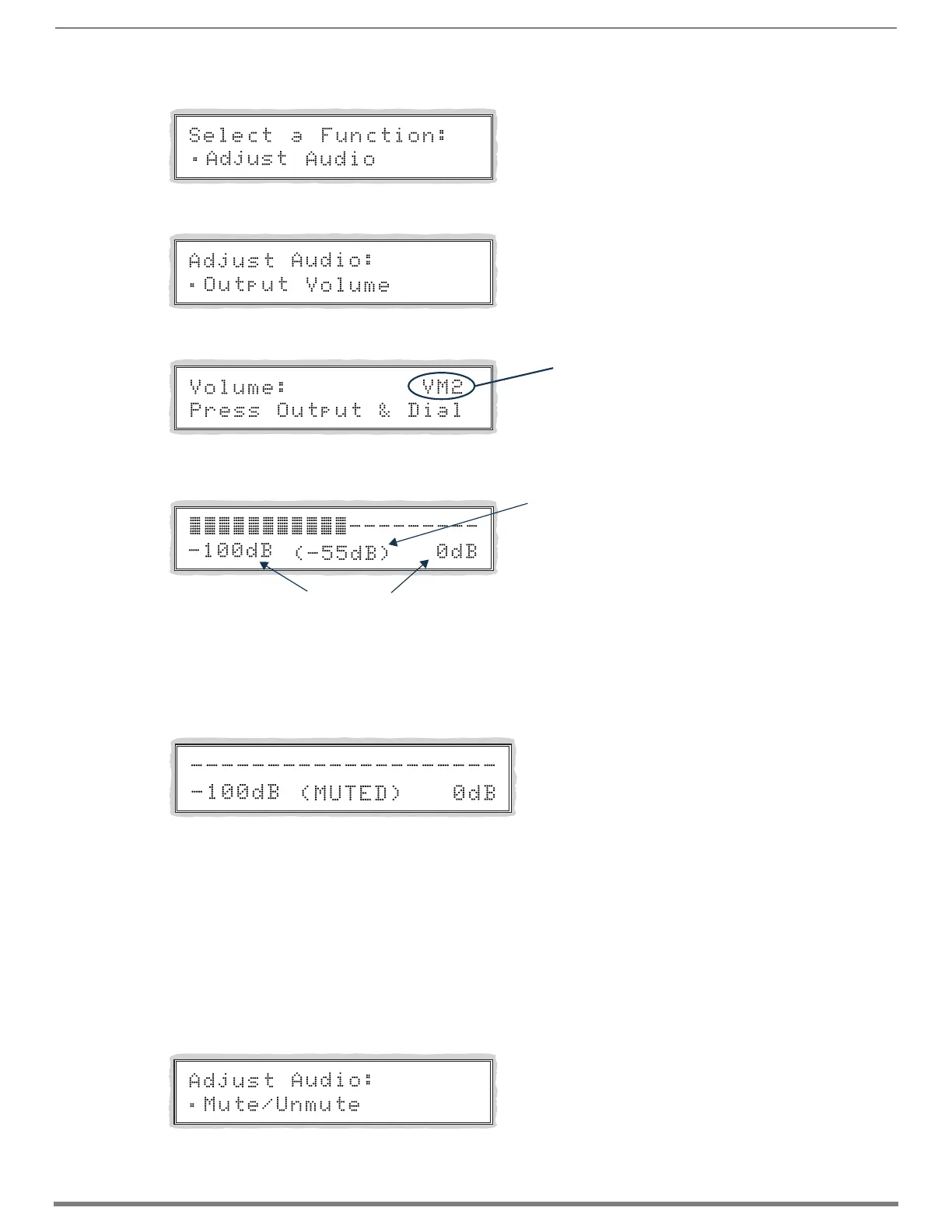

The Adjust Volume Screen appears, displaying the volume range of the audio signal and the current volume setting for the
selected output.
7. Adjust the volume by scrolling with the Control Dial.
The volume audibly adjusts as you scroll the Control Dial.
8. Select another output to adjust.
Or press the Cancel Key to return to the Adjust Audio submenu. (The Cancel Key does not undo the audio adjustments.)
Or press the Function Key to return to the Function menu.
NOTE: If the selected output is muted, “Muted” displays as the current setting (FIG. 116). Turning the Control Dial will unmute a
muted output and adjust the Volume.
To reapply mute, see the following.
Muting and Unmuting Outputs
NOTE: The mute/unmute option applies to output volume only and is not available for input gain.
To mute an output:
1. Press the Function Key. The Function menu appears.
2. Locate Adjust Audio by scrolling with the Control Dial.
3. Press the Select Key to enter the selection.The Adjust Audio submenu appears.
4. Scroll the Control Dial to Mute/Unmute.
FIG. 116
Example of muted output in Output Volume Mode
Routing level
Current volume setting
Volume range
