Switching, Configuration, and Status
170
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers

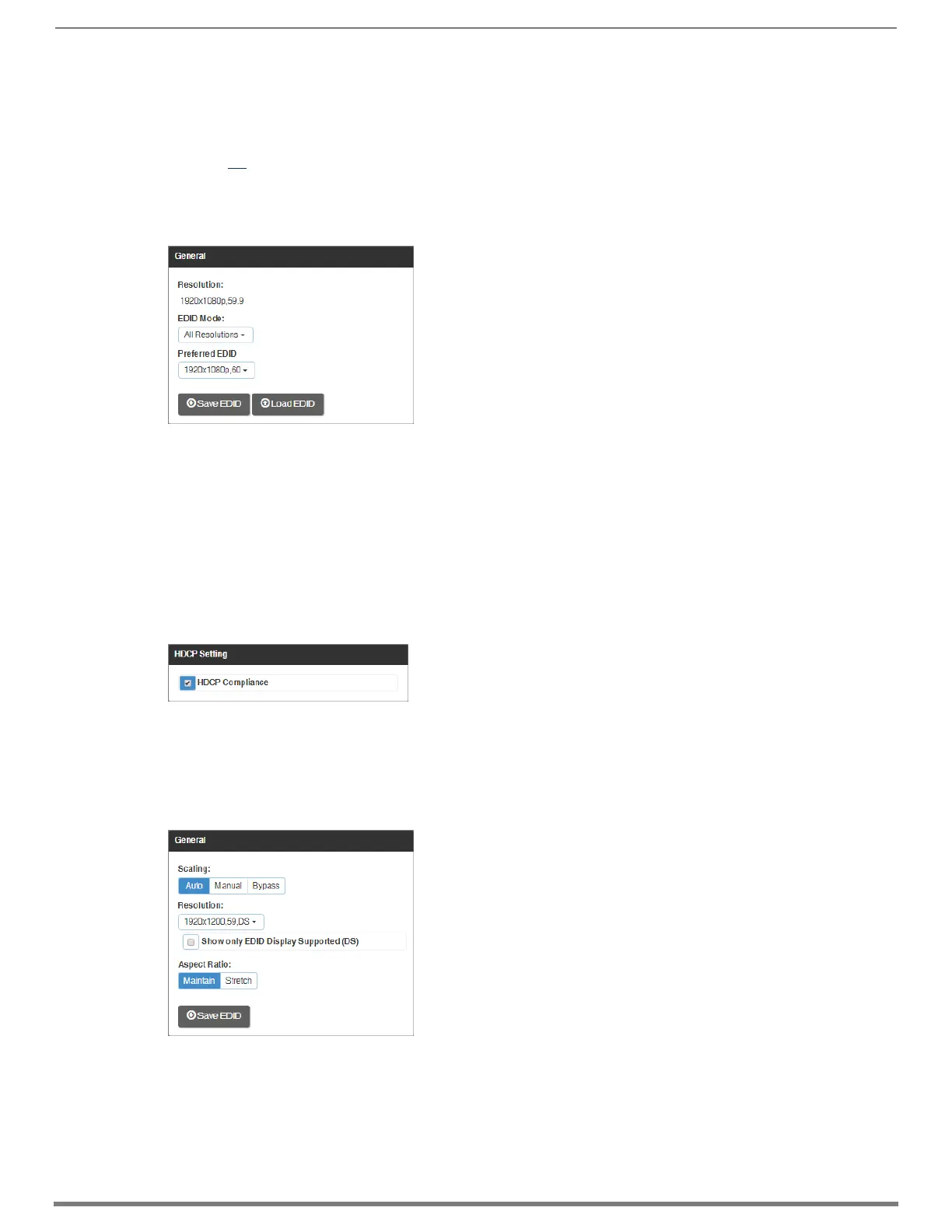

Video Settings
Video settings display when the Switch Mode is A/V or Video, the Video tabbed view is selected, and a specific input or output is
selected.
NOTE: The Output Video Details provided by the System Configuration interface correspond to information at the output board prior
to scaling, not what is sent to the destination display.
Inputs Only
General:
Resolution – displays the detected input Resolution (read-only)
EDID Mode – in the drop-down list, select the EDID (All Resolutions, Wide-Screen, Full-Screen, or Custom) to be
presented to the source
Preferred EDID – in the drop-down list, select the specific resolution/refresh rate to be presented as the preferred
resolution to the source
Save EDID button – use to save a copy of the EDID from the selected display to your PC/tablet device
Load EDID button – use to load a saved EDID to the selected input from your PC or device
(EDID files are available in the AMX EDID Library or they can be saved from a specific input or output.)
NOTE: When EDID Mode/All Resolutions is selected, the Preferred EDID drop-down list includes both standard EDIDs and Video
Information Code (VIC) EDIDs (denoted by either a “p” or an “i”). For a complete list of VIC EDIDs for your input boards see the “EDID
Resolutions Supported through Local DDC” section of the applicable board chapter.
HDCP Setting:
HDCP Compliance – click the check box to enable/disable HDCP compliance. When disabled, this serves to notify the
source that HDCP encrypted content is not allowed so that it will not try to send encrypted content.
NOTE: For additional EDID configuration information, see page 175.
Outputs Only
General:
Scaling (Mode) – click the button for the desired Scaling mode (Auto, Manual, or Bypass)
Resolution – in the drop-down list, select the output resolution/refresh rate to be used by the scaler; select the “Show
only EDID Display Supported (DS)” check box if desired
Aspect Ratio – click either Maintain or Stretch (Zoom and Anamorphic are also available for DXLink outputs)
Save EDID – click this button to save a copy of the EDID from the connected display to your PC/tablet device
NOTE: The scaler may not support all of the Display Supported resolutions. If not, select a scaled resolution from the larger list of
DGX supported resolutions.
