Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Enova DGX Model Specific Audio Switching Board Location
Enova DGX 800/1600 enclosures – Must use one input board (in left expansion slot) and one output board (in right
expansion slot). Boards are installed horizontally.
Enova DGX 3200 enclosures – Must use one input board (in left expansion slot) and one output board (in right expansion
slot). Boards are installed vertically.
Enova DGX 6400 enclosures – Must use two input boards and two output boards in specific expansion board slots (see
FIG. 82 below). Boards are installed horizontally.
CAUTION: Enova DGX 6400 – Audio Switching Input Boards
must be installed directly above standard Input Boards in left and right
slots and Output Boards must be installed directly below standard Output Boards in left and right slots. See the example in the figure
above.

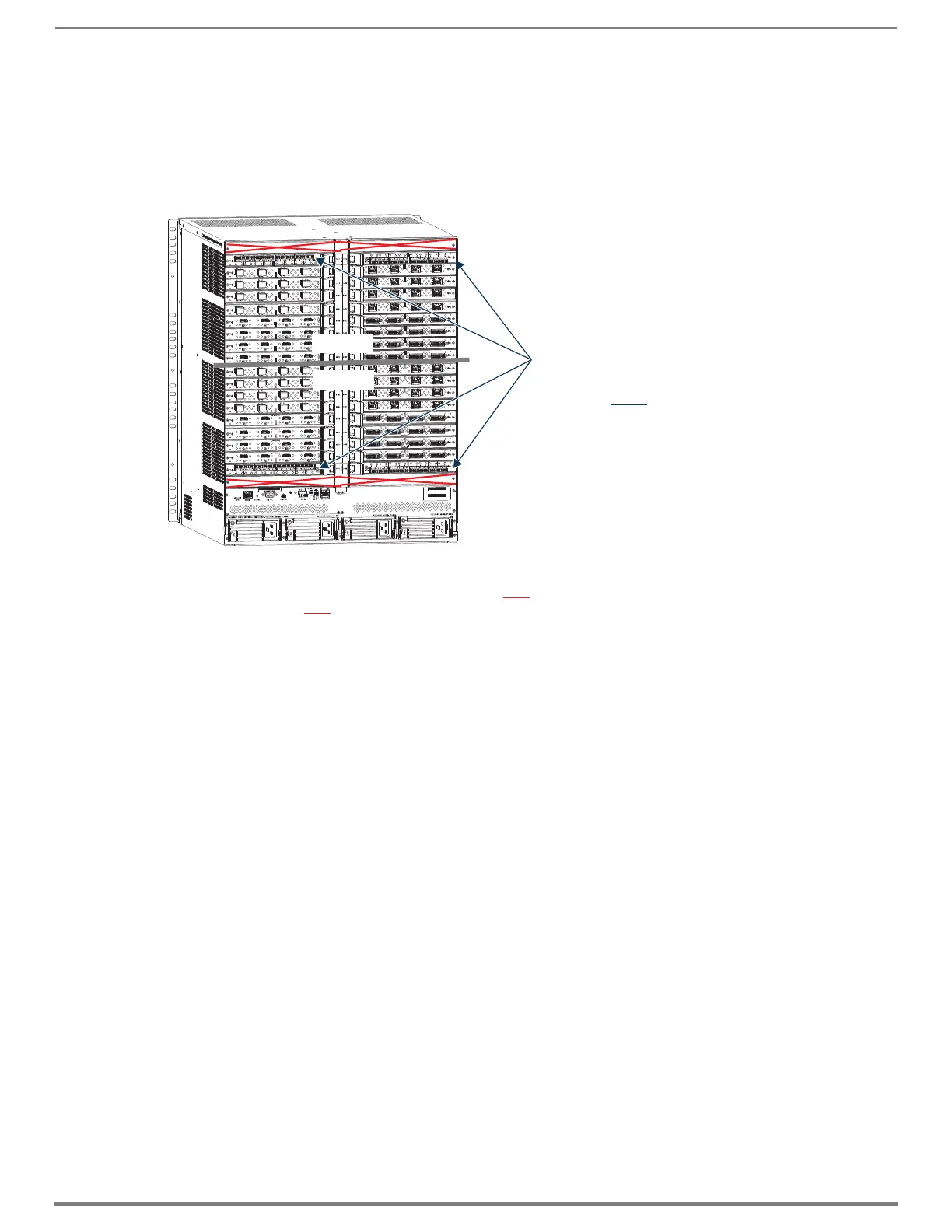

FIG. 82
Audio Switching Boards installed in correct expansion board slots in Enova DGX 6400
Inputs
Outputs
Audio Switching Boards in expansion board slots
IMPORTANT: Do not install Audio Switching Boards in the
expansion board slots indicated in the graphic by red “X”s).
