Control Panel Operation
230
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Default Virtual Matrix
The factory default virtual matrix for the Enova DGX Switcher is VM 0. You have the option of changing the factory default virtual
matrix for your system. When you choose a new default virtual matrix, the system will revert to that virtual matrix each time the
system is powered up even if you changed the virtual matrix using the V.Matrix list during normal operation. The power must be
cycled before the default virtual matrix changes are implemented. If you want to immediately switch on the default matrix, either
change the current virtual matrix (see page 220) or cycle the power.
The following example changes the default virtual matrix from VM 0 to VM 2, the audio matrix.

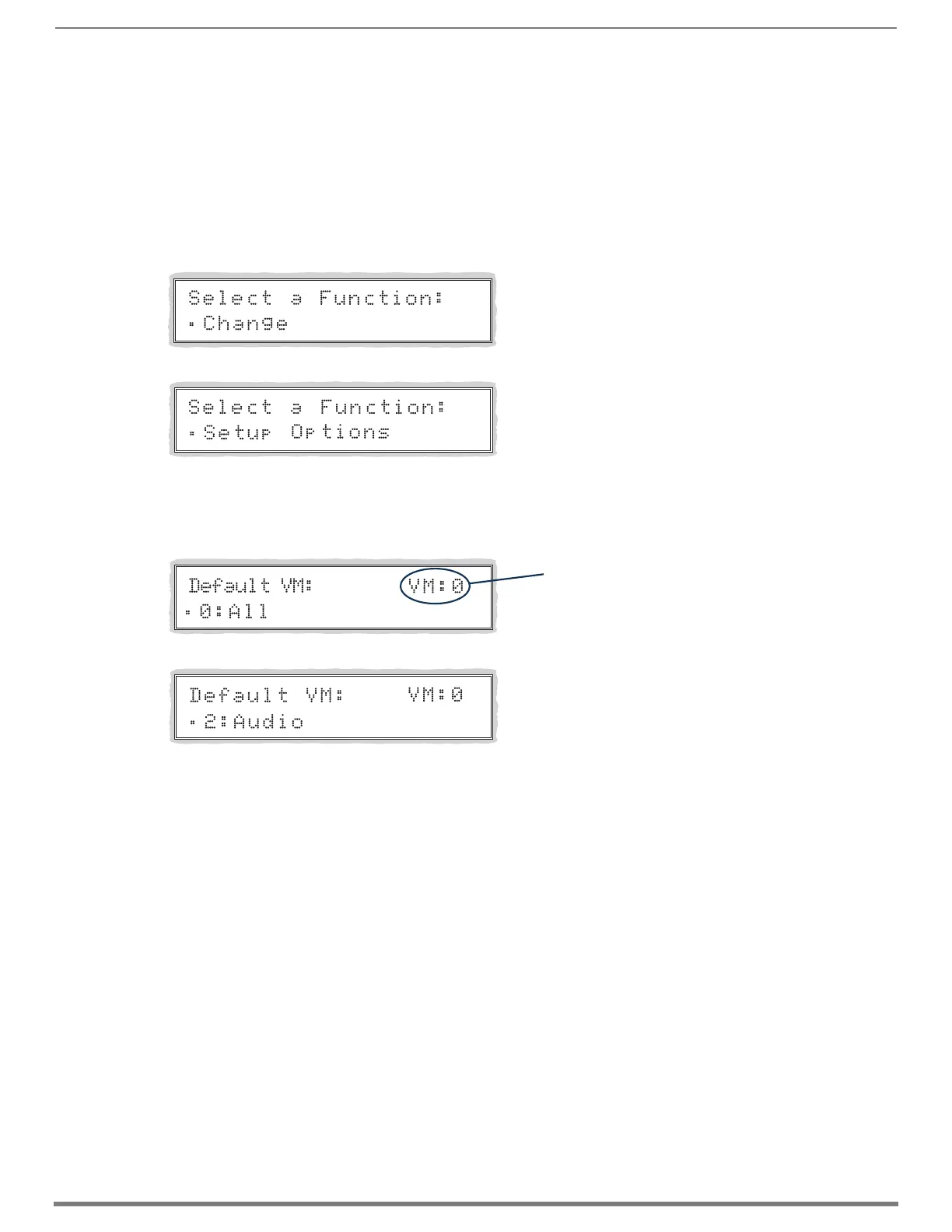

To change the default virtual matrix:
1. Press the Function Key.
The Function menu appears.
2. Locate Setup Options by scrolling with the Control Dial.
3. Press the Select Key.
The Setup Options submenu appears.
4. Scroll to Default VM.
Press the Select Key.
The Default VM list appears.
5. Scroll to 2:Audio.
6. Press the Select Key.
The display returns to the top of the Setup Options submenu.
7. Cycle power to implement VM 2 as the default virtual matrix.
Or
Change the virtual matrix (see page 220) to immediately execute operations on the new default virtual matrix without cycling
power. (The next time power is cycled, VM 2 will be implemented as the default virtual matrix.)
Current default virtual matrix
