Jumper setting for Slave (only mics & IO7 Clock) mode

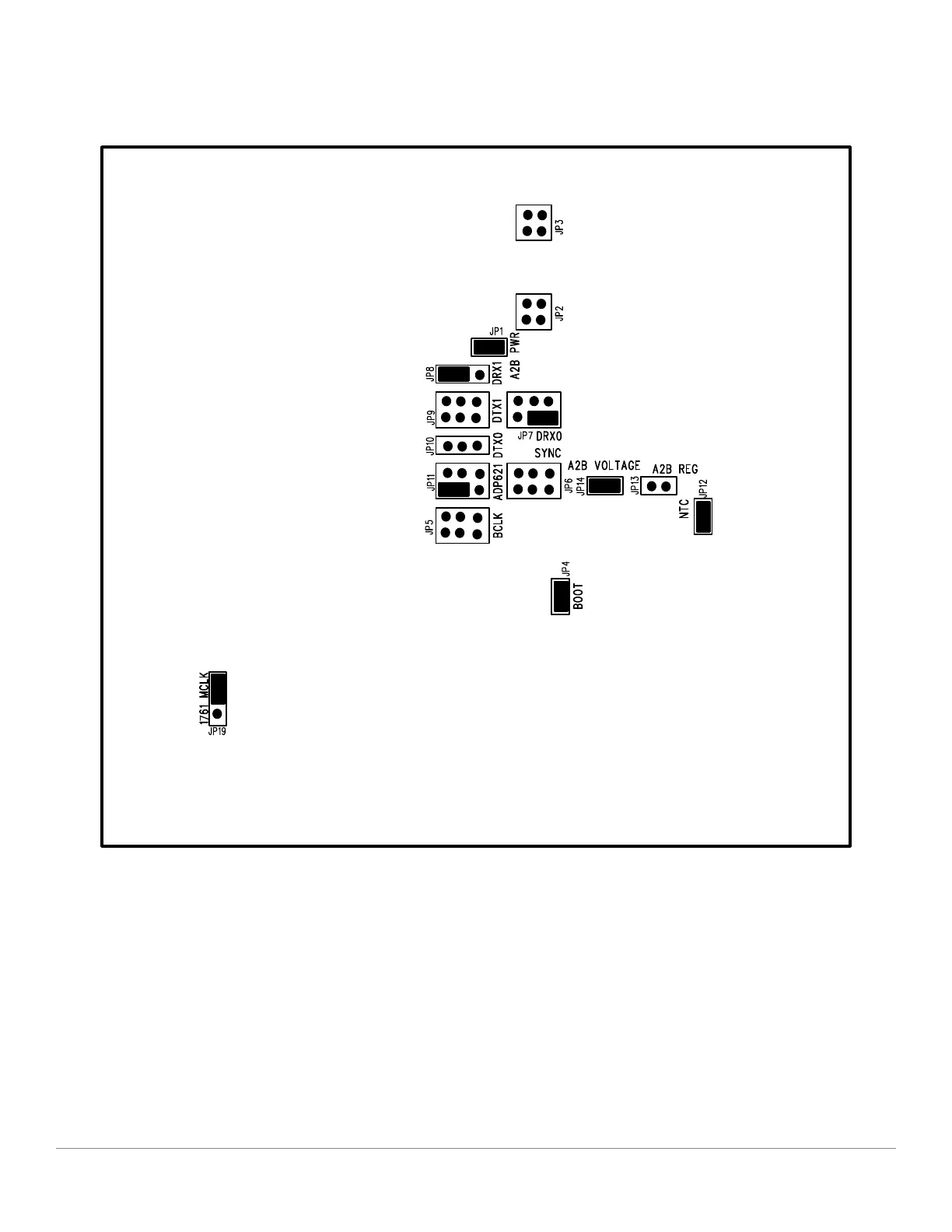

Figure 3-10: Slave with Microphones (PDMCLK/IO7 Clock)
Jumpers
EVAL-AD2428WD1BZ A
2
B Evaluation Board Manual
3–13
