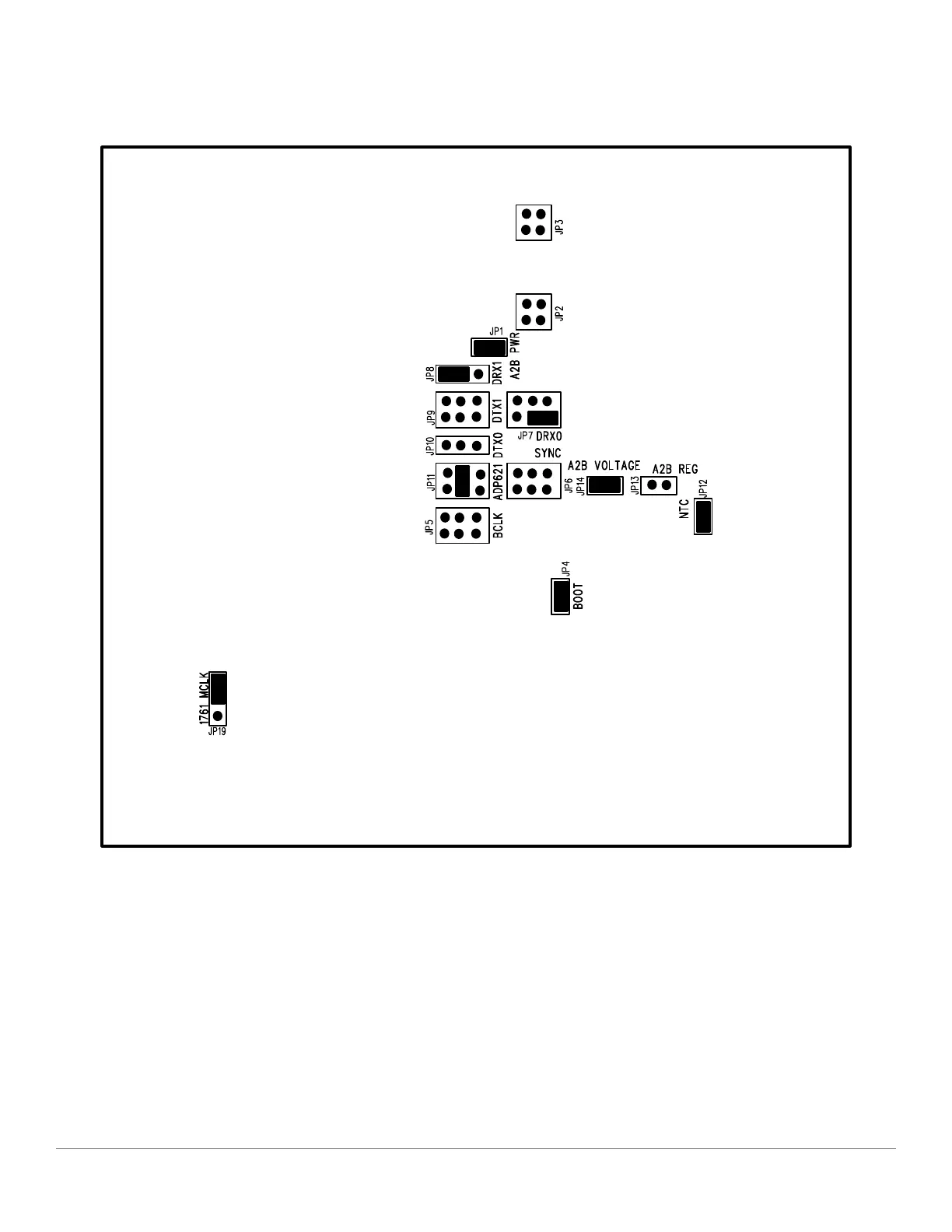

Jumper setting for Slave (only mics & no IO7 Clock) mode
Figure 3-11: Slave with Microphones (No PDMCLK/IO7 Clock)
Jumpers
3–14
EVAL-AD2428WD1BZ A
2
B Evaluation Board Manual
