26

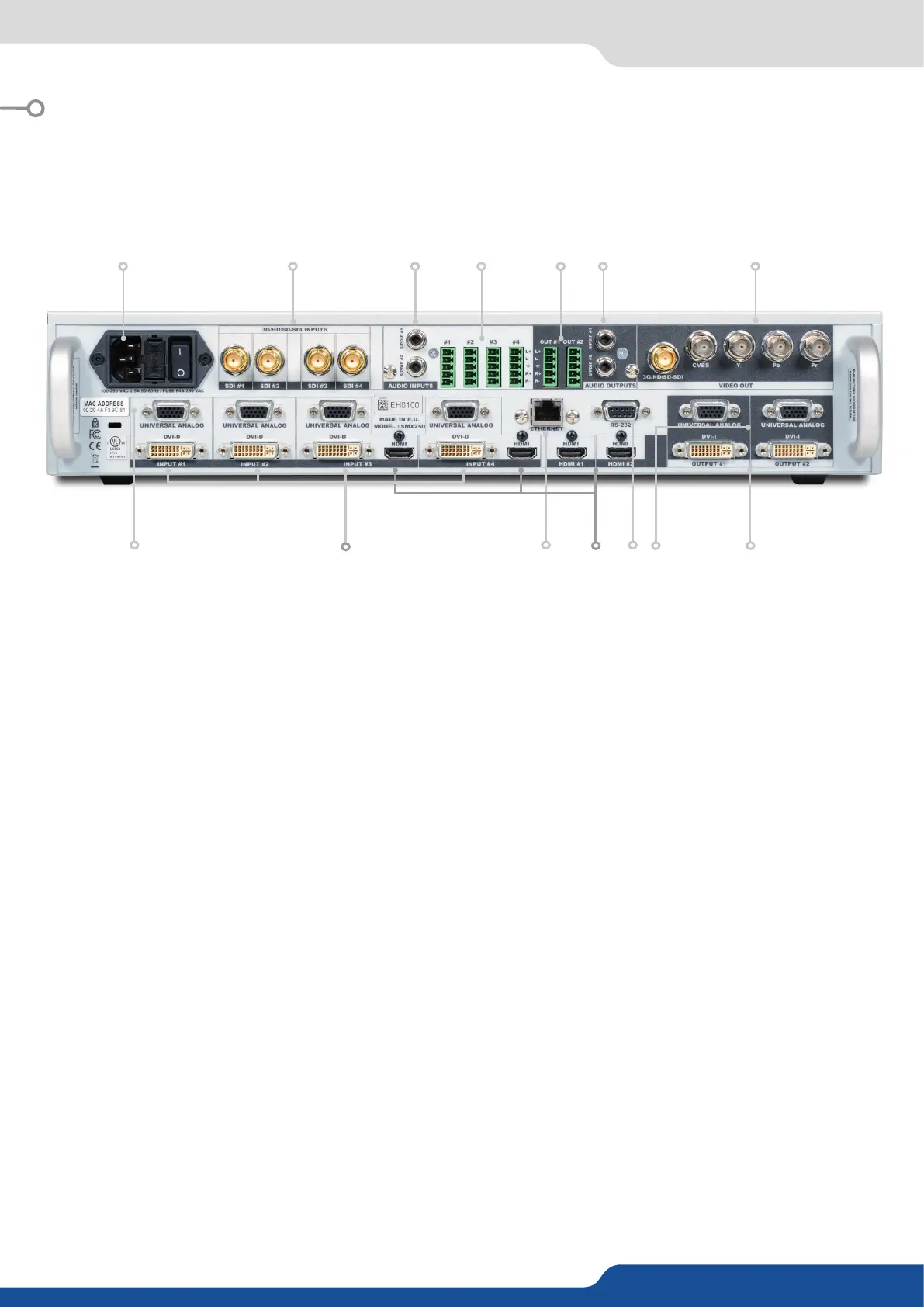

5.1.1 Rear panel SmartMatriX² - Ref. SMX250
1.  100-240 VAC 2.5A 50/60HZ / FUSE F4A 250 VAC; internal, autoswitchable; 110W
2. : inputs #1 to #4
3.  audio inputs #1 to #2
4.  for audio inputs (balanced) #1 to #4
5.  for audio outputs (balanced) #1 to #2
6.  audio outputs #1 to #2
7.  - 1 x BNC-F: 3G/HD/SD-SDI (with audio embedded)
- 3 x BNC-F: Y-Cb-Cr
- 1 x BNC-F: Composite video PAL/NTSC
8.  inputs #1 to #4
9.  DVI-D inputs #1 to #4. Capability to receive digital audio signal from HDMI®connector via
an adaptor (HDMI-compable)
10. 
11.  HDMI®inputs #3 to #6. Digital audio compliant
 communicaon port with DB9 female connector
 HD15 outputs #1 to #2
 DVI-I outputs #1 to #2. Capability to transmit digital audio signal towards a HDMI®connector
via an adaptor (HDMI-compable)
5. CONNECTING THE SMARTMATRIX²
5.1 

1 2 3 4 5 6 7
9 10
12
8
11
1413
