Analog way SmartMatriX2 User Manual

21

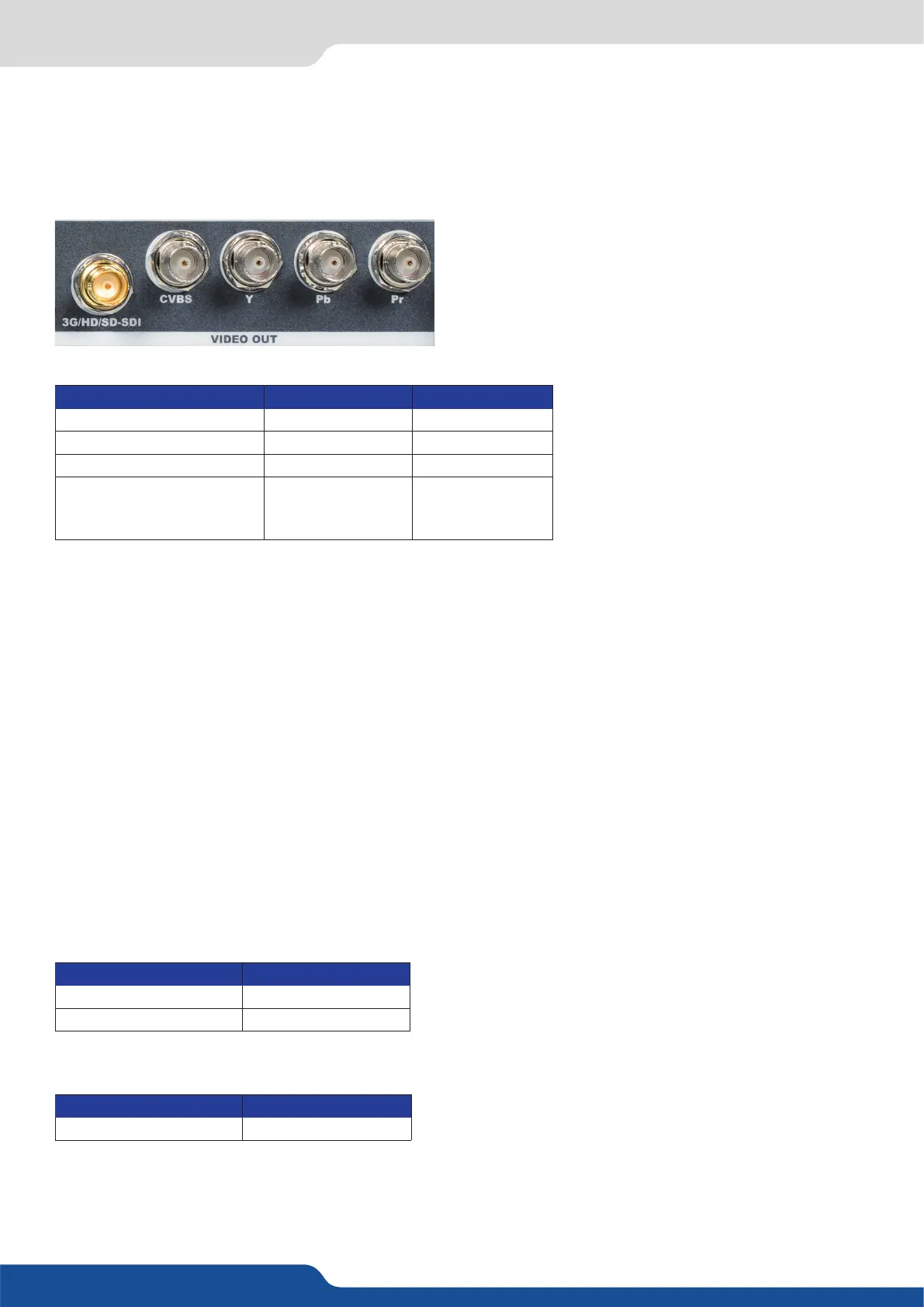

4.7.3 Video output
The SmartMatriX² has one video output.
This video output contains:
- 3G/HD/SD-SDI (BNC),
- Analog SDTV (4 × BNC: Composite, YC, YUV, RGBS).
Please see the output formats of the monitoring output:

Output Type  Signal
Video Y/C Output SDTV Analog SDTV
Video Y Pb Pr Output SDTV Analog SDTV
Video RGBSTTL Output SDTV Analog SDTV
SD-HD-3G-SDI Output
SDTV
HDTV
Cinema
Digital SDTV
Digital HDTV
DCDM - 2K
A standard RS232 interface is available through a DB9 female connector:
- It permits controlling the device
- It permits updang the device
Data Rate: 1200 to 115200 Bauds, 8 data bits, 1 stop bit, no parity bit, no ow control by default.
DTR & RTS needed for rmware upgrade.
4.8 
4.8.1 Serial interface

4.8.2.2 IP address
4.8.2 LAN interface
 Availability
TCP Yes
UDP Yes
 Availability
Stac user dened address Yes
A standard LAN interface is available through a RJ-45 connector
- It permits controlling the device
- It permits transferring conguraon
- It permits connecvity with the RCS² applicaon
- It permits updang the device
Default IP address: 192.168.2.140
