The conguraon of this secon is only available if the VIDEO OUT SETTING mode has been set to “RECORDING”
in the Precong > MISC secon.

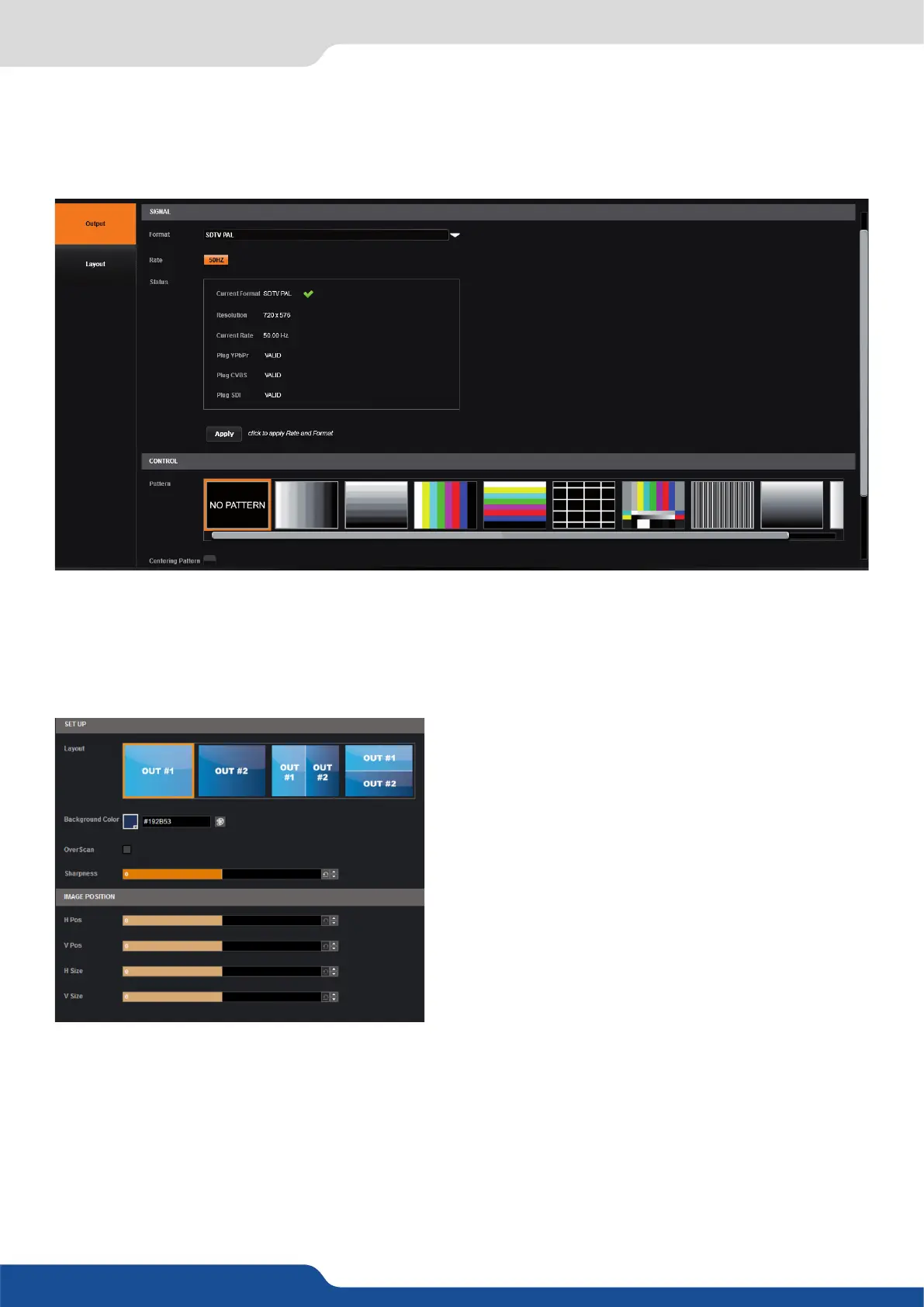

Into this secon, choose the output format of the video output.
You will nd the status of your output and the possibility to choose the test paern. In addon, you can
adjust:
 choose the value of the icker lter to disabled the icker eect on your screen (interlaced lines
eect),
 increase or decrease the gamma of your output,

Then you will be able to congure the Layout:
 congure the layout by selecng either
OUT #1, OUT #2 or a mix of OUT #1 and OUT #2.
 select the color of the
background,
 enable/disable the overscan/
underscan,
 adjust the sharpness of the image.
You can sll play with the H/V posion and H/V size in order to adjust accurately the video out image on your
nal screen.
