Analog way SmartMatriX2 User Manual

40

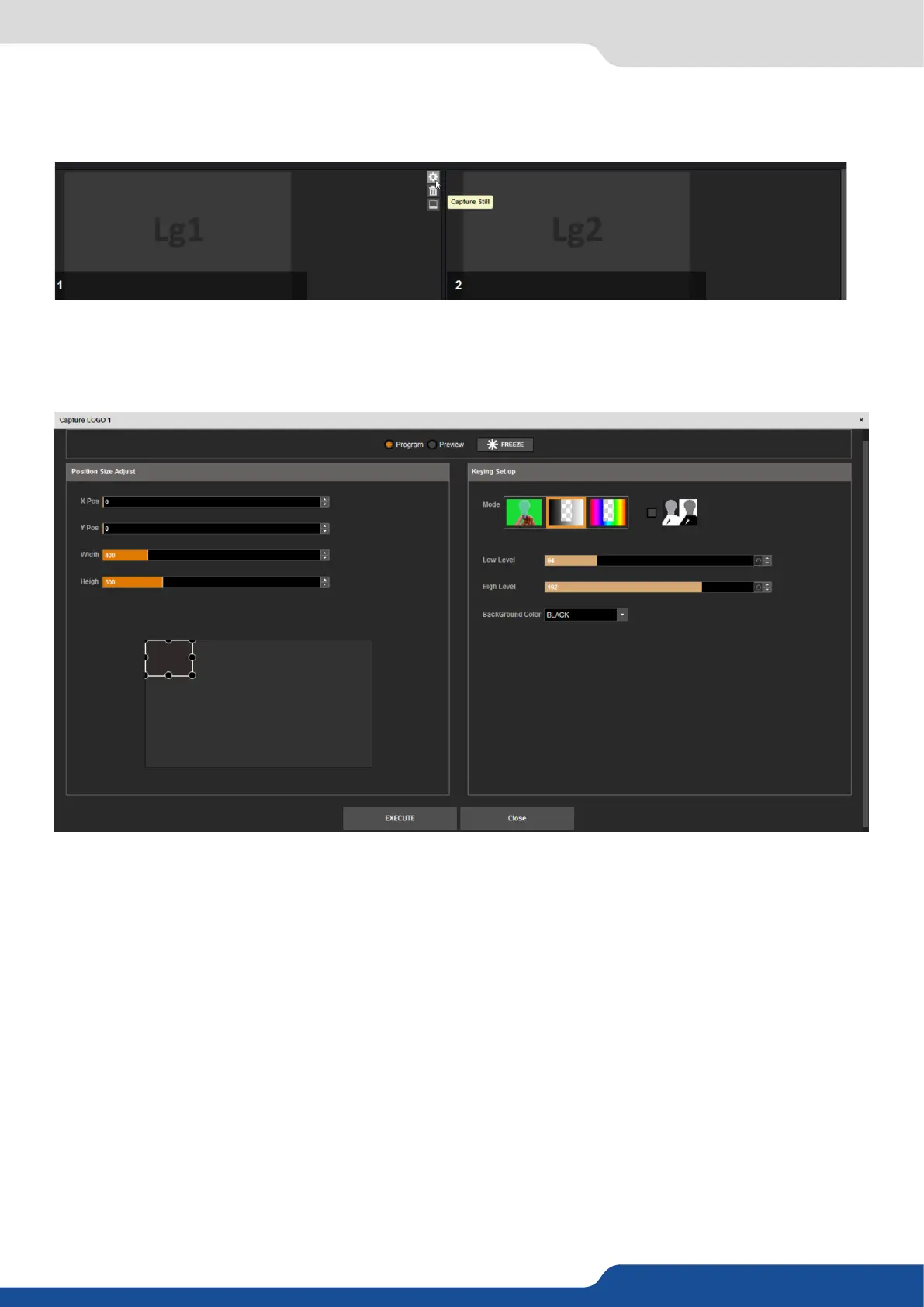

7.2.7 Logo management
To save a logo/frame click on this buon:
The next page opens.
From here you can capture from the main or from the Preview.
You can sll freeze the output before saving your logo/frame.
You can also ulize the logo keying feature to key away part of the image before saving the logo.

Select the area you want to save using the adjustable white square.
Once it is ok, simply click on execute to save the logo.

Choose rst Program or Preview, click on FREEZE if you want to freeze your output. Then click on EXECUTE to
save your frame into the selected slot.
