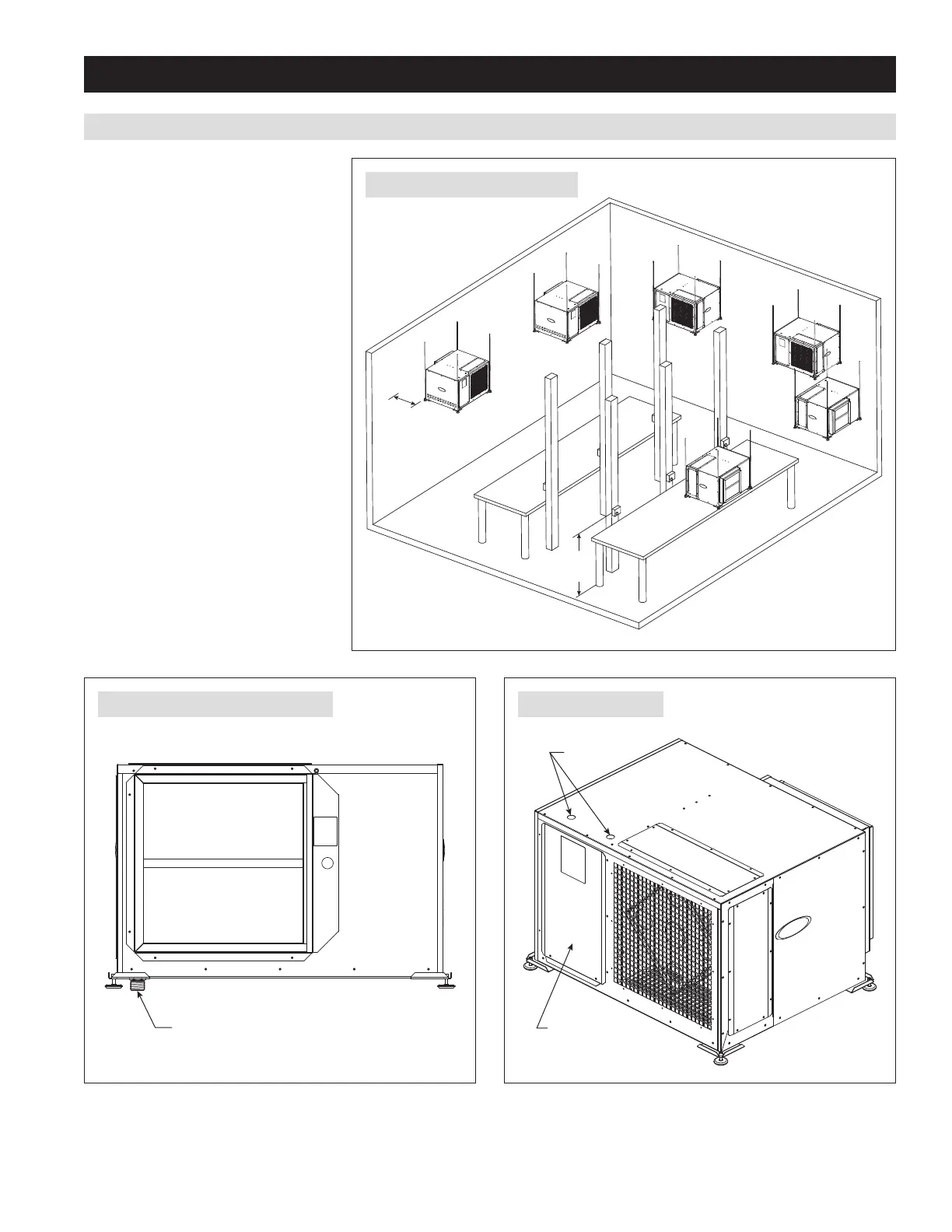

SET UP DEHUMIDIFIER FOR INSTALLATION
LOCATION CONSIDERATIONS
The dehumidifiers should be spaced evenly
throughout the area to be dehumidified with
the following recommendations:
1. Avoid placement where the discharge of
one dehumidifier is pointing toward the
inlet of another See FIGURE 1.
2. Account for handling dehumidifier
condensate by considering drain or sump
pump locations. See FIGURE 2.
3. Leave appropriate room on the electrical
service side to remove panel for field
connections. See FIGURE 3.
The recommended orientation is to install
the dehumidifiers around the perimeter
of the room with the dehumidifier inlet
pointing toward the wall and the outlet
pointed to distribute the dry air over the
canopy. This installation maximizes allowable
plant space and works with the existing
room fans to distribute air over the canopy.
ELECTRICAL
SERVICE PANEL
FIELD WIRING
ACCESS
DRAIN FITTING
16"
MINIMUM CLEARANCE
FROM WALL TO
DEHUMIDIFIER
INLET
CANOPY
HEIGHT
90-232890-2328
90-2329
FIGURE 3 – SERVICE SIDEFIGURE 2 – CONDENSATE DRAIN LOCATION
FIGURE 1 – PLACEMENT WITHIN SPACE
3
