INSTALLATION
IMPORTANT: Remove plywood shipping base before proceeding to the next installation steps.
The preferred method of installation is hanging – see HANGING section on page 5.
The alternate method is floor level placement. Replace the eye bolts with the included 1/4"–20, 1.0" thread length rubber cushioned leg levelers.
In each installation the unit must be level for proper draining.
DUCTING & FILTER INSTALLATION
The preferred methods of installation are hanging, followed by floor level placement with straight through airflow. There are alternate discharge
openings on the top, bottom, and side of the unit. See FIGURE 5. If ducting the inlet, all duct connections should be installed in accordance with local
and national standards. For the highest fan efficiency, any duct bends and transitions should be made to minimize airflow losses. For the A200V1, at
least one discharge opening must remain uncovered and for the A300V1 or A300V3, at least two discharge openings must remain uncovered, one
of which must be the large opening on the panel opposite the inlet panel. More discharge openings uncovered will provide the highest capacity and
efficiency. Covers are included with the dehumidifier to close off discharge openings that are not to be used.
Before installing the unit, remove the shipping platform from the unit and install the inlet duct with filter using the 6 provided screws. Install the filter
access door using the knob to secure. See FIGURE 6.
ALTERNATE DISCHARGE
AND ONE ON BOTTOM
SHIPPING
PLATFORM
FILTER DOOR
FILTER
AND RACK
14.00
FILTER ACCESS DOOR
14.13
15.50
14.88
14.88
15.50
All discharge openings are the same size. Use 6" x 15" duct.
OUTLET DUCTINGINLET DUCTING
90-2328 90-2328
90-2328

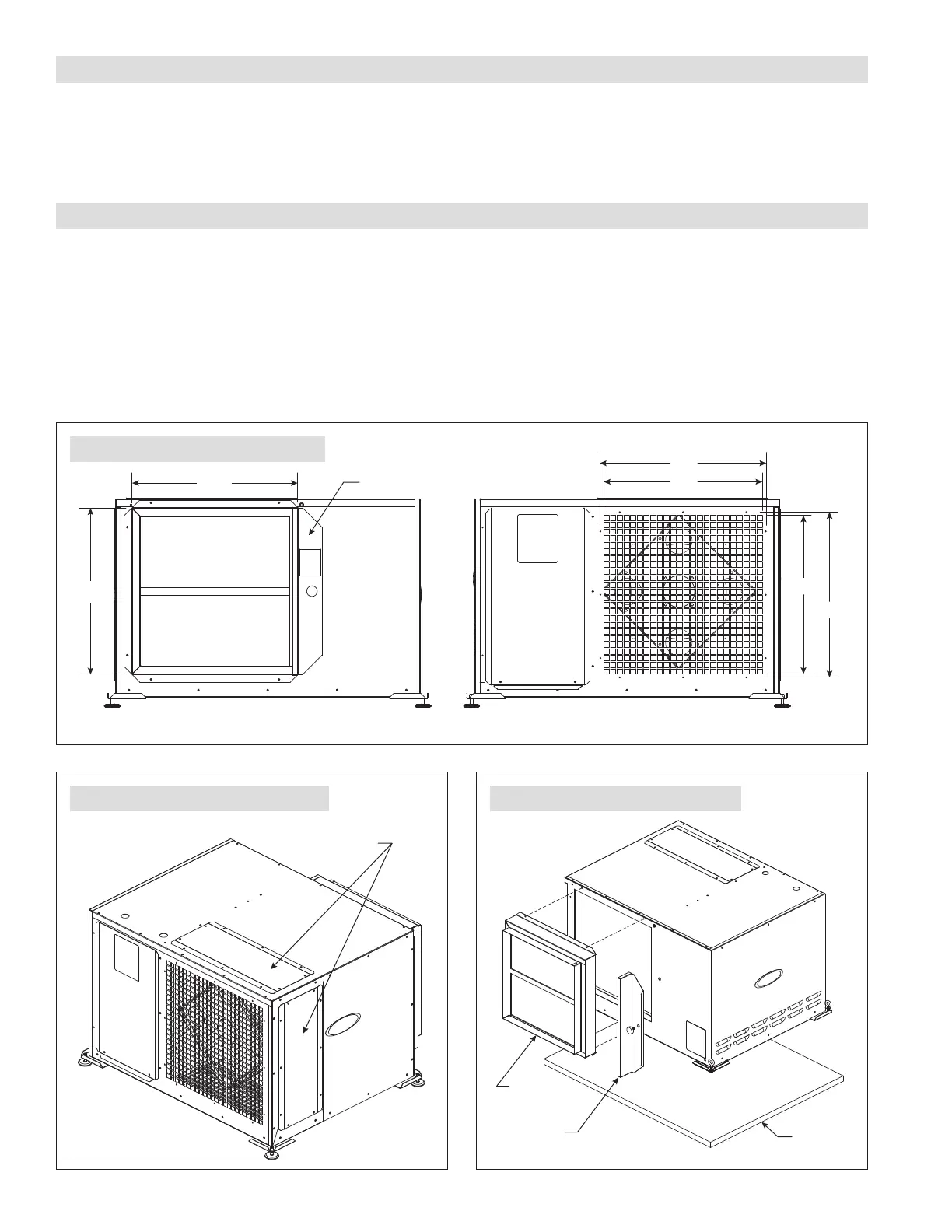

FIGURE 5 – ALTERNATE DISCHARGE LOCATIONS FIGURE 6 – PREPARE UNIT FOR INSTALLATION
FIGURE 4 – DUCT CONNECTION SIZES (INCHES)
