POWER WIRING
WARNING
ELECTRICAL SHOCK HAZARD: High voltage may cause serious injury or death from electrical shock. Disconnect and tag electrical service before
starting installation or field-service. Leave electrical service disconnected until installation or field-service is complete.
ELECTRICAL SHOCK HAZARD: An interrupted or broken ground may cause property damage, serious injury or death should an electrical fault
occur. The cabinet must be grounded in accordance with NEC ANSI/NFPA 70-2011 or local codes. In Canada, refer to Canadian Electrical Code
CSA C22.1.
FIRE HAZARD: Use of improper wire may cause serious injury, property damage or death due to fire. Do not use aluminum wire for electrical
service to the dehumidifier. Use only copper wire.
CAUTION
Use of an undersized circuit breaker may cause property damage and/or the need for mold remediation service. See Specifications for wire and
circuit breaker sizing.
The dehumidifier must be hard wired, and an electrical disconnect switch must be installed to comply with appropriate codes or ordinances.
United States Installations: Make all electrical connections in accordance with the current edition of the NEC ANSI/NFPA 70 and any local codes or
ordinances that may apply.
Canada Installations: Make all electrical connections in accordance with the current edition of the Canadian Electrical Code CSA C22.1 and any local
codes or ordinances that may apply.
TABLE 2 – ELECTRICAL SPECIFICATIONS FOR HARD WIRING
Model A200V1 Model A200V1 Model A200V1
Voltage 230-240 VAC, 60 Hz, 1 phase 230-240 VAC, 60 Hz, 1 phase 265-277 VAC, 60 Hz, 1 phase
Minimum Circuit Capacity 13 A 18 A 15 A
Maximum Fuse or Circuit Breaker Amps 20 A 30 A 25 A
Minimum Wire Size AWG 14 AWG 12 AWG 14 AWG
If using the alternate drain fitting, follow the steps below to remove the
existing drain and install the alternate.
1. Remove the side panel adjacent to the inlet duct. See FIGURE 12.
2. Remove the nut and O-ring from the existing drain and pull out
existing drain.
3. Remove the nut from the alternate 90° drain fitting with hose barb
connection and insert the new fitting into the drain. NOTE: Use
plumber's putty between the drain and water side of the drain pan.
4. Install the nut and hand-tighten.
5. Pour a small amount of water in the drain to verify the seal between
the drain fitting and drain pan.

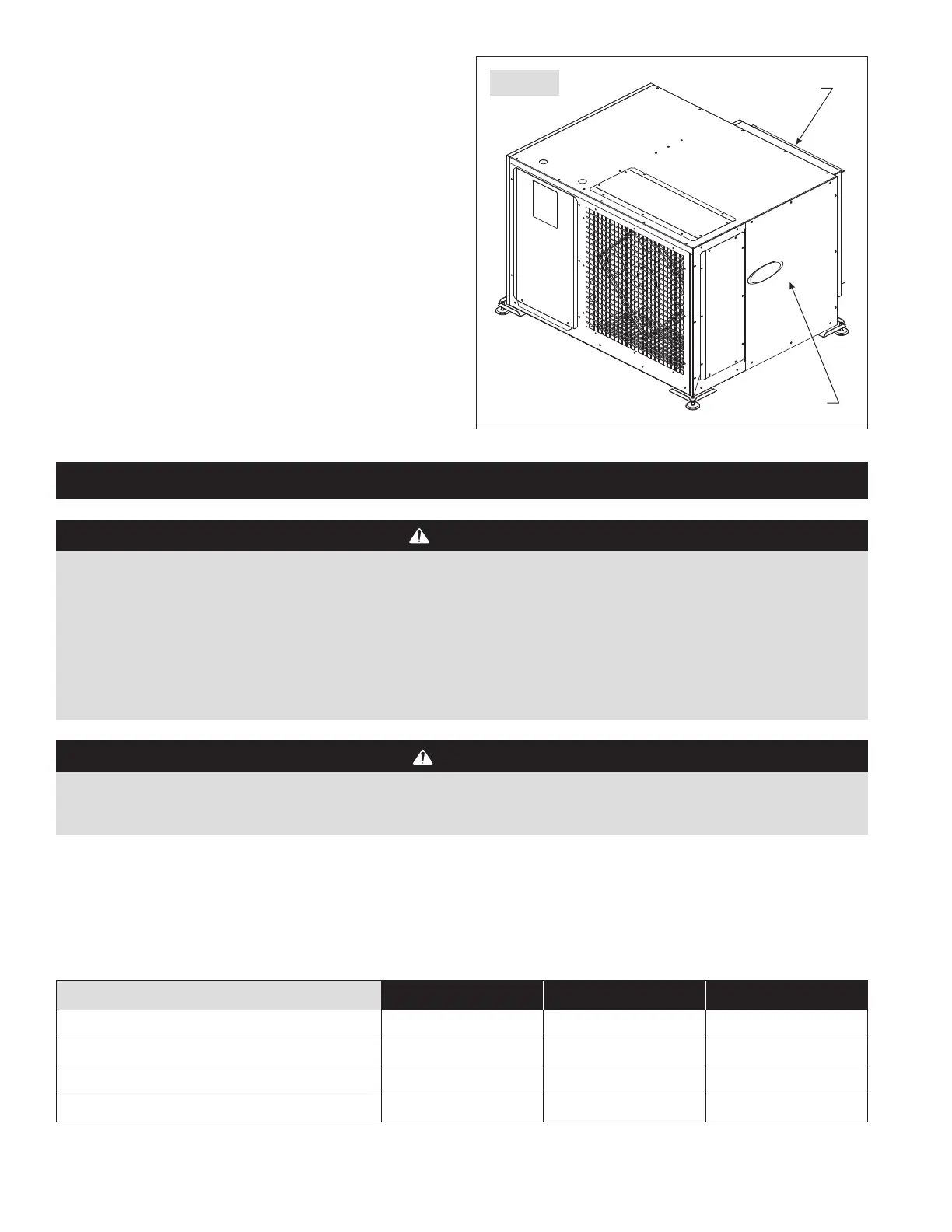

REMOVE THIS PANEL
INLET DUCT AND FILTER
90-2328
FIGURE 12
6
