Anden A200V1 User Manual

WIRING INSTRUCTIONS
1. Disconnect electrical service at the main fuse or circuit breaker box.
2. Install an electrical disconnect to the line service, located per local and national standard.
3. Remove the electrical service panel from the dehumidifier. See FIGURE 13.
4. Route the service cable through one of the holes in the top of the dehumidifier. USE ONLY COPPER SUPPLY WIRES.
5. Secure the cable/conduit to the dehumidifier using fittings/connectors approved for the type of cable/conduit used.
6. Connect the ground wire of the service cable to the ground lug in the electrical service box. See FIGURE 14.
7. Connect the line voltage wires of the service cable to the L1 and L2 terminals. See FIGURE 14.
8. Reattach the electrical service panel.
9. Restore electrical service at the main fuse or circuit breaker box.
GND
L2
L1
2-POSITION POWER TERMINAL BLOCK AND GROUND LUG
LOCATED IN DEHUMIDIFIER ELECTRICAL PANEL. INSERT WIRE
INTO OPENING AND SECURE USING THE TERMINAL SCREWS.
ELECTRICAL SERVICE OPENINGS
ELECTRICAL
COMPARTMENT
90-2328

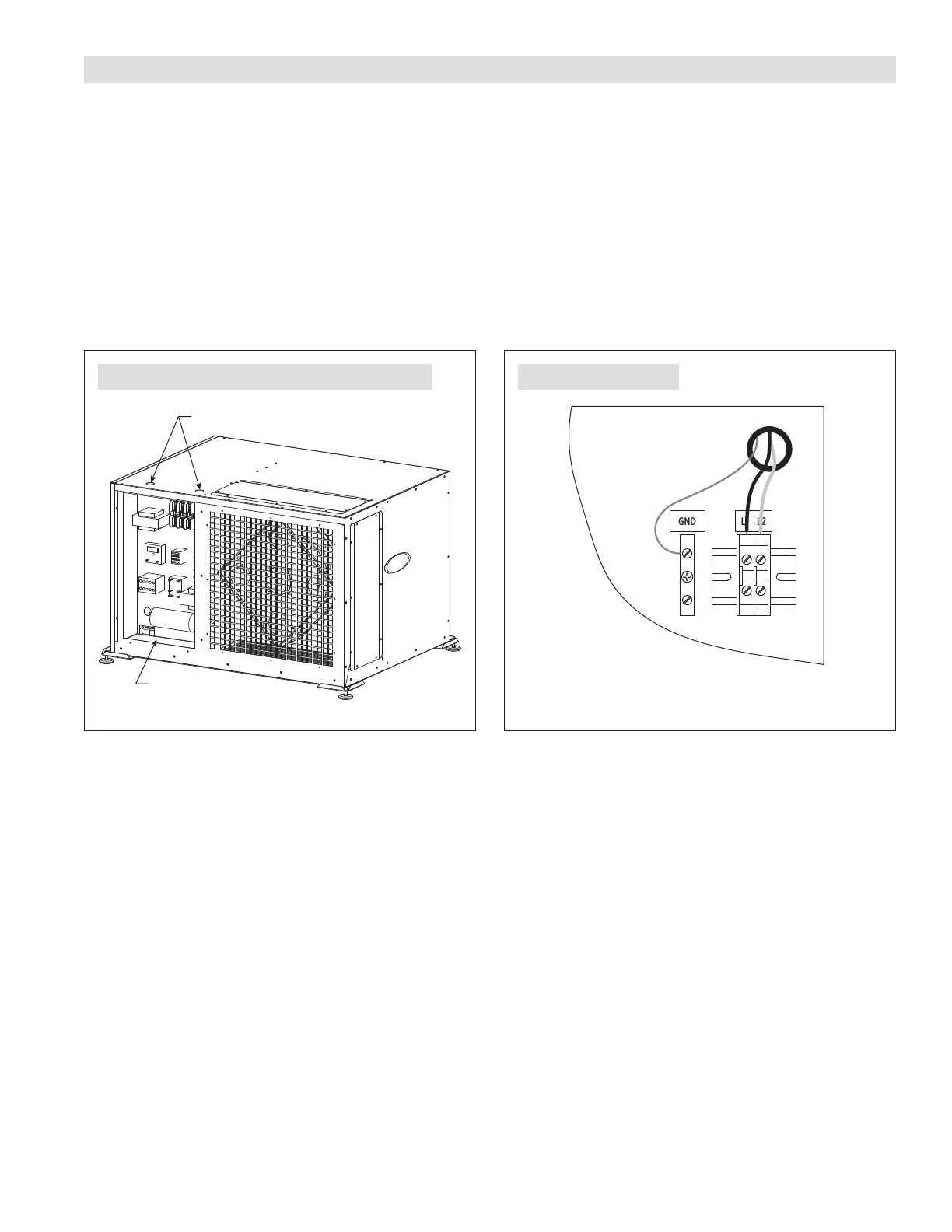

FIGURE 14 – POWER WIRINGFIGURE 13 – ELECTRICAL CABINET (SERVICE PANEL REMOVED)
