7.10. Lock dismantling
To replace the lock, follow the instruction below:
1. remove the cap of the handle using a thin screwdriver ( picture 1);
2. unscrew the handle securing screw (picture 2);
3. remove the blocking lock by unscrewing the three screws on the door (picture 3);
4. remove the safety clamp on the lock assembly (picture 4); CAUTION: Be careful not
to pull out the whole body of the lock assembly from his housing.
5. install the handle on the lock assembly taking care to engage the pin on the spring
(pictures 5a and 5b);
6. fix the handle on the lock with the screw adding Loctite 243 ( picture 6);
7. mount the lock – handle assembly on the door with the three screws. Add on each
screw Loctite 243 (pictures 7a and 7b). Before securing the screws control the
vertical alignment of the handle.

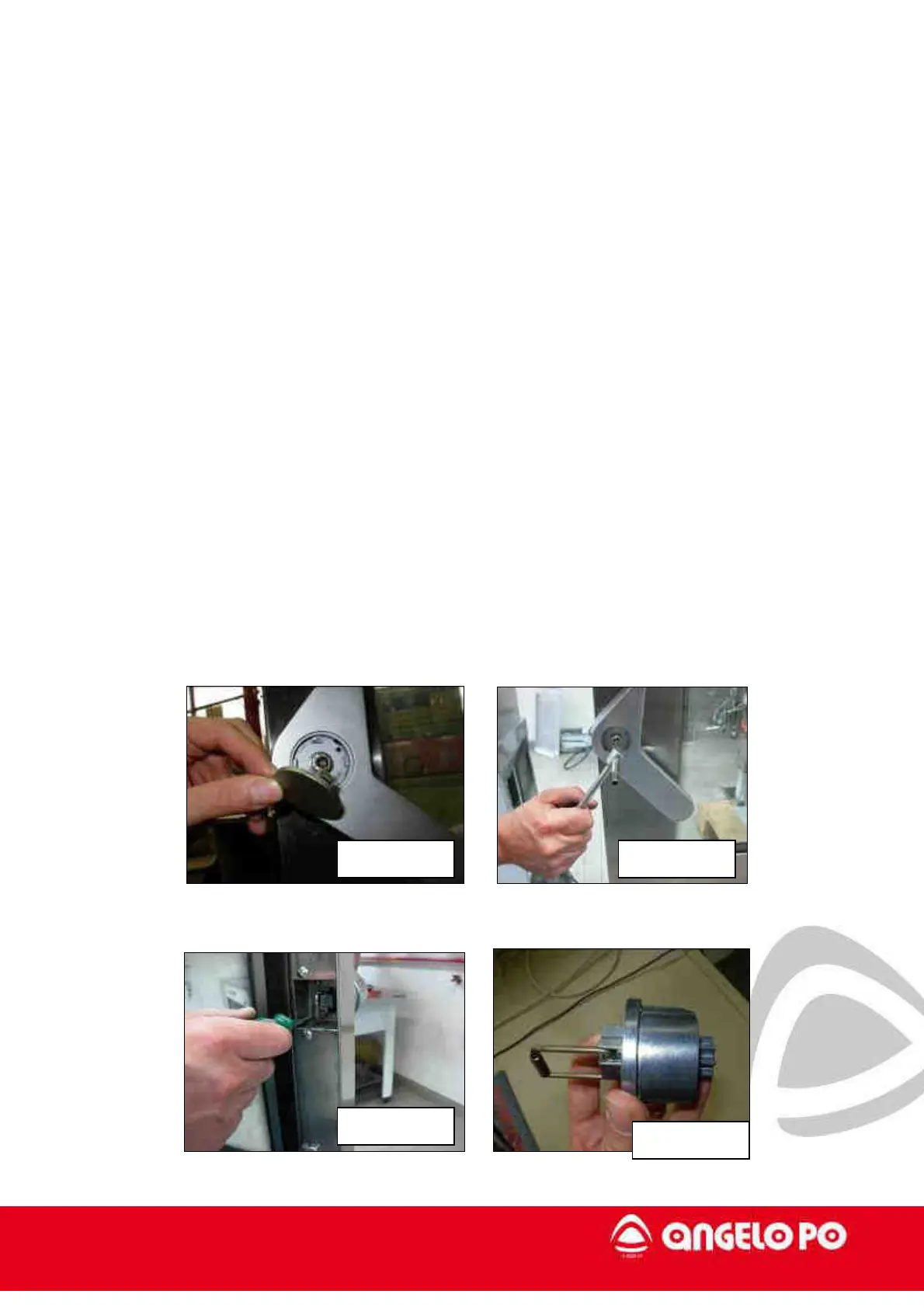

PICTURE 1 PICTURE 2
PICTURE 3
PICTURE 4
