7.6. Door adjustment
The right door adjustment (models FX 61/101/82/122) is done in three points:

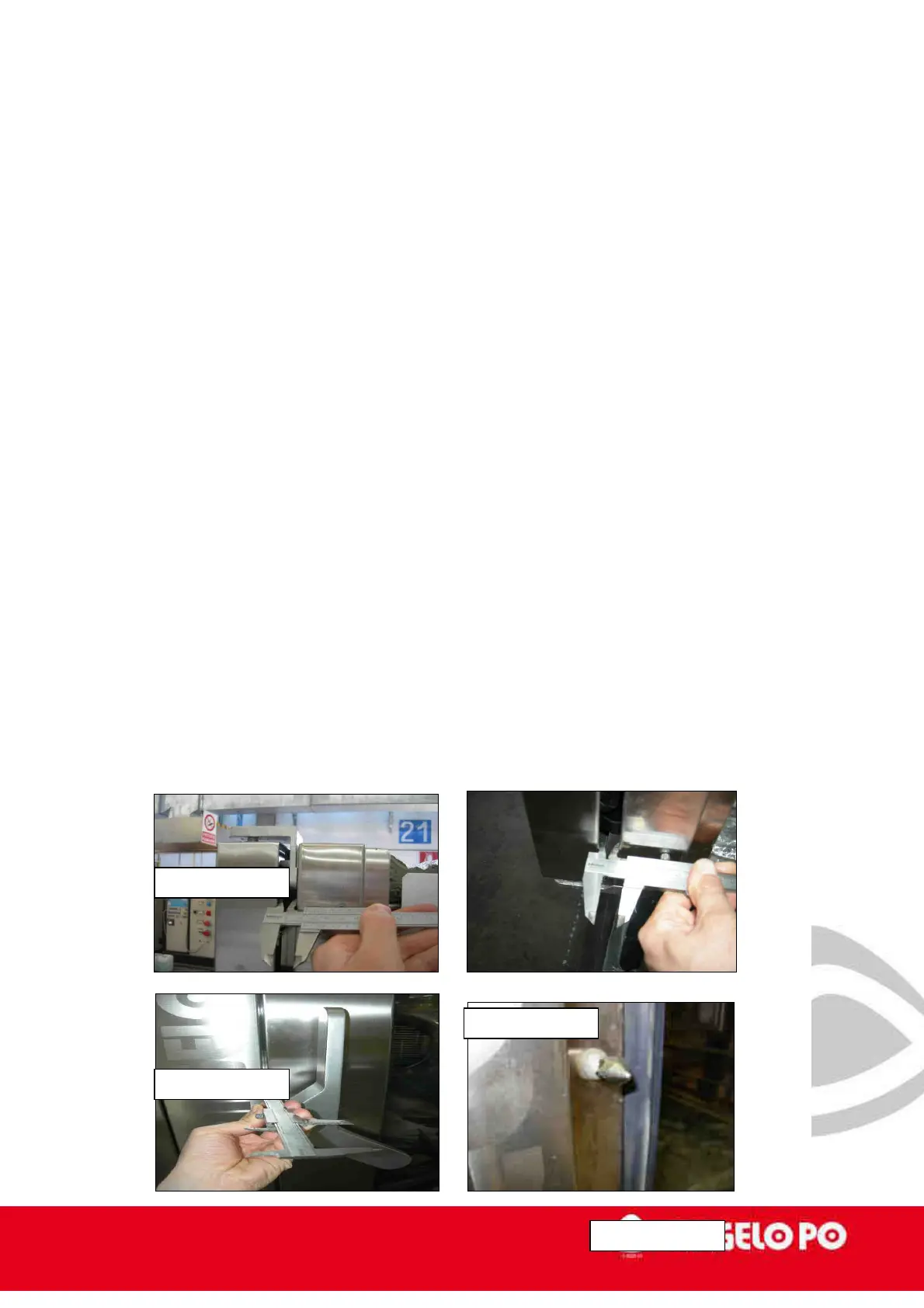

1 - To check the adjustment on the right, measure with a gauge the distance between the
inner edge of the door and the facia, as shown in the two following figures (photos 1 and
2). This distance should be between 15 and 16 mm, both high and down.
If one of the two distances measured is not into this range, proceed with the adjustment by
loosening the screw top or bottom;
2 - To check the adjustment on the left, measure with a gauge the depth between the outer
face of the door and the front of the oven (photos 3).
Attention: the gauge must be in horizontal position. The measure must be:
between 60 and 61mm for models 61/101
between 65,5 and 66,5mm for models 82/122
3 - If the measure is not in this range, you should adjust the door by screwing or
unscrewing the pin on the facia of the oven making sure that the pin is horizontal (see
photo 4).When the adjustment is done, work with the oven on steam to check the tightness
of the door gasket.
