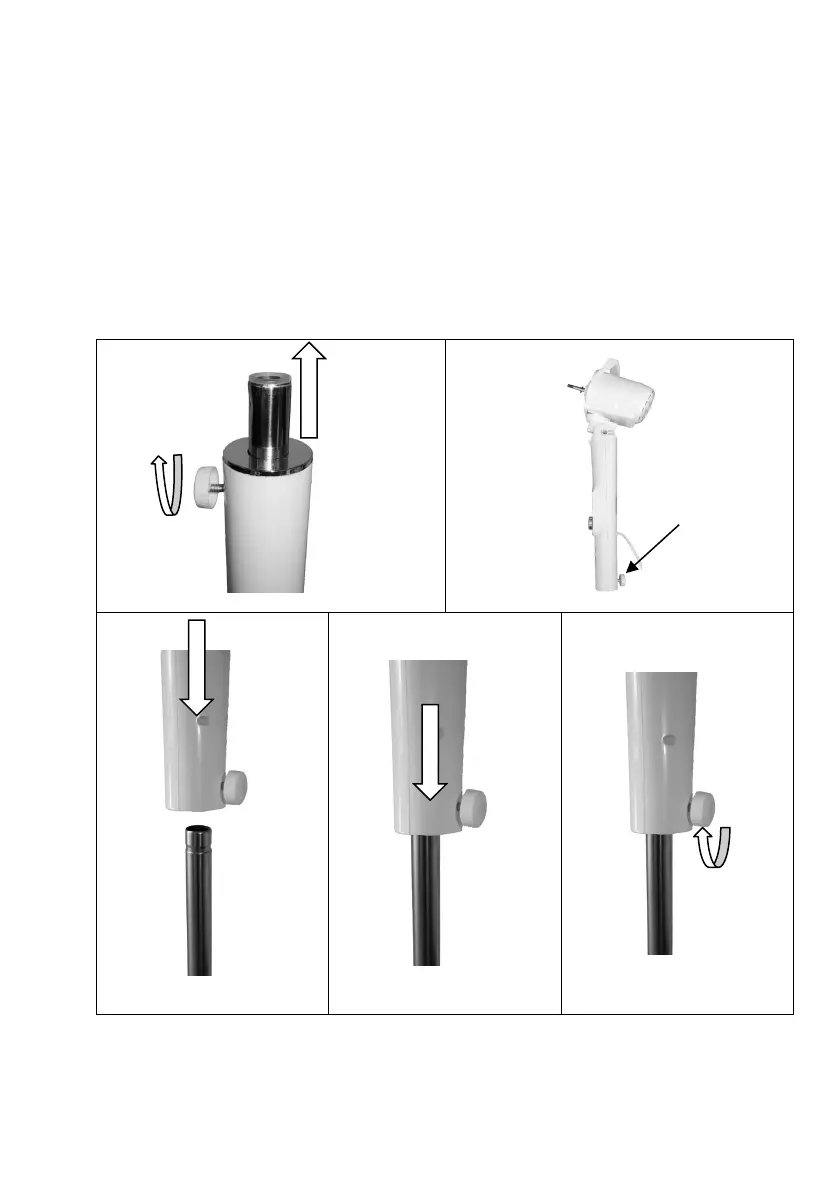

3.2 Attach Head to Stand
• Stand the Base with attached post on the floor.
• Loosen (anticlockwise) the post Height Adjustment Locking Screw, pull out the
inner chrome tube to the desired height and then retighten the locking screw.
• Place Motor assembly at the top of the Stand Post and lower down all the way.
Note: if the motor assembly will not slide down the chrome post, loosed the Head
to Post Locking Screw on the back of the motor assembly until it can slide down.
• Tighten the Head to Post Locking Screw (Clockwise). Do Not overtighten.
