Page 9 of 28

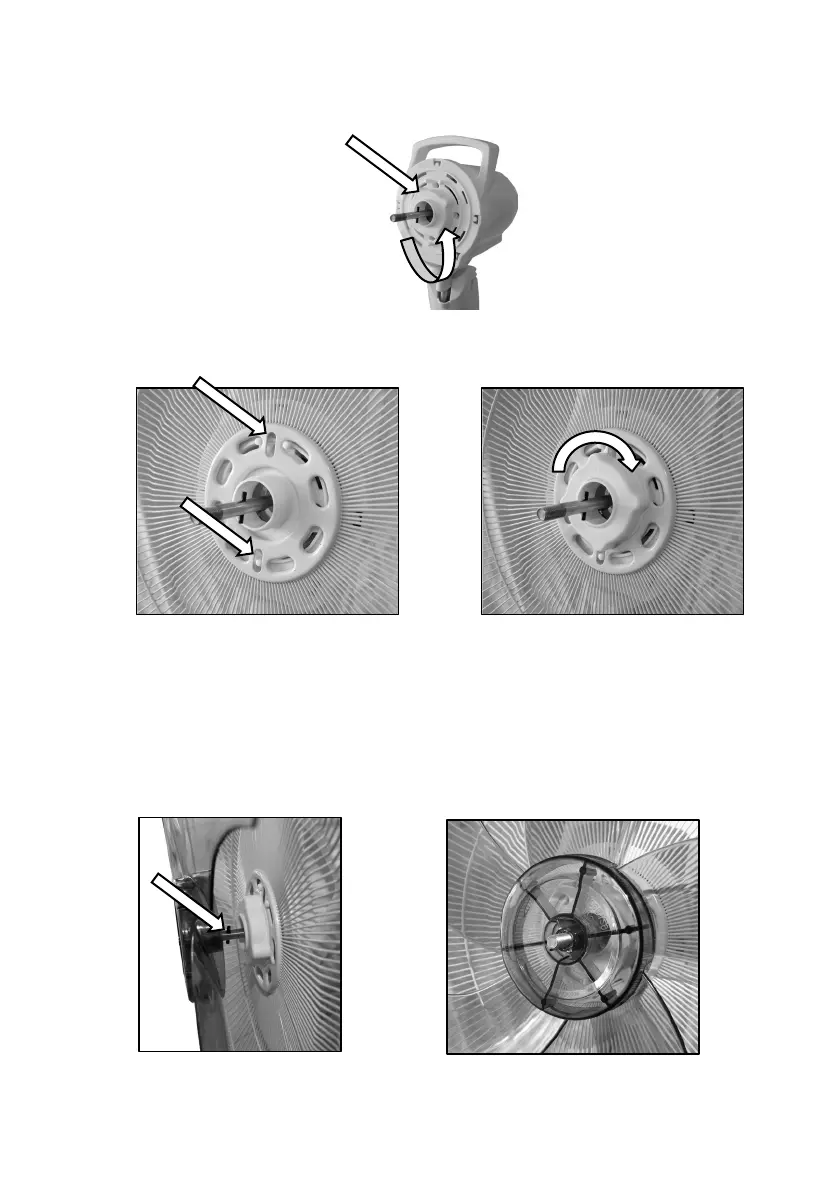

3.3 Safety Grille and Fan Blade
• To assemble the safety grille and blade assembly, first remove the Rear Grille Nut
(Anticlockwise) from the front of the fan motor housing.
• Fit the rear safety grille into position with the slots in the 12 and 6 o’clock position
ensuring the location pins are located as shown below, and refit the Nut and tighten.
• If Fitted, remove the protective plastic sleeve from the motor spindle shaft and
discard.
• Place the Fan Blade onto the motor spindle.
Note: The groove in the rear centre of the fan blade aligns with a T-bar on the motor
spindle to ensure correct positioning.
