Page 10 of 24

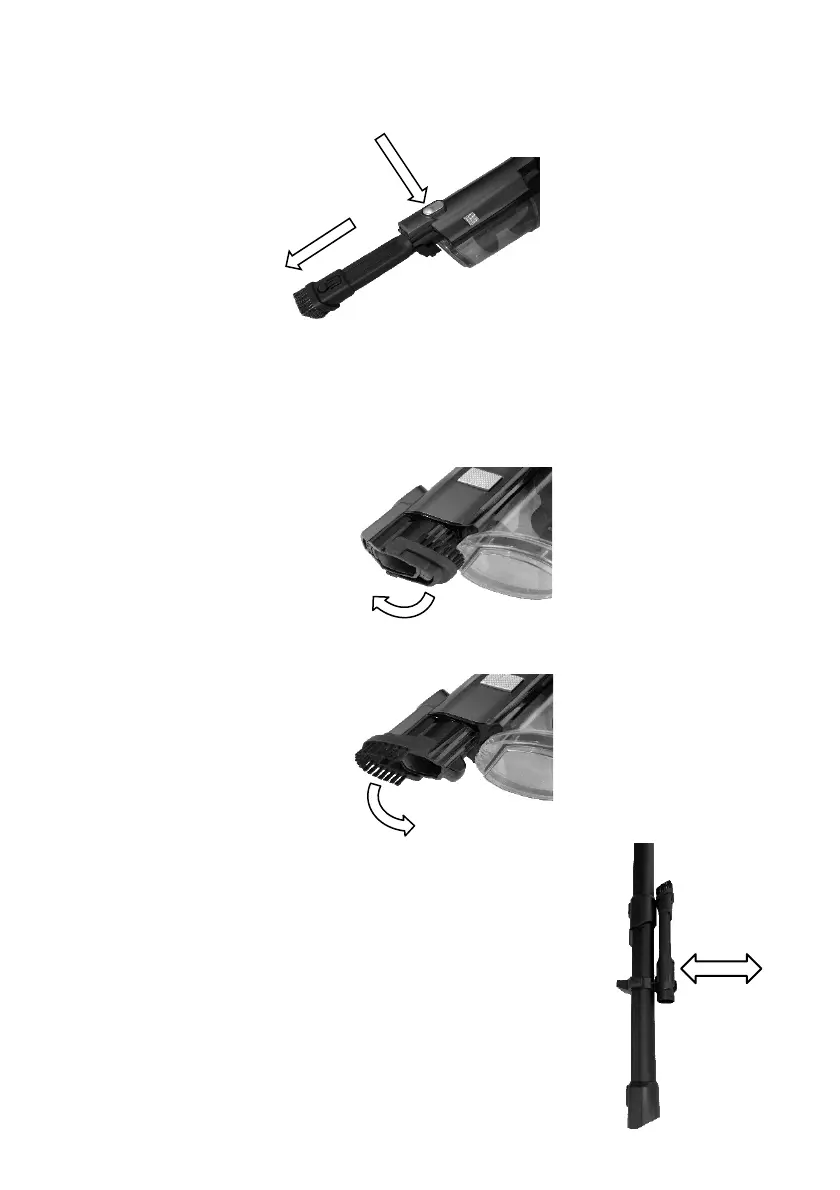

To remove, press the locking button down to release and then pull the tool
straight out.
There is also a flip up brush on the inlet section of the vacuum cleaner body.
To use this brush, grasp and rotate it upward until it latches in place as
shown.
To fold away, grasp and rotate downward until it latches in place.
Tool Holder. Located on the lower Extension Tube.
Attach the Tool by pushing it into the clamp as shown.
To remove, grasp the tool and pull straight out.
