5 Assembly Method
Please Note: Always remove the Battery Charger from the power socket
before assembly.
5.1 Assembling the Extension Tubes

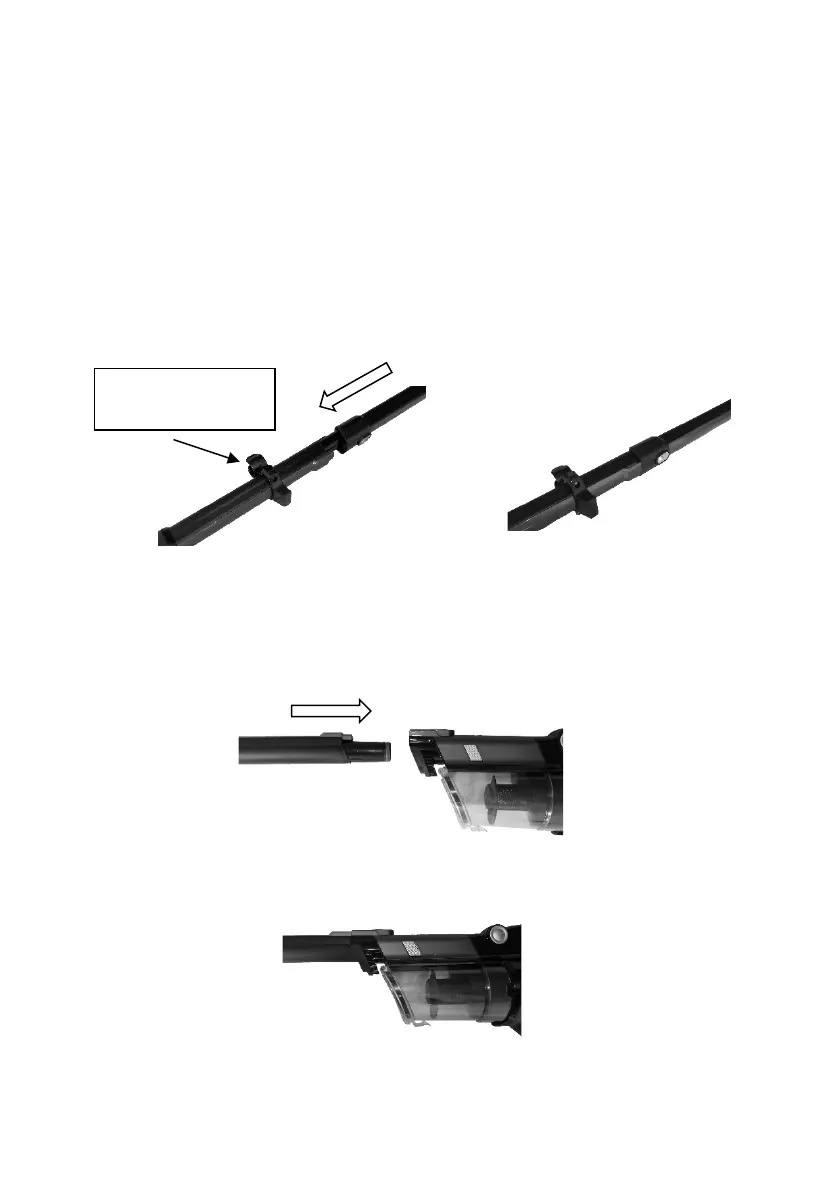

There are two sections of Extension tube. These need to be assembled in a
specific order so that the tube with the tool holder is the lower section.
With the Tube ends aligned, push the two tubes together until they lock
together.
Insert the top end of the Extension Tube into the mating hole in the vacuum
cleaner body ensuring the locking tab is aligned, then push inward until it
locks into place.
Tool Holder on
Lower Tube
To Next Page
