Page 20 of 24

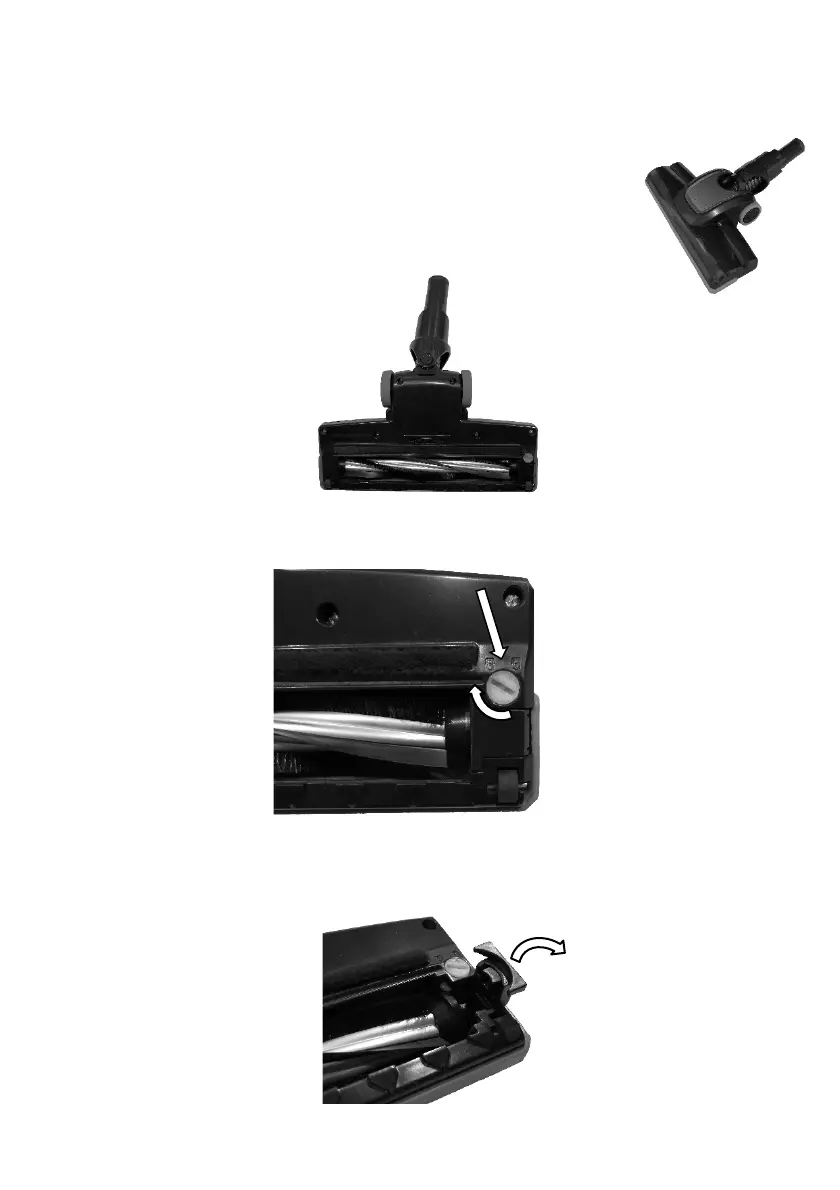

9.4 Cleaning the Motorised Floor Head
The Rotary Brush in the floor head can be removed for easy cleaning and
removable of hair etc.
Ensure the Floor Head is removed from the extension tube
or vacuum cleaner.
Turn over so that the bottom face is facing up.
There is a small locking screw on the right side which needs to be rotated 1/8
of a turn clockwise to unlock. You can use a flat blade screw driver or a small
coin.
When unlocked, swing up the cover as shown.
To Next Page
