1-9 Ethernet LAN TCP/IP Requirements and Setup General GPIB Information
1-20 PN: 10370-10374 Rev. F MG369xC GPIB PM
Example PC Control of MG369xC via LAN
Following is an example of controlling the MG369xC using the NI-MAX utility.
1. On the host machine, run NI MAX and expand Devices and Interfaces.
2. Expand VISA TCP/IP Resources and select TCPIP0::192.168.0.254::inst0::INSTR.
3. Right click TCPIP0::192.168.0.254::inst0::INSTR and open a VISA test panel.
4. Select the Basic I/O tab and execute the default *IDN? write within the viWrite tab buffer area.

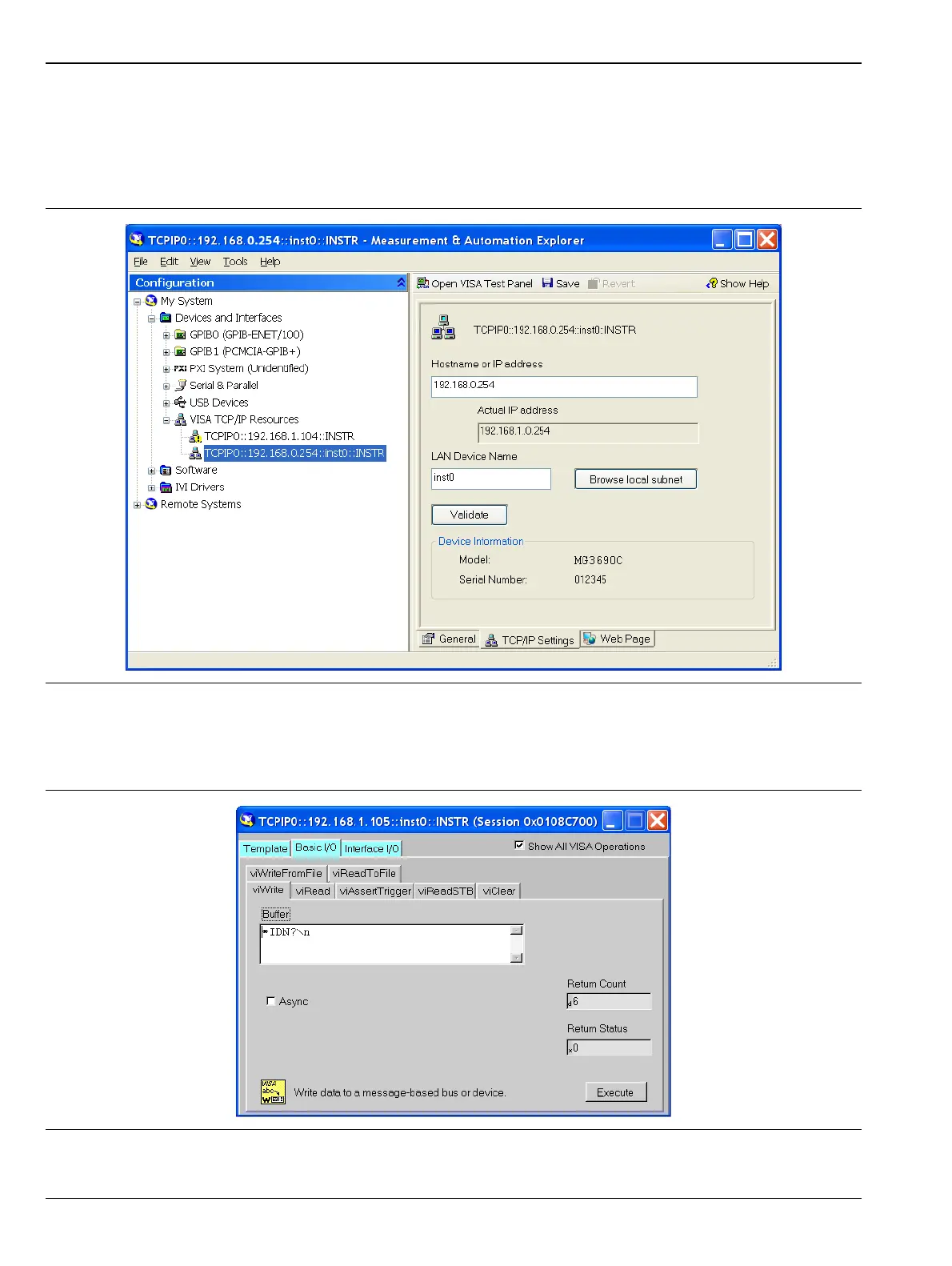

Figure 1-11. NI MAX TCP-IP Configuration
Figure 1-12. NI MAX TCP-IP Basic I/O Write
