Ethernet Setup - Static IP Configuration
The MG369xC ships with the Ethernet/GPIB Controller set to a default static IP address of 192.168.0.254. If
you want to set the address to something other than the default, you can use the Static Configuration or DHCP
with AutoIP configuration. This section provides steps for static configuration. Check with your network
administrator for any limitations on setting up a Static IP. Refer to “Ethernet Setup - DHCP with AutoIP
Configuration” on page 1-17 for configuring DHCP. For best results when configuring the Ethernet connection,
Anritsu recommends that you first connect the MG369xC directly to a PC using a crossover cable and then set
the TCP/IP settings.
To set up using STATIC TCP/IP configuration:
1. Connect a PC to the MG369xC using a CAT-7 Ethernet crossover cable.
2. Set the PC network adapter settings to match the subnet and subnet mask of the instrument, but with a
different static PC IP address than the instrument. The instrument factory default settings are:
Static IP Address: 192.168.0.254
Gateway: 0.0.0.0
Subnet Mask: 255.255.255.0
If the network settings are not known, refer to “Resetting Ethernet IP Address to Factory Default”
on page 1-24.
3. Open a web browser on the PC. Enter the instrument IP address and press Enter. The browser will
connect to the Ethernet/GPIB Controller and display the MG369x Welcome Page as shown in Figure 1-5.
4. Click the Go to Configuration Page button. The MG369x TCP/IP configuration page appears as shown in
Figure 1-6 on page 1-15.

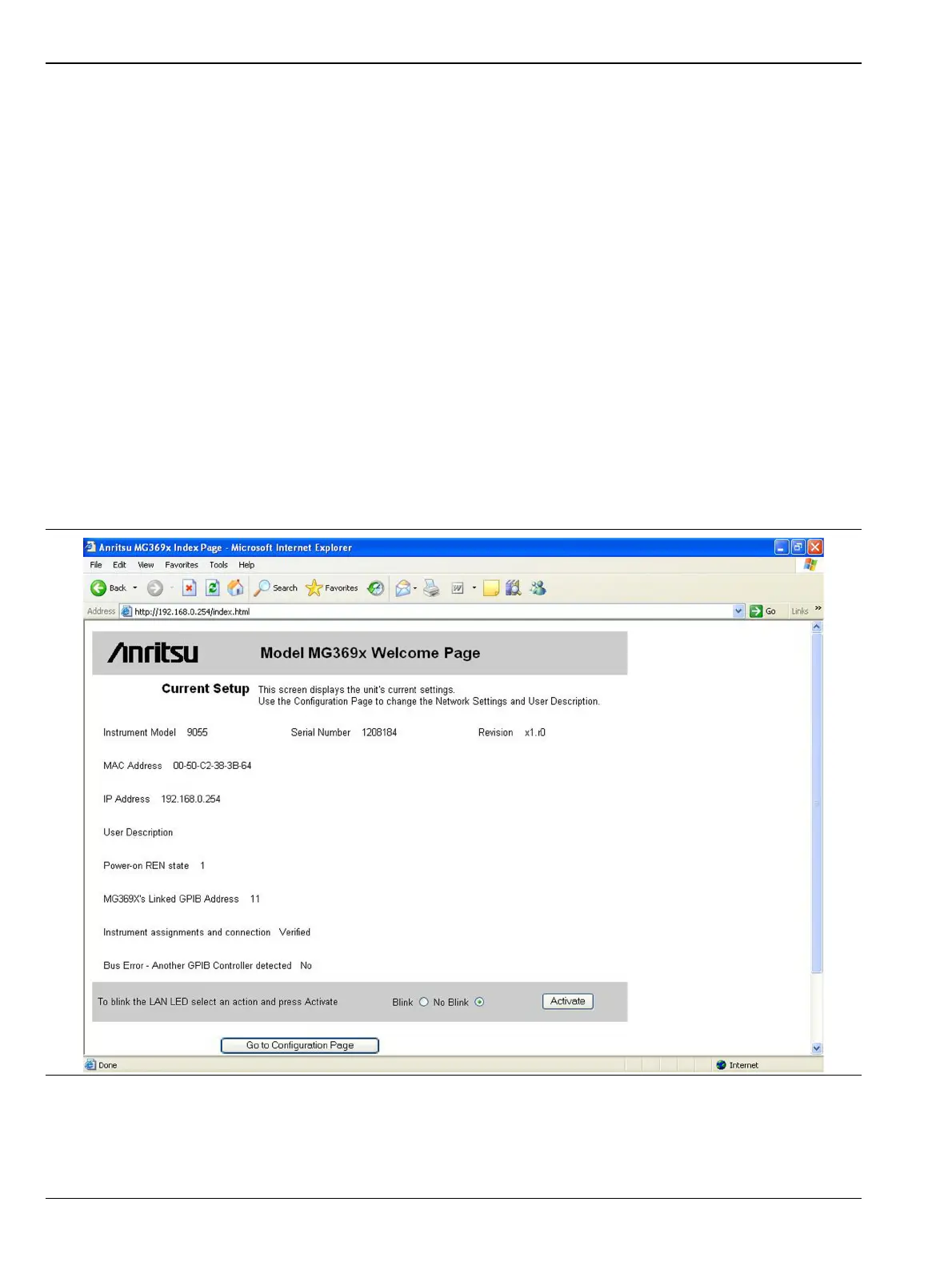

Figure 1-5. MG369xC Ethernet Device Welcome/Current Settings Page
