Anritsu Site Master S113B - Power on Procedure; Calibration Procedure

Power On Procedure
The Site Master is designed specifically for field environments and applications requiring
mobility. As such, it is a lightweight, handheld, battery operated unit which can be easily
carried to any location, and is capable of up to 2.5 hours of continuous operation from a
fully charged battery. Built-in energy conservation features allow battery life to be extended
over an eight-hour workday. The Site Master can also be powered by a 12.5 Vdc external
source. The external source can be either the Anritsu AC-DC Adapter (P/N 40-115) or 12.5
Vdc Automotive Cigarette Lighter Adapter (P/N 806-62) provided.
Step 1. Press the
ON/OFF key.
The Site Master takes about five seconds to perform a series of self-diagnostic
and adjustment routines. At completion, the screen displays the Anritsu logo, the
model number, and the version of firmware installed.
Step 2. Press
ENTER to continue, or wait for one minute.
The Site Master is now ready for operation.
Calibration Procedure
The following procedure provides the steps necessary to perform an Open-Short-Load
(OSL) calibration. Calibration is done with the maximum 517 data points and is valid for
130 and 259 data point settings. Refer to Figure 4-1 for setup.
Step 1. Press the
MODE key.
Step 2. Use the Up/Down arrow key to scroll to
FREQ - SWR or RETURN LOSS.
Step 3. Press the
ENTER key to select the SWR or Return Loss measurement mode.
4-2
Chapter 4 Measurements
HOLD
RUN
START
CAL
AUTO
SCALE
SAVE
SETUP
RECALL
SETUP
LIMIT
MARKER
SAVE
DISPLAY
RECALL
DISPLAY
PRINT
MODE
FREQ/DIST
AMPLITUDE
SWEEP
SYS
ENTER
CLEAR
ESCAPE
ON
OFF
/
1
2
4
5
6
7
8
9
0
3
+
-
.
Site Master S332B
OPEN
LOAD
SHORT
CALIBRATION
RFOUT/REFLECTION
TEST PORT
TEST PORT CABLE (OPTIONAL)

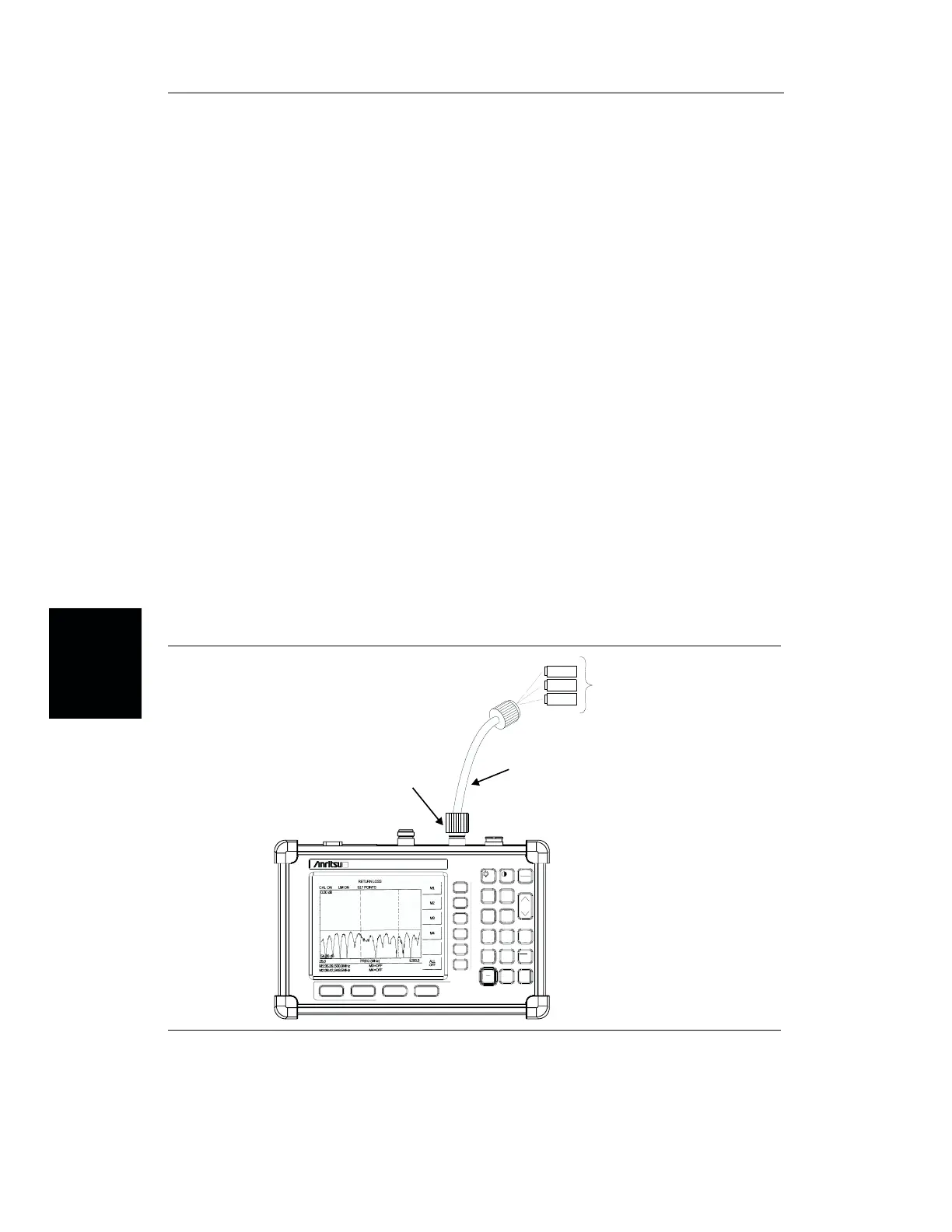

Figure 4-1. Calibration Setup
