22 IQ-636X-2/E Installation Manual — P/N 52853:K3 9/28/15
Installation Laying Out Equipment in Cabinet and Chassis

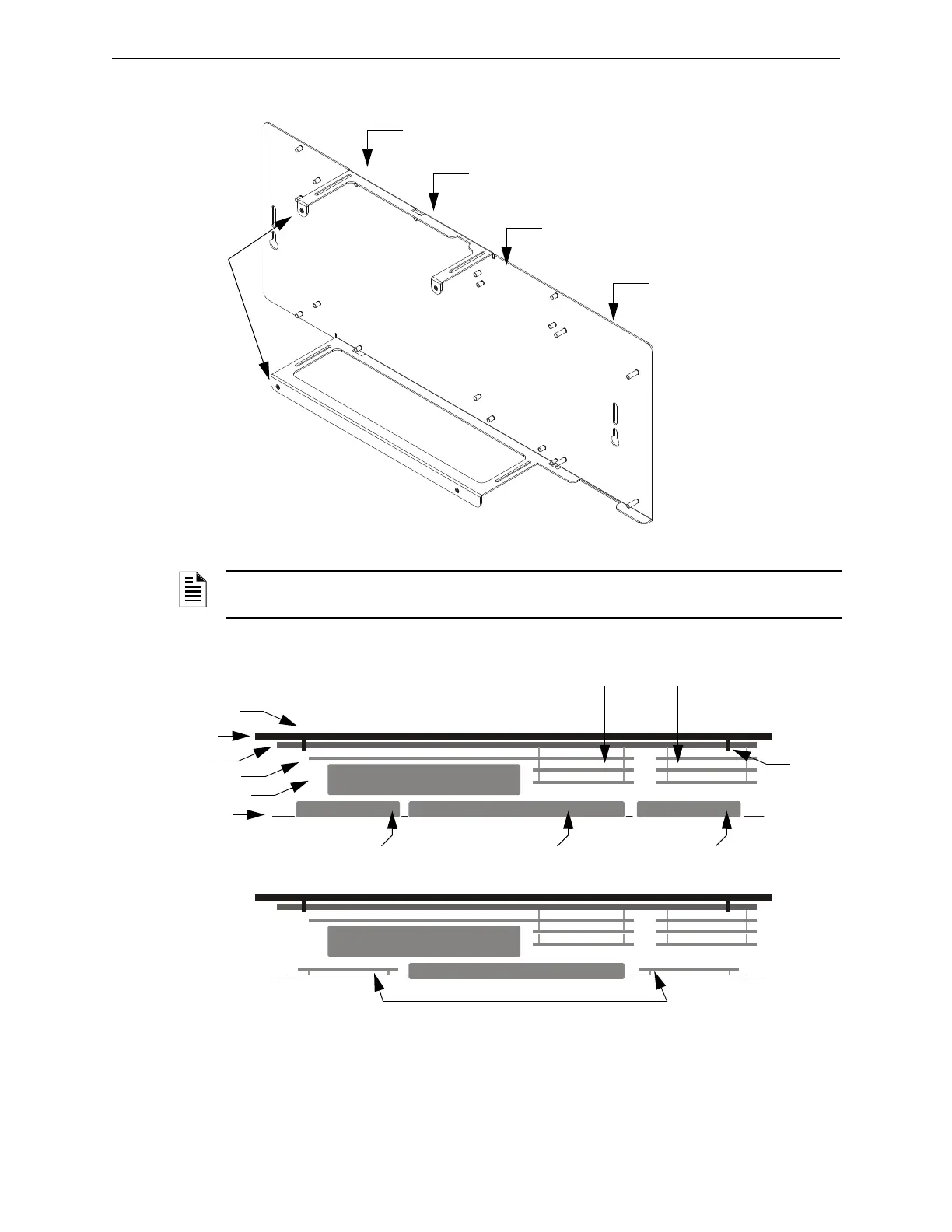

Figure 3.3 Top View of IQ-636X-2/E Chassis Mounting Options
CHS2-M2iso.wmf
Also see Figure 3.3, “Top View of
IQ-636X-2/E Chassis Mounting
Slot 1 (CPU, CPS-24, and
primary display)
Keypad/display
unit attaches to
chassis rails
Figure 3.2 Side View of the IQ-636X-2/E Chassis Mounting Options
NOTE: When designing the cabinet layout, consider separation of power-limited and non-power-
limited wiring as discussed in Section 3.11 “UL Power-limited Wiring Requirements”.
Slot 2 (CPU, CPS-24,
and primary display)
Slot 3 (Mounting location
for LEM-320) or other
option board
Slot 4 Mounting location for
option boards and other
compatible peripherals
CPU
CPS-24/E
DP-DISP2
(or ADP2-640
if in lower row)
Primary Display KDM-
R2 or AutoPulse-NCA-
2 (mounts to chassis)
Right Annunciator
(mounts to dress panel)
Up to two option boards
(Including LEM-320 if used)
Up to three option boards
(2 only if longer standoffs
are used)
Option boards
Mounted on BMP-1
CHS2-M2Top.wmf
Backbox
Chassis
Keyhole
Keyhole
Left Annunciator
(mounts to dress panel)
