50 IQ-636X-2/E Installation Manual — P/N 52853:K3 9/28/15
Applications Releasing Applications

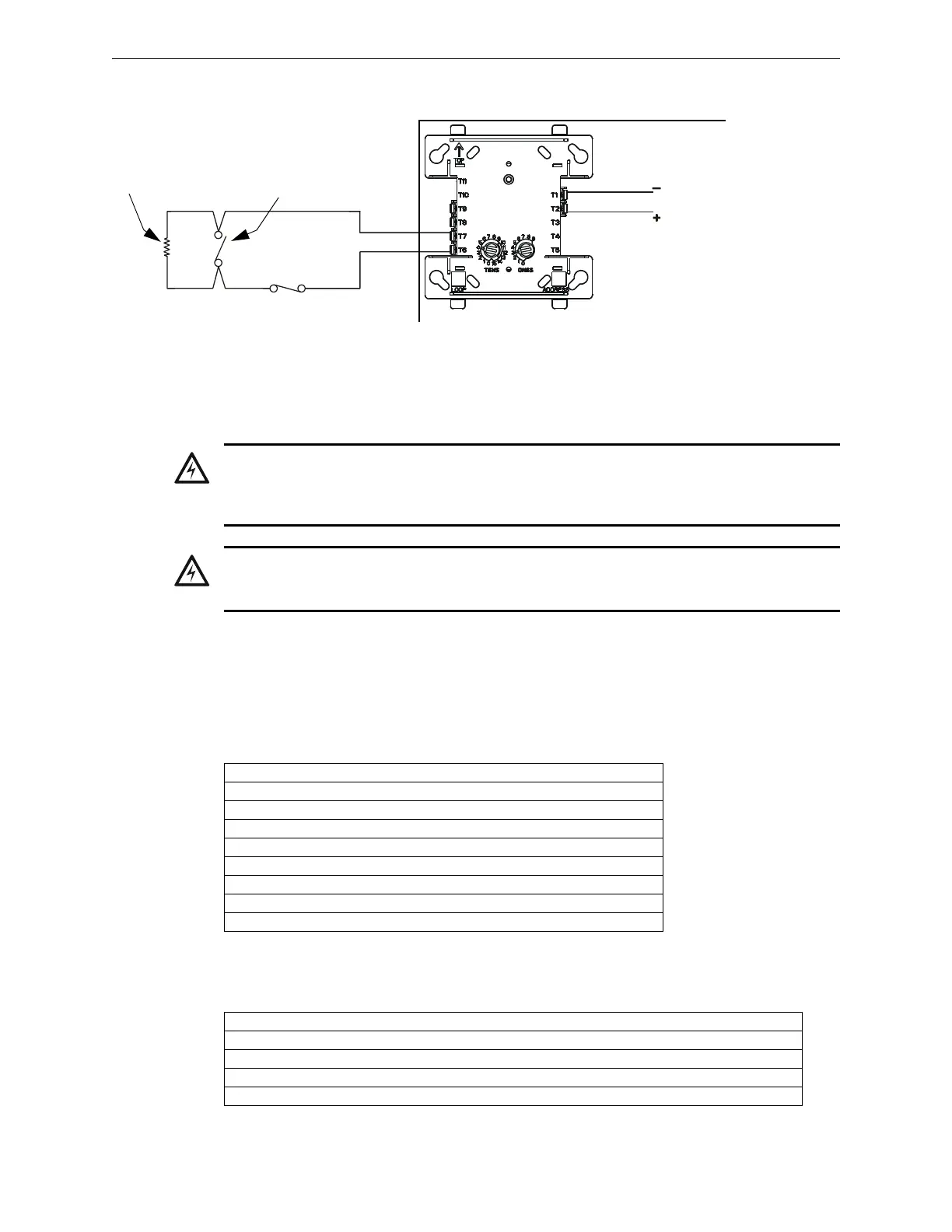

Figure 4.6 Wiring Diagram for Proprietary Security Alarm Applications
4.7 Releasing Applications
4.7.1 Overview
This control panel can be used for agent release or preaction/deluge control applications. In a
properly configured system with compatible, listed actuating and initiating devices, this control
panel complies with the following NFPA standards for installation in accordance with the
acceptable standard:
To locate your specific releasing applications, including type codes and wiring diagrams, see the
checklist in Table 4.2:
FlashScan Monitor Module
UL-listed, normally-closed
security switch
UL-listed,
normally-open
security switch
SLC
Channel
A or B
IQ-636X-2/E Protected Premises Unit
CPU2-640-burgtpH.wmf
UL-listed 47K
End-of-Line Resistor
(provided with module)
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual appendix, which
contains wiring conversion
charts for type V and type
H modules.
!
WARNING:
When used for CO
2
releasing applications, observe proper precautions as stated in NFPA 12.
Do not enter the protected space unless physical lockout and other safety procedures are fully
completed. Do not use software disable functions in the panel as lockout.
!
WARNING:
Do not enable the BACKUP option switch for any of the four Notification Appliance Circuits (NACs) if
they are used for releasing functions!
Standard Covers
NFPA 12 CO
2
Extinguishing Systems
NFPA 12A Halon 1301 Extinguishing Systems
NFPA 13 Sprinkler Systems
NFPA 15 Water Spray Systems
NFPA 16 Foam-Water Deluge and Foam-water Spray Systems
NFPA 17 Dry Chemical Extinguishing Systems
NFPA 17A Wet Chemical Extinguishing Systems
NFPA 2001 Clean Agent Fire Extinguishing Systems
Table 4.1 NFPA Standards for Releasing Applications
Refer to
Section 4.7.2 “Programming”
Section 4.7.3 “Connecting a Releasing Device to the Control Panel”.
Section 4.7.4 “Connecting a Releasing Device to the FCM-1 Module”.
Section 4.7.6 “Connecting an NBG-12LRA Agent Release-Abort Station”.
Table 4.2 Locating Specific Releasing Application Details in This Manual
