30 IQ-636X-2/E Installation Manual — P/N 52853:K3 9/28/15
Installation Connecting the Power Cables
3.7 Connecting the Power Cables
3.7.1 Overview
Complete all mounting procedures and check all wiring before applying power. Electrical
connections include the following:
Primary AC power source – 120 VAC, 50/60 Hz, 5.0 A (with IQ-636X-2E use 240 VAC,
50/60 Hz, 2.5 A) from line voltage source. Overcurrent protection for this circuit must comply
with Article 760 of the National Electrical Code (NEC) and/or local codes. Use 12 AWG (3.31
mm
2
) wire (maximum) with a 600-volt rating.
Secondary power source – 24 VDC from batteries, installed in the control panel (or in an
optional battery cabinet). Secondary (battery) power is required to support the system during
loss of primary power.
IQ636X-CPU2
Stacker-connector
LEM-320
J1
J4
The long-pin end
plugs into the back
of the LEM board.
The short-pin end plugs
directly into the top of the
IQ636X-CPU2 plug.

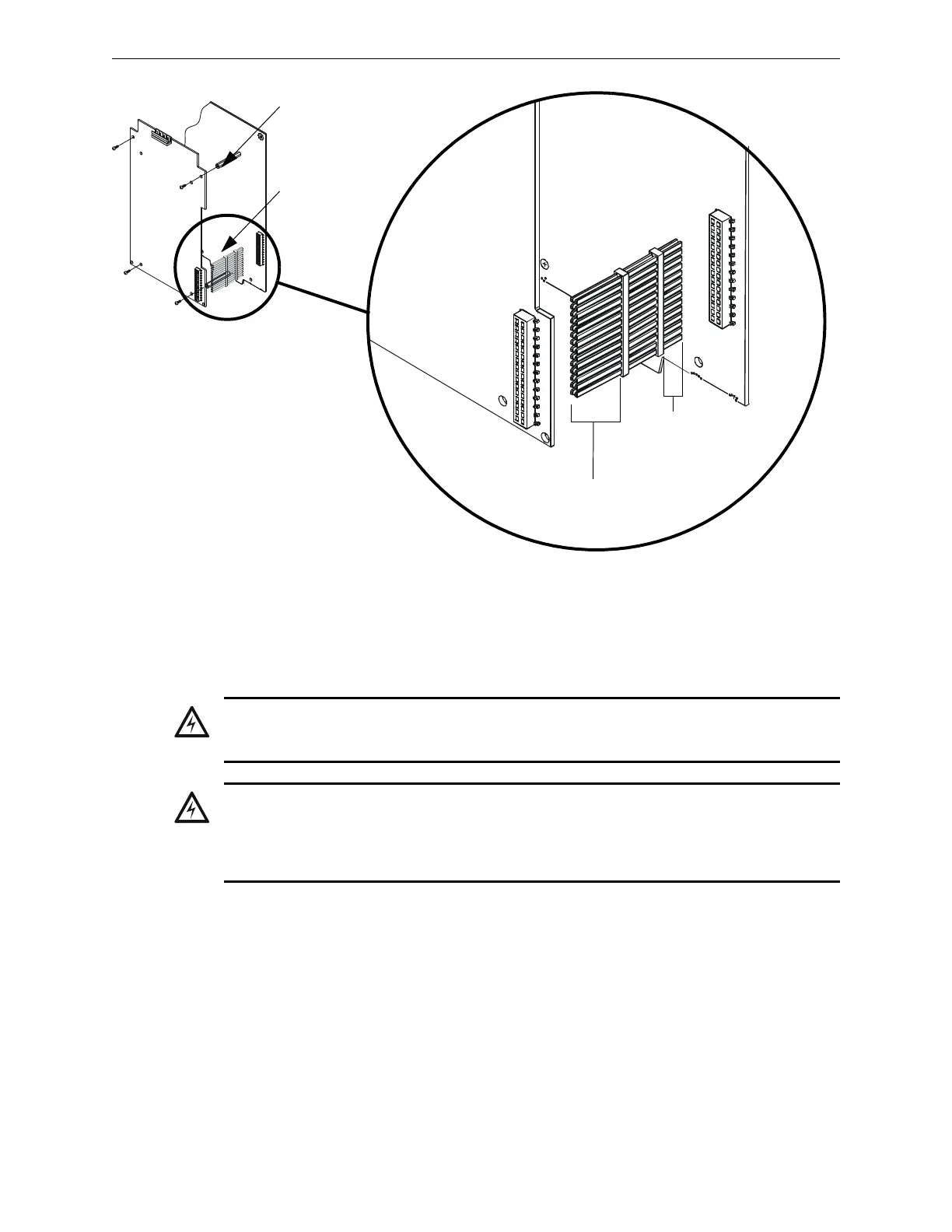

Figure 3.12 Mounting LEM-320 with the Stacker-connector
1 inch standoffs
!
WARNING:
Remove all power sources to equipment while connecting electrical components. Leave the
external, main power breaker OFF until installation of the entire system is complete.
!
WARNING:
Several sources of power can be connected to the control panel. Before servicing the control panel,
disconnect all sources of input power including the battery. While energized, the control panel and
associated equipment can be damaged by removing and/or inserting cards, modules, or
interconnecting cables.
