IQ-636X-2/E Installation Manual — P/N 52853:K3 9/28/15 39
Installing Remote Printers and/or CRT Installation
3.13.3 Installing and Configuring a Keltron Printer
Connect the remote printer to the Control Panel as follows:
1. Connect the three (3) open leads of the custom cable to the TB12 terminal block on the control
panel as shown in Figure 3.24.
2. Connect DC power from TB10 terminal block on the control panel as shown in Figure 3.24.
3. Plug the DB-25 connector end of the custom cable into the EIA-232 port of the Keltron printer.
Tighten securely.
Setting up the Keltron Printer
Set up a Keltron printer as follows:
1. The printer communicates using the following protocol:
• Baud Rate: 9600 • Parity: Even • Data bits: 7
2. Set the printer DIP switches SP1 and SP2 according to settings in Table 3.7.
Option Setting Option Setting
Font
LPI
ESC Character
Bidirectional Copy
HS Draft
6 LPI
ESC
ON
CPI
Skip
Emulate
I/O
Buffer
Serial
Baud
Format
Protocol
Character Set
Sl.Zero
Auto LF
PAPER
BIN 1
BIN 2
SINGLE
PUSH TRA
PULL TRA
PAP ROLL
10 CPI
0.5
Epson FX-850 PRN-6, LQ-2550 PRN-7
40K PRN-6, 64K PRN-7
9600, 4800, or 2400
7 Bit, Even, 1 Stop
XON/XOFF
Standard
On
Off
12/72"
12/72"
12/72"
12/72"
12/72"
12/72"
CG-TAB
Country
Auto CR
Graphic
E-US ASCII
OFF
Color Option
Formlen
Lines
Standard
Not Installed
6LPI=60
Exec 10.5” PRN-6, 11” PRN-7
Table 3.6 PRN Setup Options
CPU2-640-keltron.wmf
Keltron printer
DB-25 connector
(female socket shown)
Keltron printer
24 VDC connections
(14 AWG, 2.08 mm
2
)
Control
Panel
Terminate one end of
shield at backbox

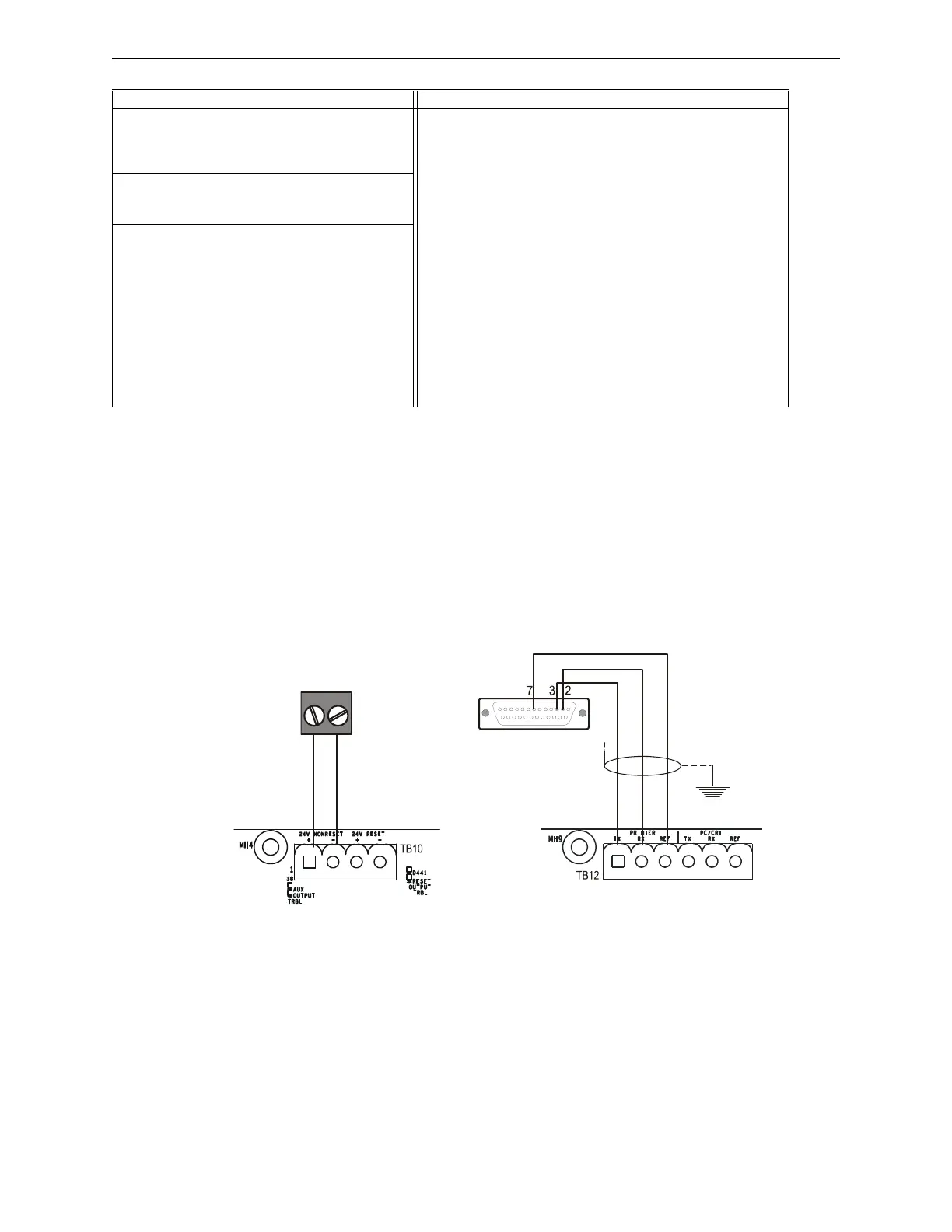

Figure 3.24 Keltron Printer Connections
Control
Panel
