Control Panel Views
The three Control Panel views - 'Monitors & Headphones', SPDIF Outs', USB 1 I/O and USB 2
I/O' - contain input selectors, Synergy Core FX chains, mixer controls, volume controls, and
peak meters for the Zen Quadro Synergy Core's analog and digital audio outputs.
The majority of your Control Panel application activity is going to happen here. Thus, we
encourage you to read this sub-chapter thoroughly.

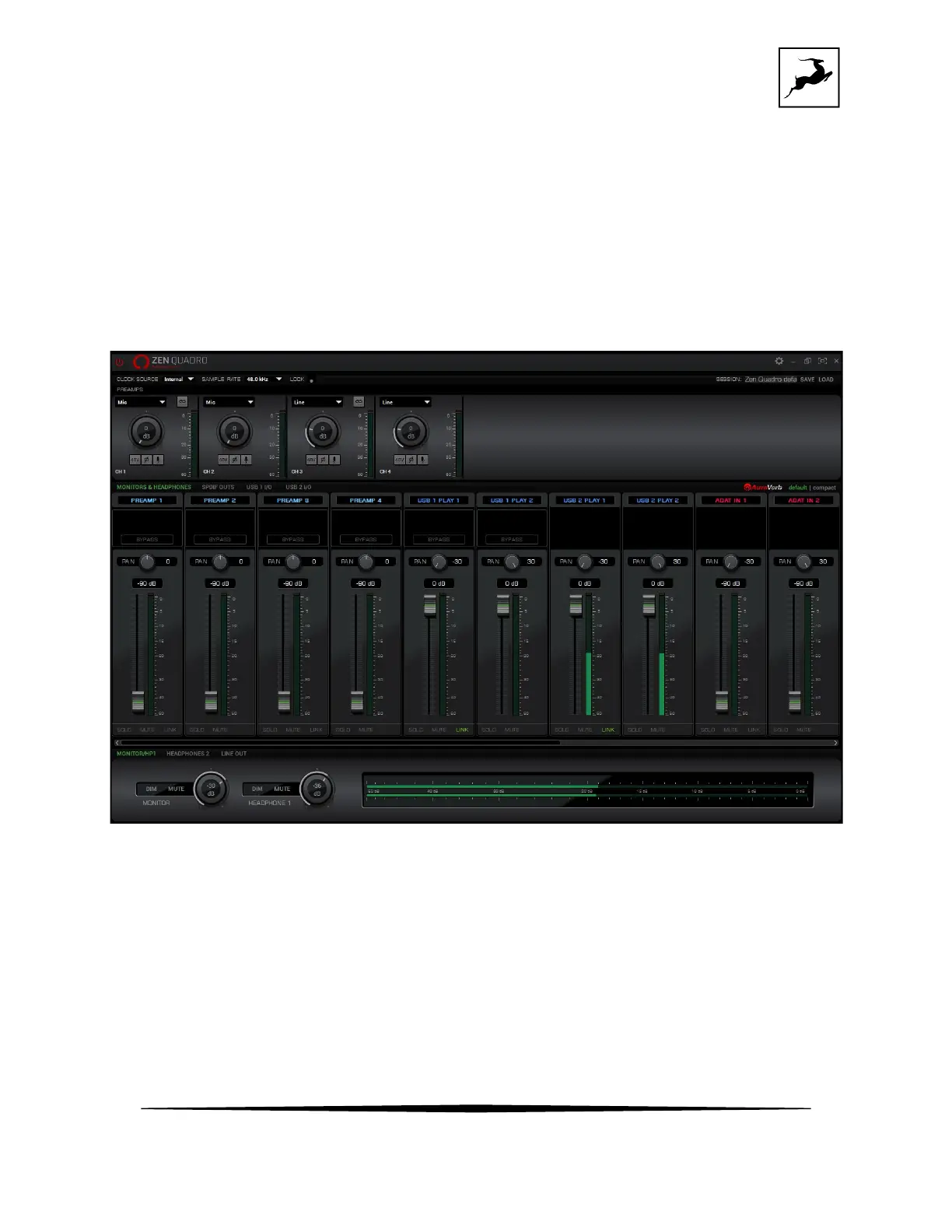

Monitors & Headphones view
The 'Monitors & Headphones' view contains three separate 16-channel virtual mixers. The first
is routed to the Zen Quadro Synergy Core's Monitor and Headphone 1 (HP1) outputs and is
accessed from the 'Monitor/HP1' tab on the bottom left.
The second mixer is routed to the secondary headphone output (HP2) and is accessed from
