Antelope ZEN QUADRO - USB 1 I;O View

Antelope Audio Zen Quadro Synergy Core User Manual
Page 53

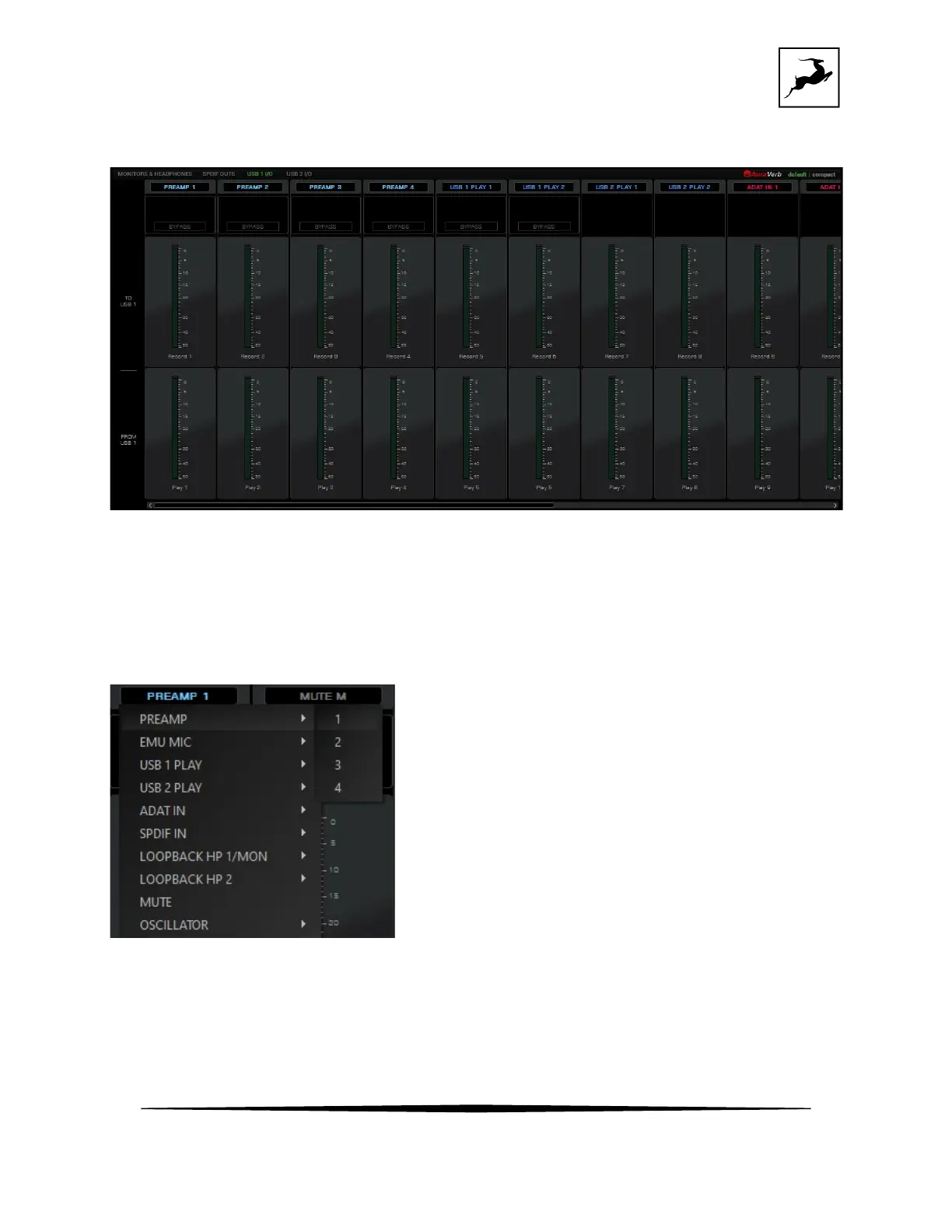

USB 1 I/O view
USB 1 I/O' view provides an overview of audio going in to and out of your computer audio,
connected to the primary USB 1 port, most often related to your DAW I/O.
You can change the signal going to Record channels 1-16 from the dropdown menu on each
channel. This signal will correspond to the signal going into your DAW inputs 1-16.
The inputs and Synergy Core FX assigned to Channels 1 - 6 of the virtual mixers in 'Monitors &
Headphones' view are routed to Inputs 1 - 6 in your DAW.
