Antelope Audio Zen Quadro Synergy Core User Manual
Page 52

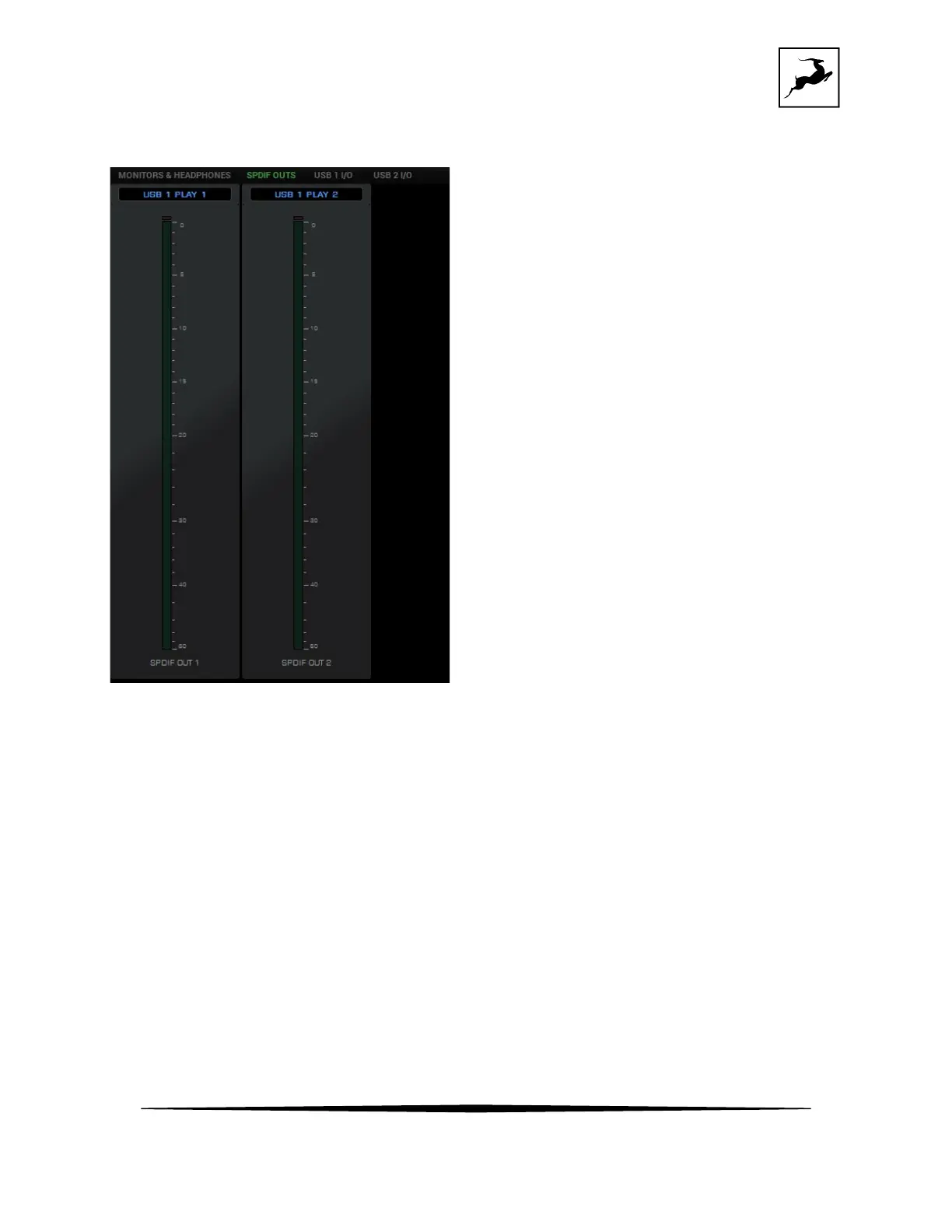

SPDIF OUTS view
Contains the following:
• Input selectors for digital output channels 'S/PDIF 1' and 'S/PDIF 2'. Click to choose
the audio source signal you want to send to the Zen Quadro Synergy Core's S/PDIF
digital audio outputs.
• Peak meters visualizing the output signal strength. Note the lack of output volume
controls. That's because volume control is not a feature of digital audio transmission
protocols like AES/EBU, S/PDIF and ADAT. Thus, if the digital output signal is too
weak or too strong, you have to make volume/gain adjustments at the input stage.
