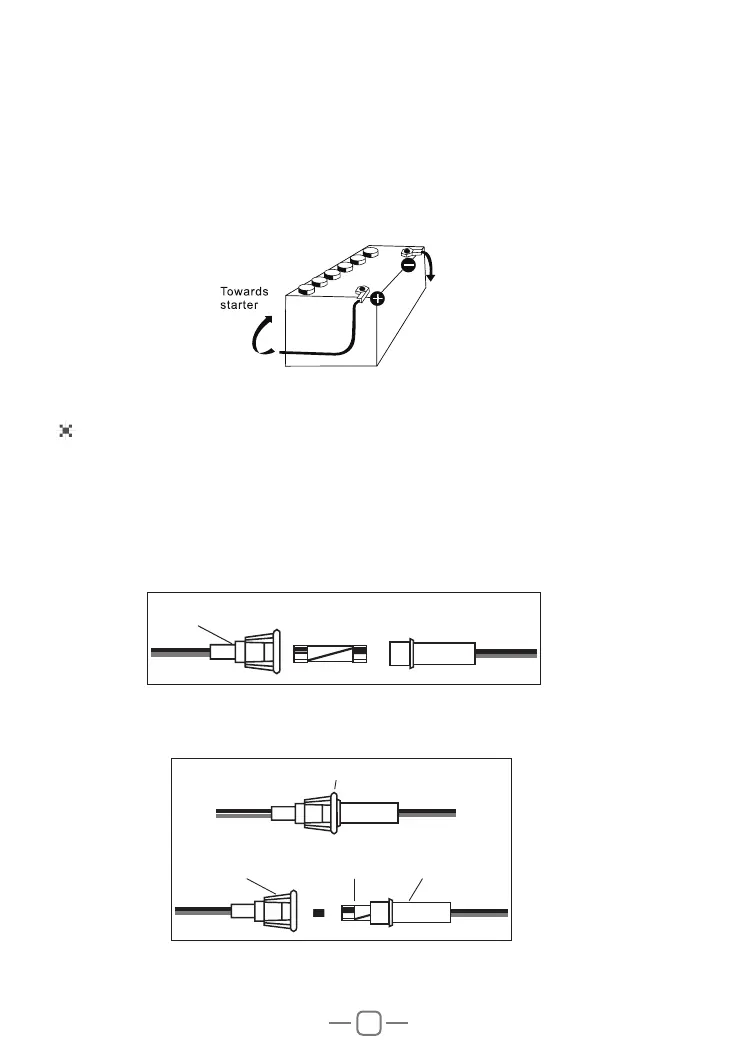

Connect positive red power cable with the + terminal of the battery.1.
Connect negative black power cable with the - terminal of the battery.2.
Connect the DC power cable to the transceiver's power supply connector.3.
▲ We suggest not use cigar lighter as it often bring down the voltage.
▲ Locate the power cable away from high temperature, moisture, portre and cable
insulator.
▲ Use a full power cable even it is longer than need, do not take off the fuse holder
from the cable.
Connected
to chassis
Replacing Fuse
This radio adopt 10A, 250V fuse.
If the fuse blows, determine the reason, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses continue to
blow, disconnect the power cable and contact your autho-rized dealer or an authorized
servicecenter:
Pull the two fuse cover in difference direction and open it.1.
,
IN-LINE
FUSE HOLDER
Replace the broke fuse with good one, and close the fuse holder.2.
Be sure to use suggested fuse, or it might damage the radio.3.
FUSE
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
10A 250V FUSE
